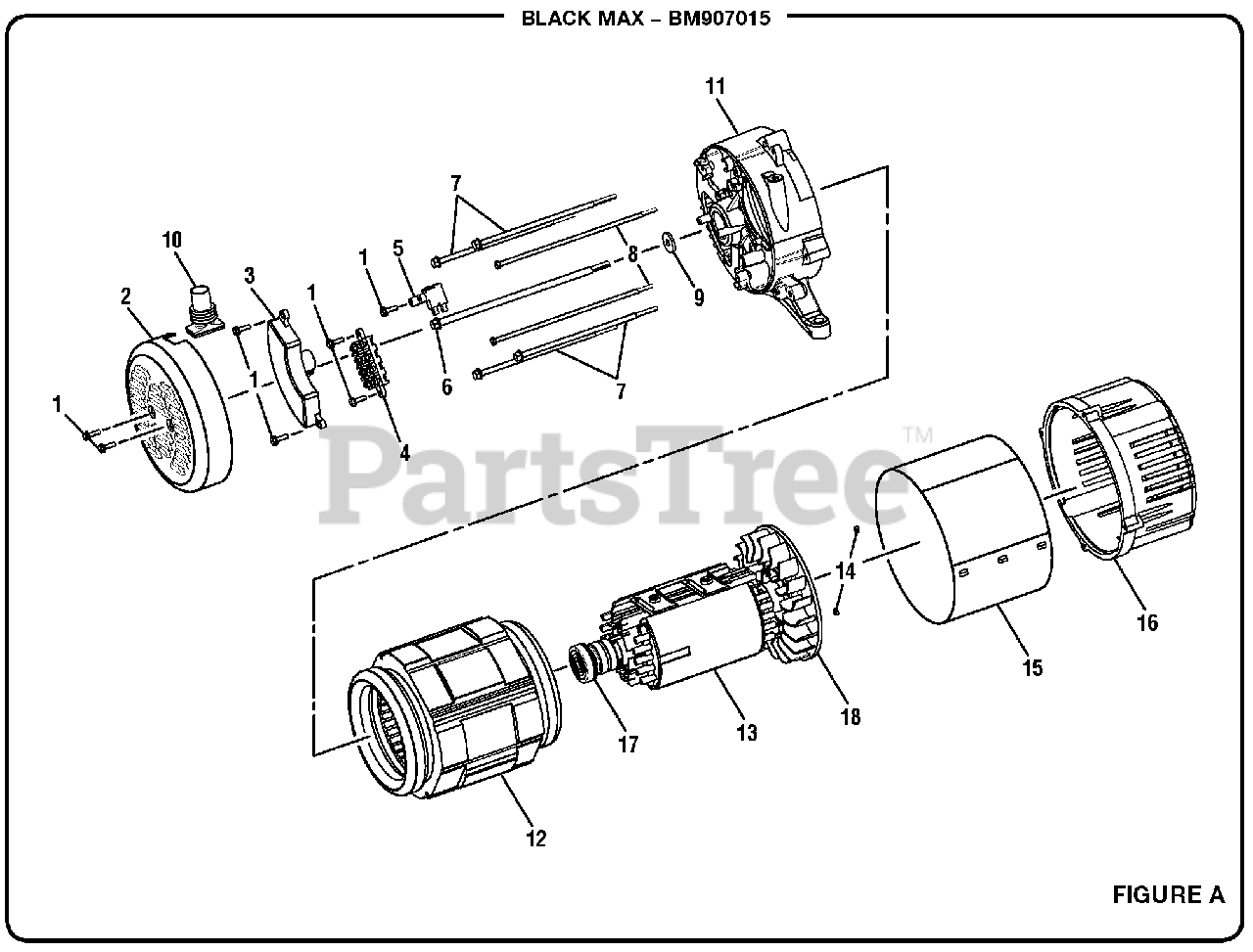

BM 907015 (090930287) - Black Max 7000 Watt Generator, Rev 04 (2018-03) Figure A Parts Diagram

7000 Watt Generator, Rev 04

Figure A Parts Diagram

  • Title

1

Homelite 660938033

Bolt (M5 x 17 mm, Hex Hd.)
(Superseded to 660938012)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 290440005

Automatic Voltage Regulator
(Superseded to 290440008)

$

$

Not available

4

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly

$

$

Not available

6

Homelite 661603030

Bolt (5/16-24 x 235 mm, Hex Washer Hd.)

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 660938031

Bolt (M6 x 188 mm, Hex Washer Hd.)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 661603031

Bolt (M5 x 170 mm, Hex Washer Hd.)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 638623002

Washer (OD28 x ID10 x 3t)

$

$

Not available

10

Homelite 570766002

Rubber Boot

$

$

Not available

11

Homelite 678865003

Bearing Housing

$

$

Not available

12

Homelite 310772049

Stator Assembly

$

$

Not available

13

Homelite 310771048

Rotor Assembly

$

$

Not available

14

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 640331005

Generator Head Cover

$

$

Not available

16

Homelite 640331005

Adaptor Housing

$

$

Not available

17

Homelite 681963001

Ball Bearing

$17.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan

$

$

Not available
