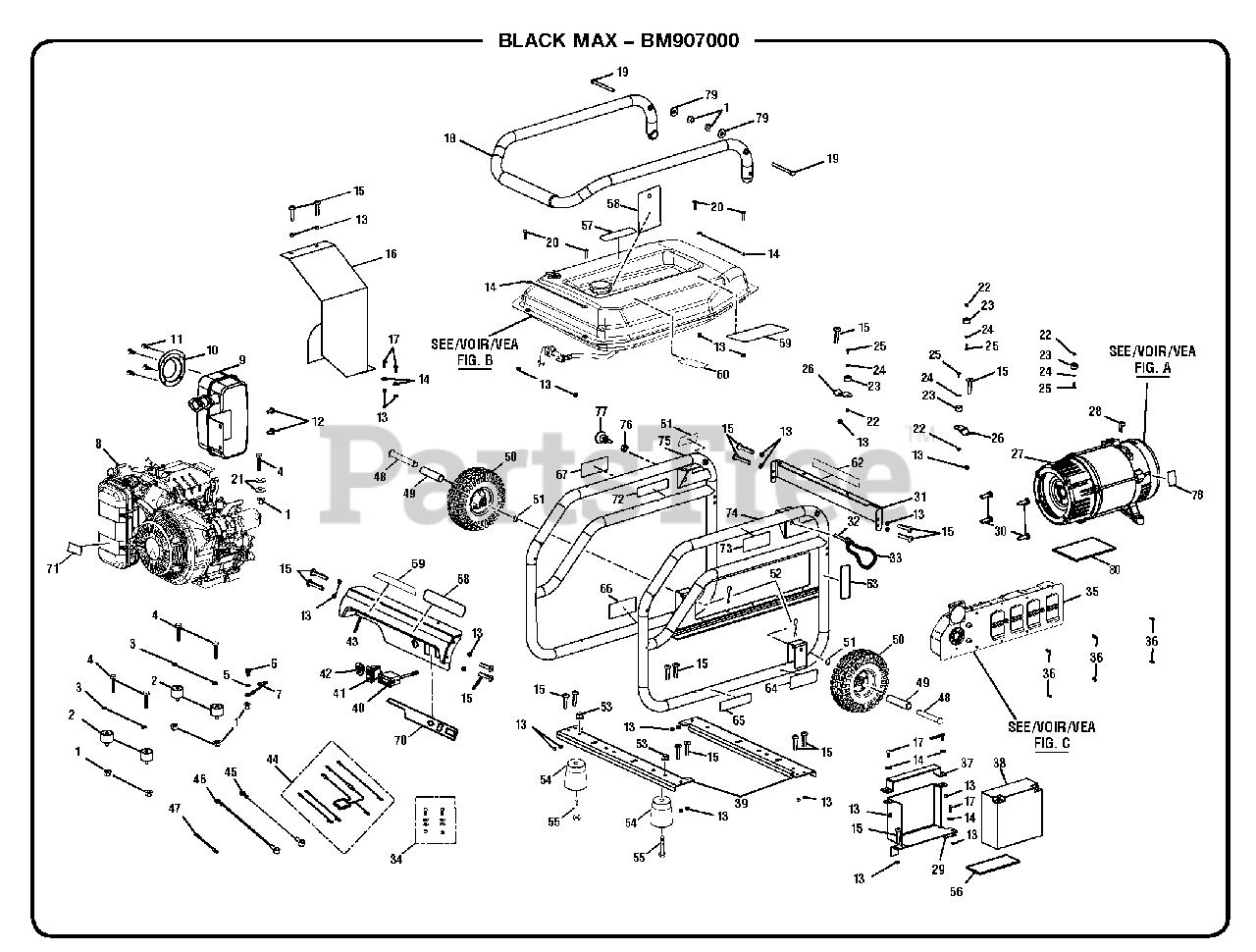

BM 907000 B (090930270) - Black Max 7000 Watt Generator General Assembly Parts Diagram

7000 Watt Generator

General Assembly Parts Diagram

  • Title
1

Homelite 678774012

Lock Nut (M8 x 1.25 in.)

$1.99

$

In Stock, only 2 left!

0

2

$

$

Not available

3

Homelite 673155001

Washer (M8)

$2.99

$

In Stock, only 1 left!

0

4

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660973016

Bolt (M8 x 15 mm)

$

$

Not available

7

Homelite 290404001

Ground Wire Assembly

$

$

Not available

8

Engine (Honda GX 390)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

9

$

$

Not available

10

Homelite 638147003

Spark Arrestor

$

$

Not available

11

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 660599002

Bolt (5/16-24 x 0.6 in.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 678460009

Lock Nut (M6)

$

$

Not available

14

Homelite 673154002

Washer (M6)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 660224010

Screw (M6 x 50 mm, Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 638497028

Heat Shield

$

$

Currently unavailable

17

Homelite 661505030

Bolt (M6 x 16 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 310224044

Handle Assembly

$

$

Not available

19

Homelite 661851004

Handle Pivot Bolt (M8 x 98 mm, Flat Hd.)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 661834005

Bolt (M6 x 25 mm, Torx Hd. T30)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 638675001

Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

22

$

$

Not available

23

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 673156001

Washer (M4)

$

$

Not available

25

Homelite 661850001

Screw (M4 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 678285005

Handle Rest Tab

$

$

Currently unavailable

27

Homelite 310227001

Generator Head w/AVR

$

$

Not available

28

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 678714011

Battery Tray

$

$

Not available

30

Homelite 660596002

Bolt (3/8-16 x 1 in.)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 638960005

Fuel Tank Support (Back)

$

$

Not available

32

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

33

$

$

Not available

34

Homelite 120302012

Fastener Kit (Wiring)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 290403069

Control Panel Assembly

$237.99

$

Usually ships in 3-7 days

0

36

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

37

Homelite 308681002

Battery Bracket

$

$

Not available

38

Homelite 750400001

Battery
(Superseded to 750400009)

$186.99

$

Usually ships in 3-7 days

0

39

Homelite 638735028

Frame Crossbar

$22.99

$

Usually ships in 3-7 days

0

40

Homelite 290492001

Hour Meter

$39.99

$

In Stock, only 2 left!

0

41

Homelite 270290008

Engine Switch

$

$

Not available

42

Homelite 519813017

Fuel Valve

$3.49

$

In Stock, only 4 left!

0

43

Homelite 638959005

Fuel Tank Support (Front)

$30.99

$

Usually ships in 3-7 days

0

44

Homelite 290435009

Wiring Harness

$13.99

$

Usually ships in 3-7 days

0

45

Homelite 290419004

Battery Cable (Black)

$8.99

$

Usually ships in 3-7 days

0

46

Homelite 290418004

Battery Cable (Red)

$8.49

$

Usually ships in 3-7 days

0

47

Homelite 290455001

Bonding Wire

$2.49

$

Usually ships in 3-7 days

0

$

$

Not available

49

$3.49

$

In Stock, only 3 left!

0

$

$

Not available

51

Homelite 638422004

Washer (M10)

$

$

Not available

52

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 678774004

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, only 4 left!

0

54

Homelite 562856010

Rubber Foot

$

$

Not available

55

Homelite 661836007

Bolt (M8 x 45 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

56

$

$

Not available

57

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940971086

Warning Hangtag

$

$

Currently unavailable

59

Homelite 940654255

Danger Label

$6.49

$

Usually ships in 3-7 days

0

60

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

61

Homelite 940758020

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 940513013

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 940514008

Lock Pin Label

$5.49

$

Usually ships in 3-7 days

0

64

Homelite 941486006

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 940947006

Combustion Label

$2.99

$

Usually ships in 3-7 days

0

67

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 940705185

Logo Label

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 940608012

Black Max Label

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940734118

Start Label

$3.49

$

Usually ships in 3-7 days

0

71

Homelite 940617105

Electric Start Label

$2.99

$

Usually ships in 3-7 days

0

72

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

73

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

74

Homelite 308581044

Frame (Right)

$

$

Not available

75

Homelite 308581045

Frame (Left)

$

$

Not available

76

Homelite 678518002

Hex Jam Nut (1/2-20)

$4.99

$

Usually ships in 3-7 days

0

77

Homelite 308910010

Handle Release Pin

$

$

Not available

78

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

79

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

80

Homelite 560878003

Rubber Sheet

Note: Not Shown

$

$

Not available

Homelite 120302014

Hardware Kit

Note: (Inc. Key Nos. 48 and 51-55)

$31.99

$

Usually ships in 3-7 days

0

Homelite 930717003

Zip Tie (5-1/2 in.)

$2.49

$

Usually ships in 3-7 days

0

Homelite 991000373

Operator's Manual

$

$

Currently unavailable

Homelite 991000374

Quick Reference Guide

$

$

Currently unavailable
