BM 907000 B (090930265) - Black Max 7000 Watt Generator Figure C Parts Diagram

7000 Watt Generator

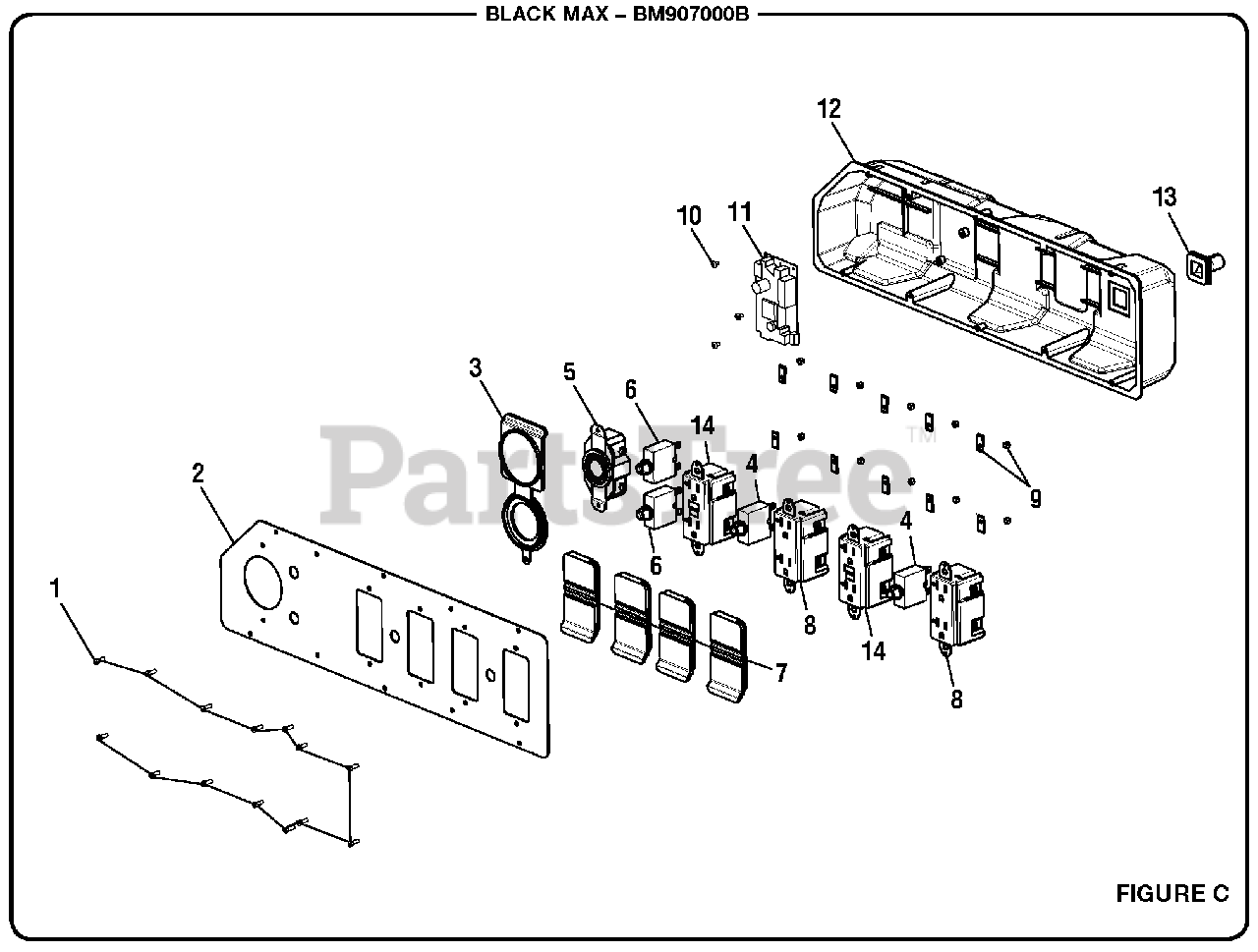

Figure C Parts Diagram

  • Title

1

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

2

Homelite 638496037

Faceplate

$33.99

$

Usually ships in 3-7 days

0

3

Homelite 570412005

Twist Lock Receptacle Cover

$

$

Not available

4

Homelite 780350007

Circuit Breaker (20A)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 290401001

120/240V Receptacle (30A)

$25.99

$

In Stock, only 1 left!

0

6

Homelite 780351012

Circuit Breaker (30A)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite 570412002

120V Duplex Receptacle Cover

$

$

Not available

8

Homelite 290400006

120V Duplex Receptacle

$

$

Not available

9

Homelite 678720001

Lock Nut (6-32, Hex Hd.)

$1.49

$

In Stock, only 4 left!

0

Homelite 678824001

U-Clip

$1.49

$

In Stock, Qty 6

0

10

Homelite 660923015

Screw (M3 x 5 mm)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 140173029

Battery Charger

$48.99

$

Usually ships in 3-7 days

0

12

Homelite 519707010

Control Box

$35.99

$

Usually ships in 3-7 days

0

13

Homelite 570766003

Rubber Wire Protector

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 290400010

120V GFCI Duplex Receptacle
(Superseded to 290400024)

$126.99

$

In Stock, only 2 left!

0
