BM 907000 B (090930265) - Black Max 7000 Watt Generator, Rev 03 (2018-10) Figure B Parts Diagram

7000 Watt Generator, Rev 03

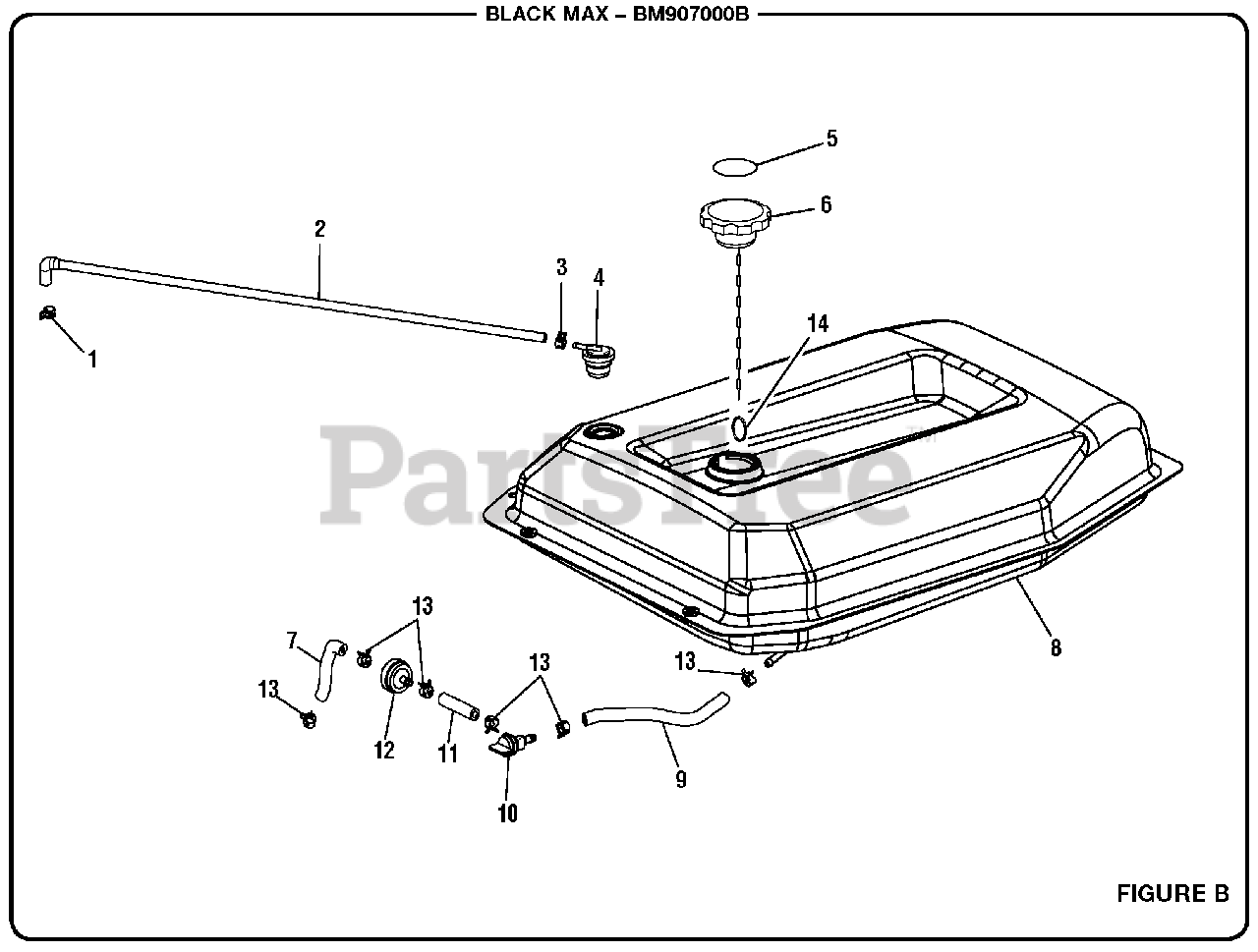

Figure B Parts Diagram

  • Title

1

Homelite 678408014

Fuel Line Clamp (10.3 mm)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 570358105

Vapor Hose (590 mm and 30 mm)

$5.49

$

Usually ships in 3-7 days

0

3

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 310854002

Vapor Vent

$

$

Not available

5

Homelite 940872011

Fuel Stabilizer Label

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 310720026

Fuel Cap

$40.99

$

Usually ships in 3-7 days

0

7

Homelite 570358104

Fuel Hose (185 mm)

$7.99

$

Usually ships in 3-7 days

0

8

Homelite 310711125

Fuel Tank

$

$

Not available

9

Homelite 570358093

Fuel Hose (175 mm)

$

$

Not available

10

Homelite 308459002

Fuel Valve

$32.99

$

Usually ships in 3-7 days

0

11

Homelite 570358056

Fuel Hose (55 mm)

$2.49

$

In Stock, Qty 5

0

12

Homelite 308733008

Fuel Filter

$7.49

$

In Stock, only 3 left!

0

13

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$3.49

$

In Stock, only 1 left!

0

14

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0
