BM 907000 A (990000507) - Black Max 7000 Watt Generator Figure A Parts Diagram

7000 Watt Generator

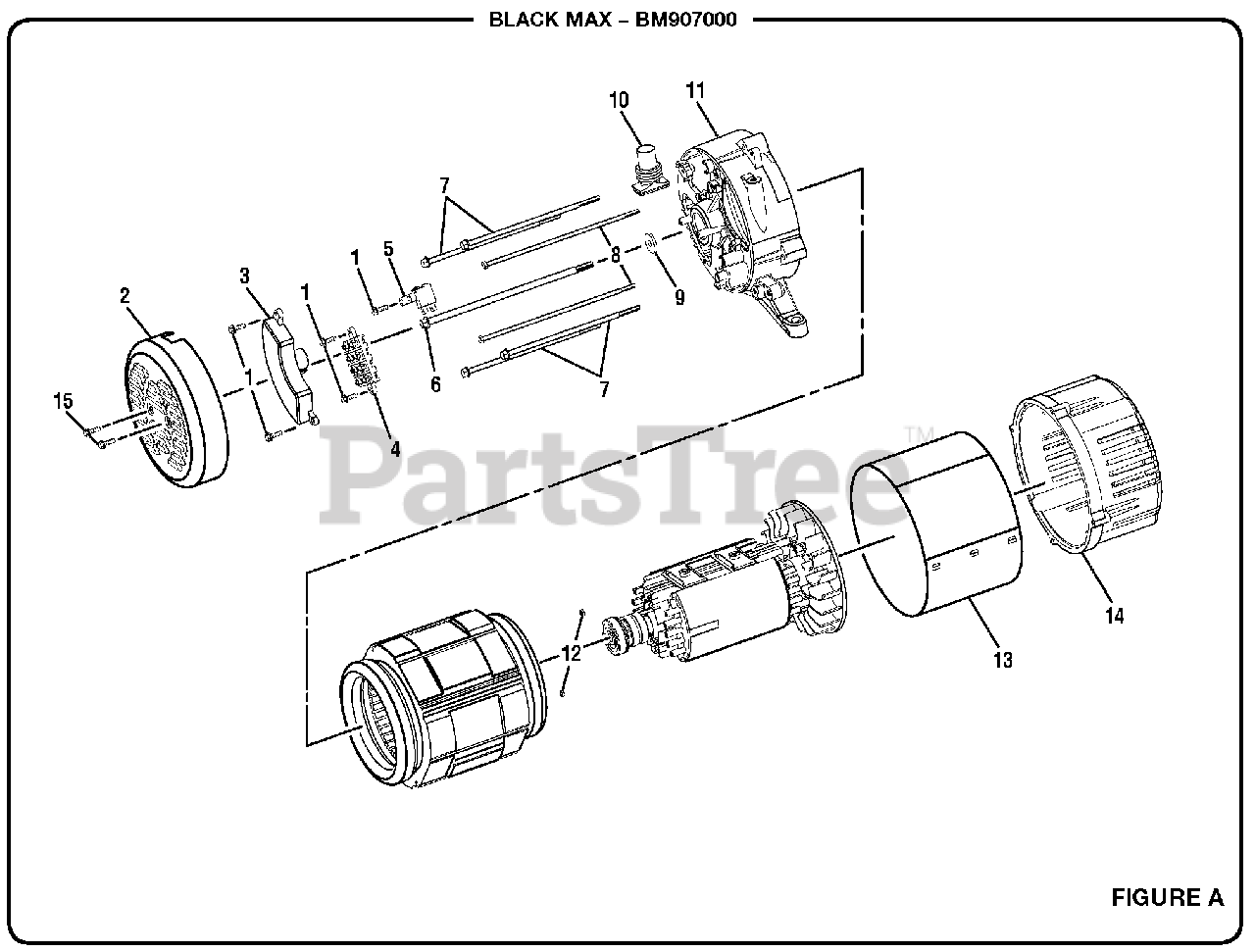

Figure A Parts Diagram

  • Title

1

Homelite 660938012

Bolt (M5 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

4

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly

$

$

Not available

6

Homelite 661603021

Bolt (5/16-24 x 235 mm, Hex Washer Hd.)

$8.49

$

Usually ships in 3-7 days

0

7

Homelite 661603020

Bolt (M6 x 188 mm, Hex Washer Hd.)

$

$

Not available

8

Homelite 660938032

Bolt (M5 x 210 mm, Hex Washer Hd.)

$

$

Not available

9

Homelite 638623002

Washer (8 x 26 x 3t)

$

$

Not available

10

Homelite 570766004

Rubber Boot

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 678865003

Bearing Housing

$

$

Not available

12

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 638624016

Generator Head Cover

$9.49

$

Usually ships in 3-7 days

0

14

Homelite 640331005

Adaptor Housing

$

$

Not available

15

Homelite 660938011

Bolt (M5 x 12 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0
