BM 907000 (990000507) - Black Max 7000 Watt Generator Figure C Parts Diagram

7000 Watt Generator

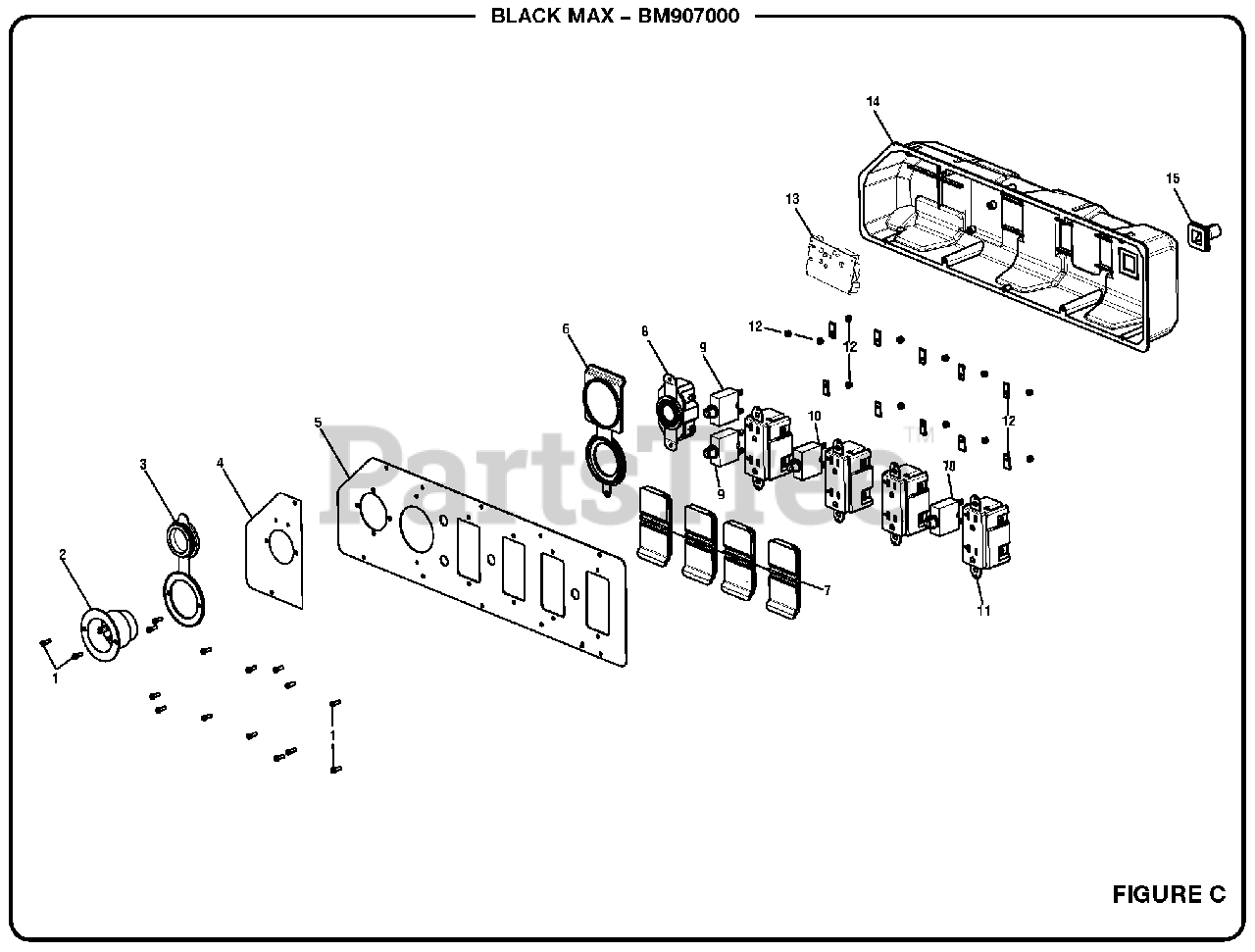

Figure C Parts Diagram

  • Title
1

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

2

Homelite 290400016

120V Receptacle (15A)

$31.99

$

Usually ships in 3-7 days

0

3

Homelite 570412006

120V Receptacle Cover

$

$

Not available

4

Homelite 940780057

Control Panel Label

$

$

Not available

5

Homelite 638496029

Control Panel Faceplate

$

$

Not available

6

Homelite 570412005

Twist Lock Receptacle Cover

$

$

Not available

7

Homelite 570412002

120V Duplex Receptacle Cover

$

$

Not available

8

Homelite 290401001

120/240V Receptacle (30A)

$25.99

$

In Stock, only 1 left!

0

9

Homelite 780351001

Circuit Breaker (30A)

$

$

Not available

10

Homelite 780350001

Circuit Breaker (20A)

$

$

Not available

11

Homelite 290400006

120V Duplex Receptacle

$

$

Not available

12

Homelite 678720001

Lock Nut (6-32, Hex Hd.)

$1.49

$

In Stock, only 4 left!

0

$1.49

$

In Stock, Qty 6

0

13

Homelite 140173024

Circuit Board Assembly

$55.99

$

Usually ships in 3-7 days

0

15

Homelite 519707010

Control Box

$35.99

$

Usually ships in 3-7 days

0

15

Homelite 570766003

Wire Protector

$3.49

$

Usually ships in 3-7 days

0
