BM 905511 (090930313) - Black Max 5500 Watt Generator, Rev 01 (2016-09) General Assembly Parts Diagram

5500 Watt Generator, Rev 01

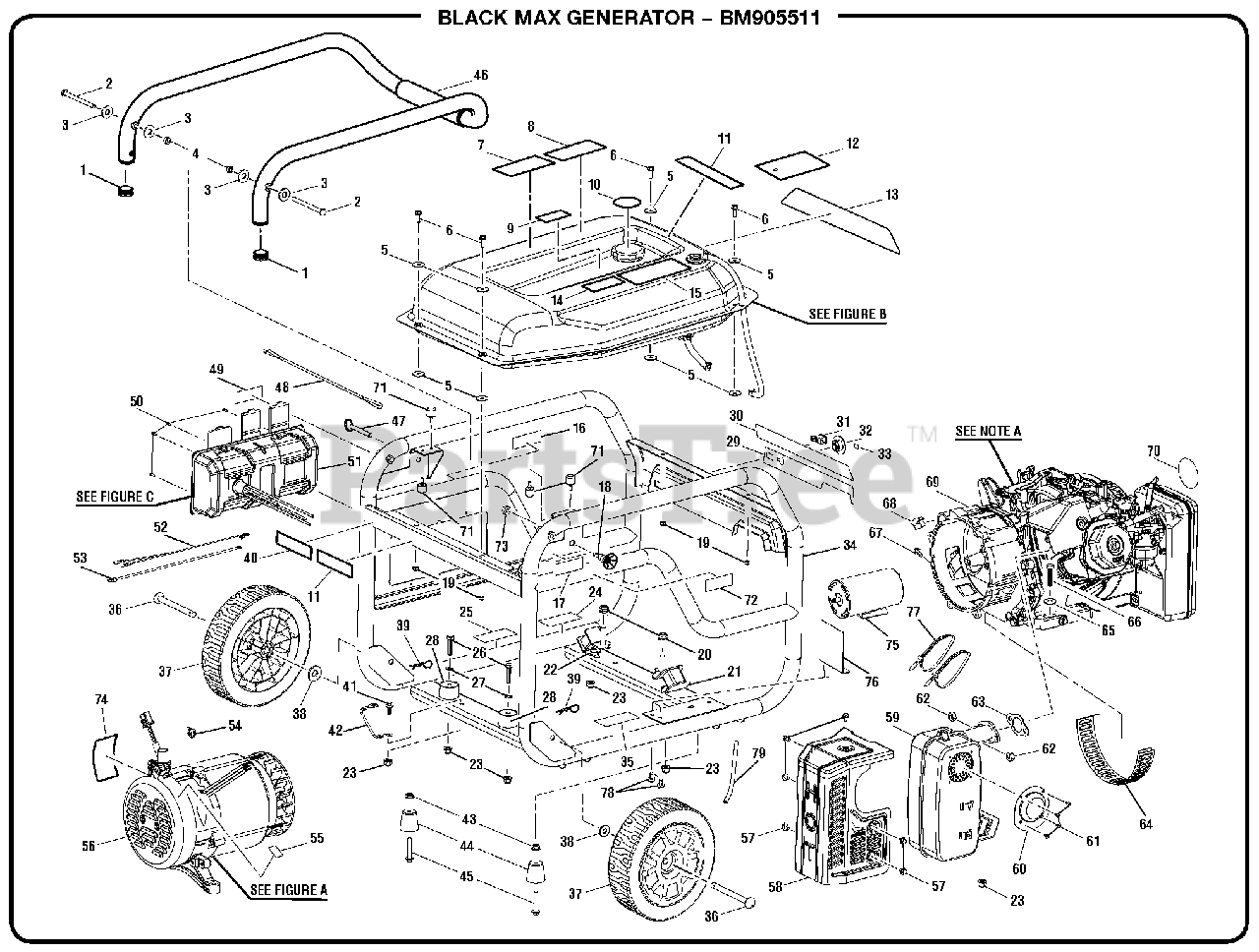

General Assembly Parts Diagram

  • Title

1

Homelite 519712003

End Cap (31 mm)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678522006

Pivot Pin, Handle 5/16-18 x 3.875 in.)

$12.99

$

Usually ships in 3-7 days

0

3

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

4

Homelite 678259003

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

6

Homelite 661836004

Bolt (M6 x 25 mm, Flange Hex Hd.)

$

$

Not available

7

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

10

Homelite 940872022

Fuel Stabilizer Label

$

$

Not available

11

Homelite 940974090

Fire Distance Label (Eng/Sp)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 940971086

Warning Hangtag

$

$

Currently unavailable

13

Homelite 940608012

Logo Label (Black Max, Long)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 940872023

Fuel Stabilizer Label (Spanish)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 940654255

Danger Label

$6.49

$

Usually ships in 3-7 days

0

16

Homelite 940705295

Logo Label (Black Max, Small)

$

$

Not available

17

Homelite 940758020

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 308910010

Handle Release Pin

$

$

Not available

19

Homelite 678460002

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 678297001

Lock Nut (M10)

$

$

Not available

21

Homelite 679940003

Engine Isolator (Large)

$12.99

$

In Stock, only 4 left!

0

22

Homelite 679940005

Engine Isolator

$

$

Not available

23

Homelite 678774002

Flange Lock Nut (M8)

$

$

Not available

24

Homelite 941486009

Inquires label

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 673155001

Lock Washer (ID8.5 x OD14.8 x 2t)

$2.99

$

In Stock, only 1 left!

0

28

Homelite 570356012

Isolator

$

$

Not available

29

Homelite 940734126

Start Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 940779183

Performance Label

$6.99

$

Usually ships in 3-7 days

0

31

Homelite 760700002

On/Off Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

32

Homelite 519813017

Fuel Valve Bezel

$3.49

$

In Stock, only 3 left!

0

33

Homelite 940474003

Fuel Label

$

$

Not available

34

Homelite 308581071

Frame Assembly

$

$

Not available

35

Homelite 940947006

Combustion Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 681866004

Axle

$16.99

$

Usually ships in 3-7 days

0

37

Homelite 308451068

Wheel

$62.99

$

Usually ships in 3-7 days

0

38

Homelite 638422004

Washer (ID10 x OD19.75 x 2t)

$

$

Not available

39

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 940513028

Ground Warning Label

$2.99

$

Usually ships in 3-7 days

0

41

Homelite 660973020

Bolt (M8 x 16 mm, Flange Hex Hd.)

$1.99

$

In Stock, Qty 6

0

42

Homelite 290404001

Ground Wire Assembly

$

$

Not available

43

Homelite 678774003

Lock Nut (M8)

$2.49

$

In Stock, Qty 5

0

44

Homelite 562856010

Foot Assembly

$

$

Not available

45

Homelite 661836007

Bolt (M8 x 45 mm, Flange Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 310224088

Handle Assembly

$80.99

$

Usually ships in 3-7 days

0

47

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

48

Homelite 310715001

Lanyard

$

$

Not available

49

Homelite 940514009

Lock and Pin Label

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

51

Homelite 290403089

Control Panel Assembly (See Fig. C)

$

$

Not available

52

Homelite 290405003

Wire Assembly (Black)

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 290427001

Wire Assembly (Green)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 638703005

Ground Lug

$7.99

$

Usually ships in 3-7 days

0

55

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

56

Homelite 310227071

Generator Head Assembly (See Fig. A)

$350.99

$

Usually ships in 3-7 days

0

57

Homelite 660975009

Bolt (M6 x 9 mm, Flange Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 638497044

Heat Shield

$42.99

$

In Stock, only 1 left!

0

59

Homelite 309322041

Muffler

$124.99

$

Usually ships in 3-7 days

0

60

Homelite 638147003

Spark Arrestor

$

$

Not available

61

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

62

Homelite 678355001

Hex Nut (M8)
(Superseded to 986163001)

$

$

Not available

63

Homelite 678728006

Exhaust Gasket

$2.99

$

Usually ships in 3-7 days

0

64

Homelite 638983001

Fan Cover (Generator Head)

$

$

Not available

65

Homelite 638675001

Washer (ID9 x OD25.4 x 2t)

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 660973020

Bolt (M8 x 16 mm, Flange Hex Hd.)

$1.99

$

In Stock, Qty 6

0

67

Homelite 661603001

Bolt (M5 x 10 mm, Flange Hex Hd.)

$

$

Not available

68

Homelite 563030001

Plug (Generator Head)

$2.49

$

Usually ships in 3-7 days

0

69

Engine (Ducar 420cc)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

70

Homelite 940633046

Recoil Housing Label

$

$

Not available

71

Homelite 570712002

Handle Bumper

$

$

Not available

72

Homelite 940680081

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 678518002

Lock Nut (1/2-20)

$4.99

$

Usually ships in 3-7 days

0

74

Homelite 940678453

Data Label

$

$

Currently unavailable

75

Homelite 310722011

Carbon Canister

$

$

Not available

76

Homelite 678708005

Canister Bracket

$

$

Not available

77

Homelite 930717003

Zip Tie, (5-1/2 in., Black)

$2.49

$

Usually ships in 3-7 days

0

78

Homelite 661308003

Screw (10-16 x 3/4 in.)

$1.99

$

Usually ships in 3-7 days

0

79

Homelite 570358179

Purge Hose (230 mm)

$

$

Not available

Homelite 120302016

Hardware Kit

Note: Not Shown, (Inc. Key Nos. 36, 38-39 and 43-45)

$62.99

$

Usually ships in 3-7 days

0

Homelite 991000904

Operator's Manual

$

$

Not available

Homelite 991000905

Quick Reference Guide

$2.99

$

Usually ships in 3-7 days

0

Homelite 308910008

Quick Release Pin Assembly

Note: (Inc. Key Nos. 18 and 73)

$

$

Not available
