BM 903655 - Black Max 3000 Watt Generator Figure A Parts Diagram

3000 Watt Generator

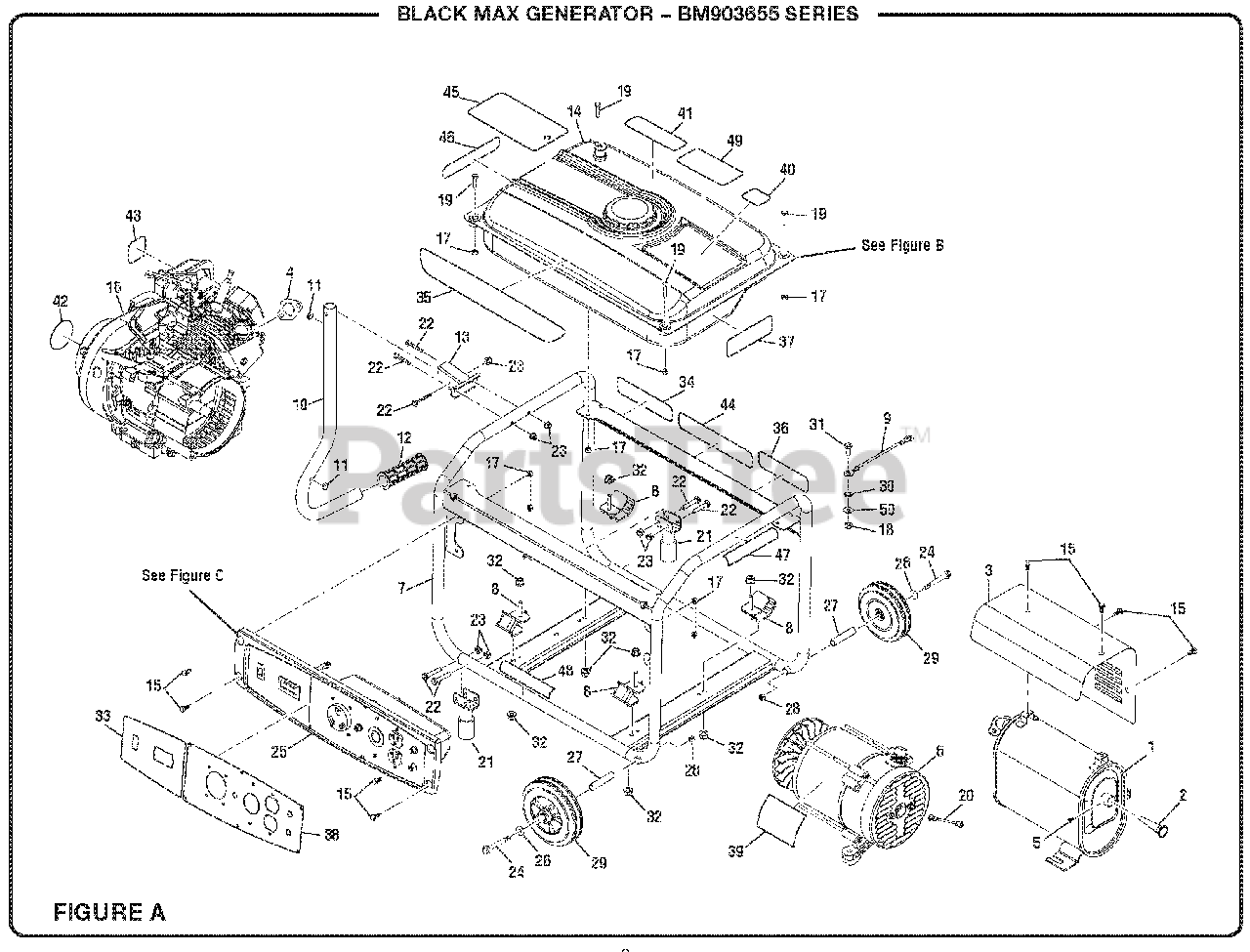

Figure A Parts Diagram

  • Title

1

Homelite 309322020

Muffler

$99.99

$

Usually ships in 3-7 days

0

2

Homelite 638147007

Spark Screen

$2.99

$

In Stock, only 1 left!

0

3

Homelite 638539003

Heat Shield

$

$

Not available

4

Homelite 678728004

Exhaust Gasket

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 661404001

Set Screw (Spark Arrestor)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 310227033

Generator Head Assembly

$

$

Not available

7

Homelite 301459007

Carrier Assembly

$

$

Not available

8

Homelite 679940001

Isolators (45deg)

$18.99

$

Usually ships in 3-7 days

0

9

Homelite 290404001

Ground Wire Assembly

$

$

Not available

10

Homelite 310224030

Handle Assembly (Inc. Key Nos. 11-13)

$

$

Not available

11

Homelite 570371008

Handle Bumper

$

$

Not available

12

Homelite 570371007

Handle Grip

$

$

Not available

13

Homelite 638702014

Handle Bracket

$11.99

$

Usually ships in 3-7 days

0

14

Homelite 310711087

Fuel Tank Assembly
(Superseded to 310711088)

$

$

Not available

15

Homelite 660481005

Screw (M6 x 14 mm)

$

$

Not available

16

Homelite 309594025

Engine (Ducar 208cc)
(Superseded to 309594069)

$

$

Not available

17

Homelite 411071001

Lock Nut (M6)

$

$

Currently unavailable

18

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 660154001

Bolt (M6 x 20 mm, Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

20

Homelite 290455002

Bonding Wire

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 310739007

Foot Assembly

$8.99

$

Usually ships in 3-7 days

0

22

Homelite 661503003

Bolt (1/4-20 x 1.5 in.)

$2.99

$

In Stock, only 4 left!

0

23

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

24

Homelite 661558002

Bolt (3/8-16 x 4.25 in.)

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 290403030

Panel Assembly

$

$

Not available

26

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 638498001

Spacer

$5.49

$

Usually ships in 3-7 days

0

28

Homelite 678659001

Lock Nut (3/8-16)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 308451030

Wheel (7 in.)

$

$

Not available

30

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 661502005

Bolt (5/16-18 x 19 mm)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 678774002

Flange Nut (M8)

$

$

Not available

33

Homelite 940040024

Control Panel Label (Left)

$14.99

$

Usually ships in 3-7 days

0

34

Homelite 941486004

Black Max Label

$

$

Not available

35

Homelite 940705164

Logo Label

$

$

Not available

36

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 940947006

Combustion Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 940040022

Control Panel Label (Right)

$7.99

$

Usually ships in 3-7 days

0

39

Homelite 940678232

Data Label

$3.99

$

Usually ships in 3-7 days

0

40

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

41

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 940633013

Recoil Housing Label

$4.49

$

Usually ships in 3-7 days

0

43

Homelite 940647078

Choke Label

$

$

Not available

44

Homelite 940513013

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 961030005

Danger Hang Tag

$

$

Not available

46

Homelite 940617093

Engine Start Label

$

$

Not available

47

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 940708006

Lubricant Label

$

$

Not available

49

Homelite 940654112

Warning Label

$

$

Not available

50

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

Homelite 120302006

Hardware Kit (Inc. Key Nos. 21-24 and 26-28)

Note: NOT SHOWN

$

$

Not available

Homelite 988000718

Operator's Manual

Note: NOT SHOWN

$

$

Not available
