BM 903600 (090930292) - Black Max 3600 Watt Generator, Rev 04 (2017-01) Figure A Parts Diagram

3600 Watt Generator, Rev 04

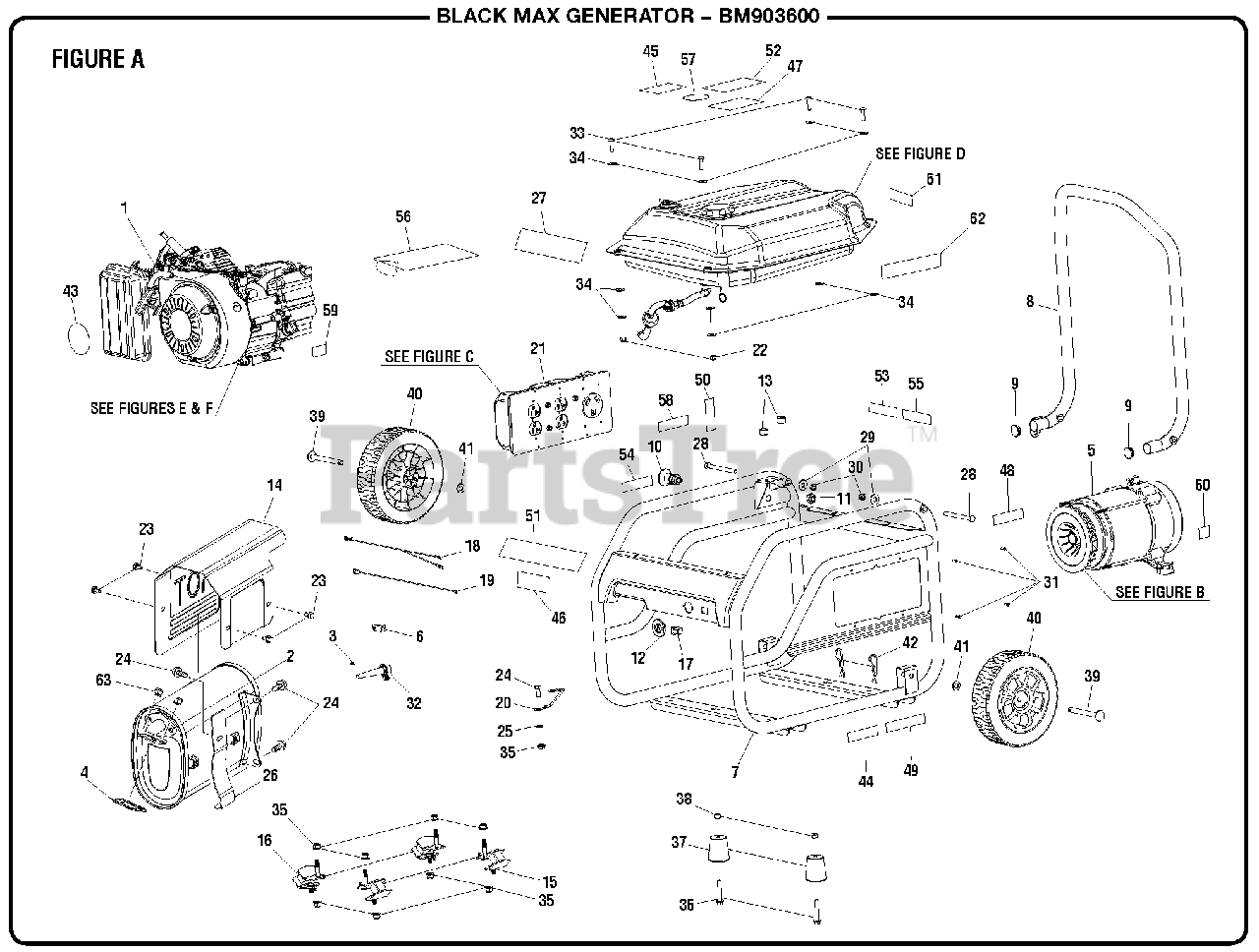

Figure A Parts Diagram

  • Title

1

Engine (Rato 212cc, 2015)

Note: OWT INDUSTRIES, INC., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 309322021

Muffler

$143.99

$

Usually ships in 3-7 days

0

3

Homelite 661404001

Spark Arrestor Set Screw

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 678728004

Exhaust Gasket

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 310227070

Generator Head Assembly

$564.99

$

Usually ships in 3-7 days

0

6

Homelite 638703006

Ground Lug

$

$

Not available

7

Homelite 308581170

Frame Assembly

$209.99

$

In Stock, only 1 left!

0

8

Homelite 310224080

Handle Assembly

$47.99

$

Usually ships in 3-7 days

0

9

Homelite 519712008

Cap (25 mm)

$3.49

$

Usually ships in 3-7 days

0

10

Homelite 308910010

Handle Release Pin

$

$

Not available

11

Homelite 678518002

Lock Nut (1/2-20)

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 519813017

Fuel Valve Bezel

$3.49

$

In Stock, only 4 left!

0

13

Homelite 570712002

Rubber Bumper

$

$

Not available

14

Homelite 638497024

Heat Shield

$31.99

$

Usually ships in 3-7 days

0

15

Homelite 679940004

Isolator (Left)

$13.99

$

In Stock, only 2 left!

0

16

Homelite 679940002

Isolator (Right)

$13.99

$

In Stock, only 2 left!

0

17

Homelite 760700002

Momentary Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

18

Homelite 290405003

Wire Assembly (Black)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 290427001

Wire Assembly (Green)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 290404001

Ground Wire Assembly

$

$

Not available

21

Homelite 290403081

Control Panel Assembly

$

$

Not available

22

Homelite 678774009

Lock Nut (M6)

$1.99

$

In Stock, only 1 left!

0

23

Homelite 660972011

Bolt (M8 x 10 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 660973020

Bolt (M8 x 16 mm, Hex Flange Hd.)

$1.99

$

In Stock, Qty 6

0

25

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 639096002

Muffler Bracket

$8.49

$

Usually ships in 3-7 days

0

27

Homelite 940779157

Performance Label

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 678522027

Handle Pivot Pin

$

$

Not available

29

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

30

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 660598001

Screw (#6-20 x .38 in., Type B)

$2.99

$

In Stock, only 2 left!

0

32

Homelite 638147008

Spark Arrestor

$9.99

$

Usually ships in 3-7 days

0

33

Homelite 661836004

Bolt (M6 x 25 mm, Hex Hd.)

$

$

Not available

34

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

35

Homelite 678774002

Flange Lock Nut (M8)

$

$

Not available

36

Homelite 661836007

Bolt (M8 x 45 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 562856010

Foot

$

$

Not available

38

Homelite 678774003

Lock Nut (M8)

$2.49

$

In Stock, Qty 5

0

39

Homelite 681866008

Axle

$7.99

$

Usually ships in 3-7 days

0

40

Homelite 308451061

Wheel

$48.99

$

In Stock, only 2 left!

0

41

Homelite 638422004

Washer (M10)

$

$

Not available

42

Homelite 678146002

Hitch Pin

$2.99

$

Usually ships in 3-7 days

0

43

Homelite 940633046

Recoil Label

$

$

Not available

44

Homelite 941486006

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

46

Homelite 940617160

Start Label

$2.99

$

Usually ships in 3-7 days

0

47

Homelite 940654263

Danger Label

$9.99

$

Usually ships in 3-7 days

0

48

Homelite 940974004

Fire Danger Label

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 940828004

Check Oil Label

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940758020

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 940705295

Logo Label

$

$

Not available

52

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

53

Homelite 940947006

Combustion Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

54

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

55

Homelite 940513028

Ground Warning Label

$2.99

$

Usually ships in 3-7 days

0

56

Homelite 940971086

Warning Hangtag

$

$

Currently unavailable

57

Homelite 940872022

Fuel Stabilizer Label (Eng)

$

$

Not available

58

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 940474003

Fuel Off Label

$

$

Not available

60

Homelite 940513002

Ground Label

$2.99

$

Usually ships in 3-7 days

0

61

Homelite 940872023

Fuel Stabilizer Label (Sp)

$3.49

$

Usually ships in 3-7 days

0

62

Homelite 940705294

Logo Label

$2.99

$

Usually ships in 3-7 days

0

63

Homelite 678189001

Lock Nut (M8)

$

$

Not available

Homelite 991000616

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000617

Quick Reference Guide

$7.99

$

Usually ships in 3-7 days

0

Homelite 120302031

Hardware Kit

Note: (Incl. Key Nos. 36-39 and 41-42)

$40.99

$

Usually ships in 3-7 days

0
