BM 903500 (090930202) - Black Max 3500 Watt Generator, Rev 06 (2017-04) General Assembly (Part 2) Parts Diagram

3500 Watt Generator, Rev 06

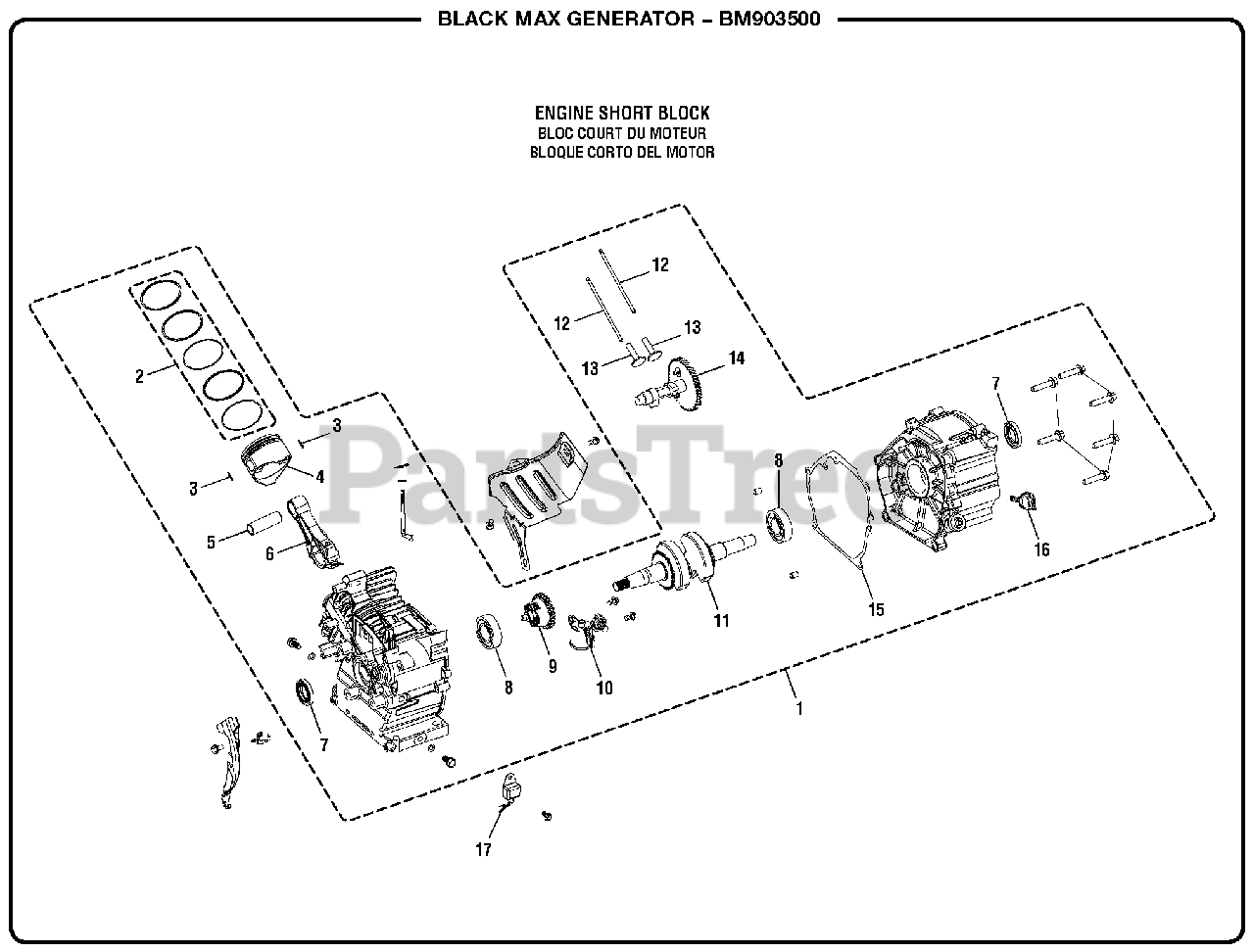

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite DJ170FD-SBA-001

Engine Short Block

$300.99

$

Usually ships in 3-7 days

0

2

Homelite DJ170F-12300

Piston Ring Set
(Superseded to D241606)

$9.49

$

Usually ships in 3-7 days

0

3

Homelite DJ168F-12003

Piston Clip
(Superseded to D241301)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite DJ170F-12001

Piston
(Superseded to D241208)

$18.99

$

In Stock, only 1 left!

0

5

Homelite DJ168F-12002

Piston Pin
(Superseded to D245503)

$13.99

$

Usually ships in 3-7 days

0

6

Homelite DJ168F-12200

Connecting Rod Assembly
(Superseded to D241503)

$10.99

$

Usually ships in 3-7 days

0

7

Homelite DJ168F-11014

Oil Seal
(Superseded to D93507)

$4.49

$

In Stock, Qty 20+

0

8

Homelite GB276-89-6205

Ball Bearing
(Superseded to D93009)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite DJ168F-15100

Governor Assembly
(Superseded to D244302)

$6.49

$

Usually ships in 3-7 days

0

10

Homelite DJ168F-18200

Switch Assembly (Oil Level)
(Superseded to D245102)

$11.99

$

Usually ships in 3-7 days

0

11

Homelite DJ168F-12100

Crankshaft Assembly
(Superseded to D240339)

$71.99

$

Usually ships in 3-7 days

0

12

Homelite DJ168F-13008

Valve Lifter Assembly
(Superseded to D241901)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite DJ168F-13009

Valve Tappet
(Superseded to D246102)

$3.49

$

In Stock, only 1 left!

0

14

Homelite DJ168F-13100

Camshaft Assembly

$31.99

$

Usually ships in 3-7 days

0

15

Homelite DJ168F-11003

Casecover Gasket
(Superseded to D96041)

$6.49

$

Usually ships in 3-7 days

0

16

Homelite DJ168F-11007

Dipstick
(Superseded to D245604)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite DJ168F-18300

Amplifier
(Superseded to D245104)

$5.49

$

Usually ships in 3-7 days

0
