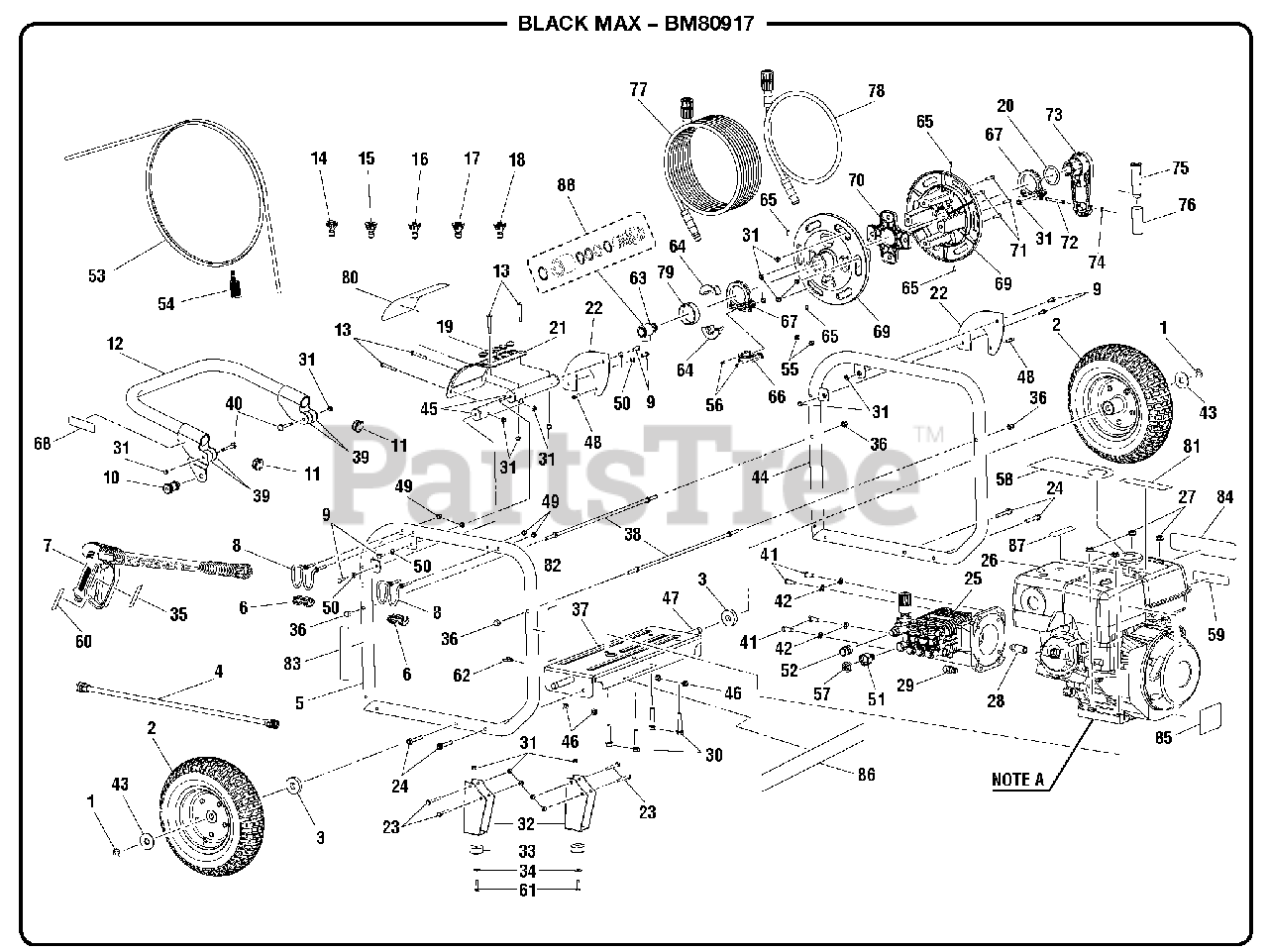

BM 80917 - Black Max 4000 PSI Pressure Washer General Assembly Parts Diagram

4000 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 678815006

Retaining Ring

$

$

Not available

2

Homelite 308451008

Wheel Assembly (13 in. x 5 in.)

$

$

Not available

3

Homelite 519857002

Axle Bushing

$

$

Not available

4

Homelite 308494024

Spray Wand Assembly

$

$

Not available

5

Homelite 308582014

Main Frame (Right)

$

$

Not available

6

Homelite 570761001

Rubber Piece

$

$

Not available

7

Homelite 308413008

Trigger Handle Assembly
(Superseded to 308494023)

$124.99

$

Usually ships in 3-7 days

0

8

Homelite 678243004

Wand Holder

$

$

Not available

9

Homelite 661503002

Bolt (1/4-20 x 19 mm Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 308910002

Handle Release Knob
(Superseded to 308910001)

$20.99

$

Usually ships in 3-7 days

0

11

Homelite 518932001

Handle Tube Cap

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 308790013

Handle Assembly

$18.99

$

Usually ships in 3-7 days

0

13

Homelite 661501001

Screw (1/4-20 x 2 in. T30 Torx Truss Hd.)

$

$

Not available

14

Homelite 308706006

Soap Nozzle (Black)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 308700014

40deg Nozzle (White)

$14.99

$

Usually ships in 3-7 days

0

16

Homelite 308699014

25deg Nozzle (Green)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 308698014

15deg Nozzle (Yellow)

$14.99

$

Usually ships in 3-7 days

0

18

Homelite 308697014

0deg Nozzle (Red)

$15.99

$

Usually ships in 3-7 days

0

19

Homelite 561383004

Nozzle Grommet

$

$

Not available

20

Homelite 570413001

Reel Gasket

$

$

Not available

21

Homelite 310673004

Nozzle Holder Panel Assembly (Inc. Key No. 19)

$

$

Not available

22

Homelite 678803001

Reel Support Bracket

$

$

Not available

23

Homelite 660869005

Bolt (1/4-20 x 53 mm Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 661505003

Bolt (M8 x 50 mm Flange Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 308394002

Pump

$

$

Not available

26

Engine (Honda GX390)

$

$

Not available

27

Homelite 678297001

Lock Nut (M10)

$

$

Not available

28

Homelite 678169006

Pressure Relief Valve

$

$

Not available

29

Homelite 678169005

Thermal Relief Valve

$13.99

$

Usually ships in 3-7 days

0

30

Homelite 660974001

Bolt (M10 x 50 mm Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

32

Homelite 638236007

Bracket
(Superseded to 308909008)

$

$

Not available

33

Homelite 570554001

Rubber Wear Pad

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

35

Homelite 940654089

Trigger Handle Warning Label (Fr./Sp.)

$1.49

$

In Stock, only 1 left!

0

36

Homelite 678681001

Cap Nut (M8 x 1-1/4 in.)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 638662007

Engine Plate

$

$

Not available

38

Homelite 678299002

Bar

$

$

Not available

39

Homelite 518568002

Washer (D34 x d9 x 1.8t)

$

$

Not available

40

Homelite 678406007

Connector Pin (1/4 in.)

$

$

Not available

41

Homelite 661558003

Bolt (3/8 in. x 25 mm)

$

$

Not available

42

Homelite 638679001

Lock Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 638128001

Washer (5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 308582011

Main Frame (Left)

$

$

Not available

45

Homelite 308582012

Frame Panel Support

$

$

Not available

46

Homelite 678819001

Lock Nut (M8)

$

$

Not available

47

Homelite 620599004

Axle

$

$

Not available

48

Homelite 661400002

Bolt (1/4-20 x 12.5 mm Hex Soc. Hd.)

$

$

Not available

49

Homelite 678460001

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 638387004

Lock Washer (1/4 in.)

$

$

Not available

51

Homelite 308405002

Adaptor (1/2 M to 3/4 F)

$7.49

$

Usually ships in 3-7 days

0

52

Homelite 678310003

Adaptor (3/8 F to M22 M)

$

$

Not available

53

Homelite 561399003

Chemical Siphon Tube

$2.99

$

In Stock, only 2 left!

0

54

Homelite 518391001

Chemical Siphon Filter

$

$

Not available

55

Homelite 678610002

Hex Nut (M4)

$

$

Not available

56

Homelite 660349001

Screw (M4 x 22 mm)

$1.99

$

In Stock, Qty 5

0

57

Homelite 306882001

Filter Screen

$

$

Currently unavailable

58

Homelite 940971039

Hang Tag

$

$

Currently unavailable

59

Homelite 940708007

Oil Warning Label

$

$

Not available

60

Homelite 940654085

Trigger Handle Warning Label

$

$

Not available

61

Homelite 661503001

Bolt (1/4-20 x 1 in. Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 518650001

Chemical Siphon Hose Holder

$

$

Not available

63

Homelite 310743001

Pivot Fitting (Inc. Key No. 88)

$

$

Not available

64

Homelite 518390002

Pivot Fitting Holder

$

$

Not available

65

Homelite 660965002

Screw (4-18 x 10 mm)

$

$

Currently unavailable

66

Homelite 519870001

Reel Fitting Saddle

$

$

Not available

67

Homelite 519865001

Reel Bearing

$

$

Not available

68

Homelite 940758008

Handle Release Label

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 518344002

Reel Half

$

$

Not available

70

Homelite 519859001

Reel Center Support

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 661400001

Bolt (1/4-20 x 1 in. Hex Soc. Hd.)

$

$

Not available

72

Homelite 678146003

Reel Handle Pin

$

$

Not available

73

Homelite 518362002

Reel Handle (Right)

$

$

Not available

74

Homelite 678815003

Retaining Clip

$

$

Not available

75

Homelite 518361002

Reel Handle (Left)

$

$

Not available

76

Homelite 519869001

Sleeve

$

$

Not available

77

Homelite 308835013

Hose (50 ft.)

$

$

Not available

78

Homelite 310740001

Hose (Pump to Reel)

$

$

Not available

79

Homelite 519868001

Handle Sleeve

$

$

Not available

80

Homelite 940779012

Large Performance Label

$

$

Not available

81

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 940617039

Engine Quick Start Label

$1.99

$

Usually ships in 3-7 days

0

83

Homelite 940617038

Pump Quick Start Label

$1.99

$

Usually ships in 3-7 days

0

84

Homelite 940654080

Danger Label

$

$

Not available

85

Homelite 940779015

Small Performance Label

$

$

Not available

86

Homelite 940599014

Data Plate

$

$

Currently unavailable

87

Homelite 941486001

Customer Service Label

$

$

Not available

88

Homelite 120213001

Seal Kit

$

$

Currently unavailable

Homelite 308658004

Dipstick

Note: (Not Shown)

$

$

Not available

Homelite 987000491

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable

Lubricant (SAE30 or SAE10W30)

Note: (Not Shown)

$

$

Not available

Homelite 960078005

Engine Manual

Note: (Not Shown)

$

$

Currently unavailable
