BM 802823 (090079397) - Black Max Pressure Washer, Rev 02 (2018-07) Figure C Parts Diagram

Pressure Washer, Rev 02

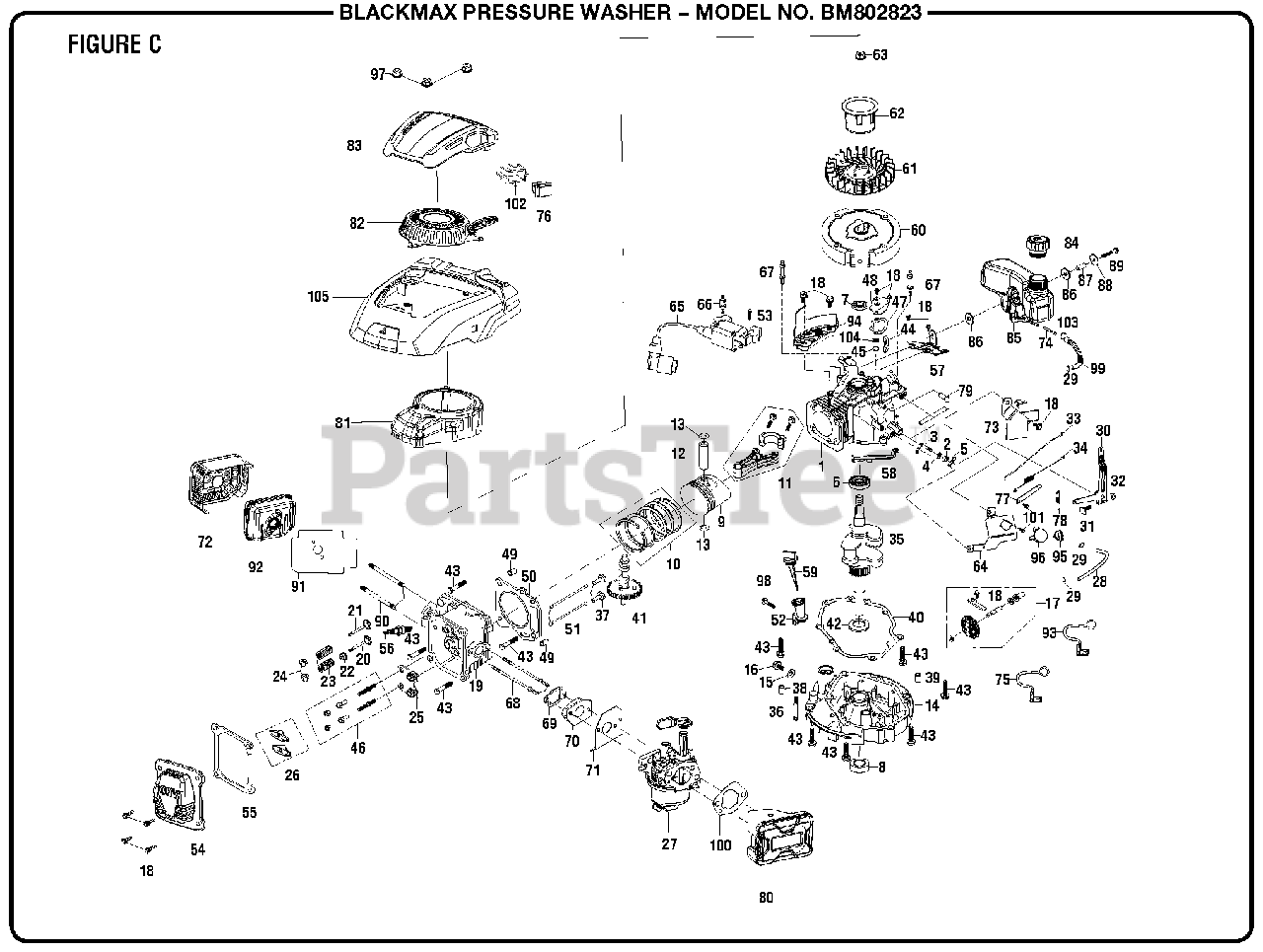

Figure C Parts Diagram

  • Title
1

$198.99

$

Usually ships in 3-7 days

0

2

Homelite 099981133002

Governor Arm Shaft Seal

$22.99

$

Usually ships in 3-7 days

0

3

Homelite 099981133003

Governor Arm Shaft

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 099981133004

Governor Arm Shaft Washer

$22.99

$

Usually ships in 3-7 days

0

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 099981133006

Ball Bearing

$14.99

$

Usually ships in 3-7 days

0

$3.99

$

Usually ships in 3-7 days

0

$7.99

$

Usually ships in 3-7 days

0

$31.99

$

Usually ships in 3-7 days

0

10

Homelite 099981133010

Piston Scraper Ring Set

$22.99

$

Usually ships in 3-7 days

0

11

Homelite 099981133011

Connecting Rod Assembly

$22.99

$

Usually ships in 3-7 days

0

12

$6.49

$

Usually ships in 3-7 days

0

13

Homelite 099981133013

Piston Clip

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 099981133014

Crankcase Cover Assembly

$22.99

$

Usually ships in 3-7 days

0

15

Homelite 099981133015

Drain Plug Washer

$2.49

$

Usually ships in 3-7 days

0

16

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 099981133017

Governor Assembly

$8.49

$

In Stock, only 1 left!

0

18

Homelite 099981133018

Bolt (M6 x 12 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 099981133019

Cylinder Head

$101.99

$

Usually ships in 3-7 days

0

20

Homelite 099981133020

Inlet Valve

$9.99

$

Usually ships in 3-7 days

0

21

Homelite 099981133021

Exhaust Valve

$9.99

$

Usually ships in 3-7 days

0

22

Homelite 099981133022

Intake Valve Returner

$22.99

$

Usually ships in 3-7 days

0

23

Homelite 099981133023

Valve Spring

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 099981133024

Valve Spring In Seat

$22.99

$

Usually ships in 3-7 days

0

25

Homelite 099981133025

Push Rod Guide Plate

$32.99

$

Usually ships in 3-7 days

0

26

Homelite 099981133026

Rocker Assembly

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 099981133027

Carburetor Assembly

$74.99

$

Usually ships in 3-7 days

0

28

$10.99

$

In Stock, only 1 left!

0

29

Homelite 099981133029

Fuel Line Clip

$2.99

$

In Stock, only 4 left!

0

30

Homelite 099981133030

Governor Arm

$4.99

$

Usually ships in 3-7 days

0

31

Homelite 099981133031

Governor Arm Bolt(M6 x 21 mm, Hex Hd.)

$22.99

$

Usually ships in 3-7 days

0

32

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 099981133033

Governor Rod

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 099981133034

Throttle Return Spring

$27.99

$

Usually ships in 3-7 days

0

35

Homelite 099981133035

Crankshaft Assembly

$3.99

$

Usually ships in 3-7 days

0

36

Homelite 099981133036

Oil Defense Pipe

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 099981133037

Valve Lifter

$4.99

$

Usually ships in 3-7 days

0

38

Homelite 099981133038

Case Cover Dowel Pin

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 099981133039

Case Cover Dowel Pin

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 099981133040

Case Cover Packing

$6.49

$

In Stock, only 2 left!

0

41

Homelite 099981133041

Camshaft Assembly

$33.99

$

Usually ships in 3-7 days

0

42

Homelite 099981133042

Crankshaft Washer

$2.99

$

Usually ships in 3-7 days

0

43

Homelite 099981133043

Bolt (M8 x 50 mm)

$3.49

$

Usually ships in 3-7 days

0

44

Homelite 099981133044

Breather Filter

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 099981133045

Breather Valve Cover

$32.99

$

Usually ships in 3-7 days

0

46

Homelite 099981133046

Rocker Bolt

$22.99

$

Usually ships in 3-7 days

0

47

Homelite 099981133047

Breather Chamber Gasket

$22.99

$

Usually ships in 3-7 days

0

48

Homelite 099981133048

Breather Chamber Cap

$32.99

$

Usually ships in 3-7 days

0

49

$2.99

$

Usually ships in 3-7 days

0

50

Homelite 099981133050

Cylinder Head Gasket

$13.99

$

Usually ships in 3-7 days

0

51

$3.49

$

Usually ships in 3-7 days

0

52

Homelite 099981133052

Oil Filler Extension

$21.99

$

In Stock, only 1 left!

0

53

Homelite 099981133053

Bolt (M6 x 30 mm)

$2.99

$

Usually ships in 3-7 days

0

54

Homelite 099981140082

Cylinder Head Cover Comp

$7.49

$

Usually ships in 3-7 days

0

55

Homelite 099981133055

Headcover Packing

$3.99

$

Usually ships in 3-7 days

0

56

$14.99

$

Usually ships in 3-7 days

0

57

Homelite 099981133057

Oil Tank Stay

$8.49

$

Usually ships in 3-7 days

0

$3.49

$

Usually ships in 3-7 days

0

59

$4.99

$

In Stock, only 2 left!

0

60

Homelite 099981133060

Flywheel Assembly

$64.99

$

Usually ships in 3-7 days

0

61

Homelite 099981133061

Recoil Starter Fan

$4.99

$

Usually ships in 3-7 days

0

62

Homelite 099981133062

Starter Pulley

$6.49

$

Usually ships in 3-7 days

0

63

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 099981140083

Switch Plate

$6.49

$

Usually ships in 3-7 days

0

65

Homelite 099981133065

Ignition Coil Assembly

$28.99

$

Usually ships in 3-7 days

0

66

Homelite 099981133066

Ignition Coil Bolt Stud

$22.99

$

Usually ships in 3-7 days

0

67

Homelite 099981133067

Recoil Starter Bolt Stud

$22.99

$

Usually ships in 3-7 days

0

68

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 099981133069

Intake Packing

$3.49

$

In Stock, only 4 left!

0

70

Homelite 099981133070

Carburetor Insulator

$32.99

$

Usually ships in 3-7 days

0

71

Homelite 099981133071

Carburetor Packing

$6.49

$

Usually ships in 3-7 days

0

72

Homelite 099981133072

Out Muffler Shield

$15.99

$

In Stock, only 1 left!

0

73

Homelite 099981133073

Upper Shroud Assembly

$3.49

$

Usually ships in 3-7 days

0

$2.99

$

Usually ships in 3-7 days

0

75

Homelite 099981133075

Flameout Wire

$3.49

$

Usually ships in 3-7 days

0

76

$27.99

$

Usually ships in 3-7 days

0

77

Homelite 099981133077

Wire Harness Clip

$2.99

$

Usually ships in 3-7 days

0

78

Homelite 099981133078

Governor Spring

$2.49

$

Usually ships in 3-7 days

0

79

Homelite 099981133079

Breather Tube

$3.99

$

Usually ships in 3-7 days

0

80

Homelite 099981140084

Air Cleaner Assembly

$13.99

$

In Stock, only 1 left!

0

81

$14.99

$

Usually ships in 3-7 days

0

82

Homelite 099981140085

Recoil Starter Comp

$40.99

$

Usually ships in 3-7 days

0

83

Homelite 099981140086

Upper Fan Cover

$12.99

$

Usually ships in 3-7 days

0

84

Homelite 099981133084

Fuel Tank Cap

$38.99

$

Usually ships in 3-7 days

0

85

Homelite 099981133085

Fuel Tank Assembly

$37.99

$

Usually ships in 3-7 days

0

86

Homelite 099981133086

Isolation Pad

$22.99

$

Usually ships in 3-7 days

0

87

Homelite 099981133087

Fuel Tank Bushing

$2.49

$

Usually ships in 3-7 days

0

88

Homelite 099981133088

Fuel Tank Washer

$2.99

$

Usually ships in 3-7 days

0

89

Homelite 099981133089

Bolt (M8 x 45 mm)

$2.99

$

Usually ships in 3-7 days

0

$2.99

$

Usually ships in 3-7 days

0

91

Homelite 099981140087

Exhaust Packing

$6.49

$

Usually ships in 3-7 days

0

92

Homelite 099981133092

Muffler Comp

$22.99

$

Usually ships in 3-7 days

0

93

Homelite 099981133093

Flameout Wire

$3.49

$

Usually ships in 3-7 days

0

$4.99

$

Usually ships in 3-7 days

0

95

Homelite 099981133095

Fuel Valve Knob

$11.99

$

Usually ships in 3-7 days

0

96

Homelite 099981133096

Fuel Valve Bezel

$1.99

$

Usually ships in 3-7 days

0

97

$2.49

$

In Stock, Qty 7

0

98

Homelite 099981133098

Bolt (M8 X 20 mm)

$2.99

$

Usually ships in 3-7 days

0

99

$7.99

$

In Stock, only 1 left!

0

100

Homelite 099981133100

Carburetor Spacer

$2.49

$

In Stock, only 2 left!

0

101

Homelite 099981133101

Bolt (M6 x 25 mm)

$2.99

$

Usually ships in 3-7 days

0

102

Homelite 099981133102

Switch Bracket

$2.99

$

Usually ships in 3-7 days

0

103

Homelite 099981133103

Fuel Line Clip

$2.99

$

Usually ships in 3-7 days

0

104

Homelite 099981140089

Breather Spring

$2.49

$

Usually ships in 3-7 days

0

105

Homelite 099981140088

Lower Fan Cover

$34.99

$

Usually ships in 3-7 days

0
