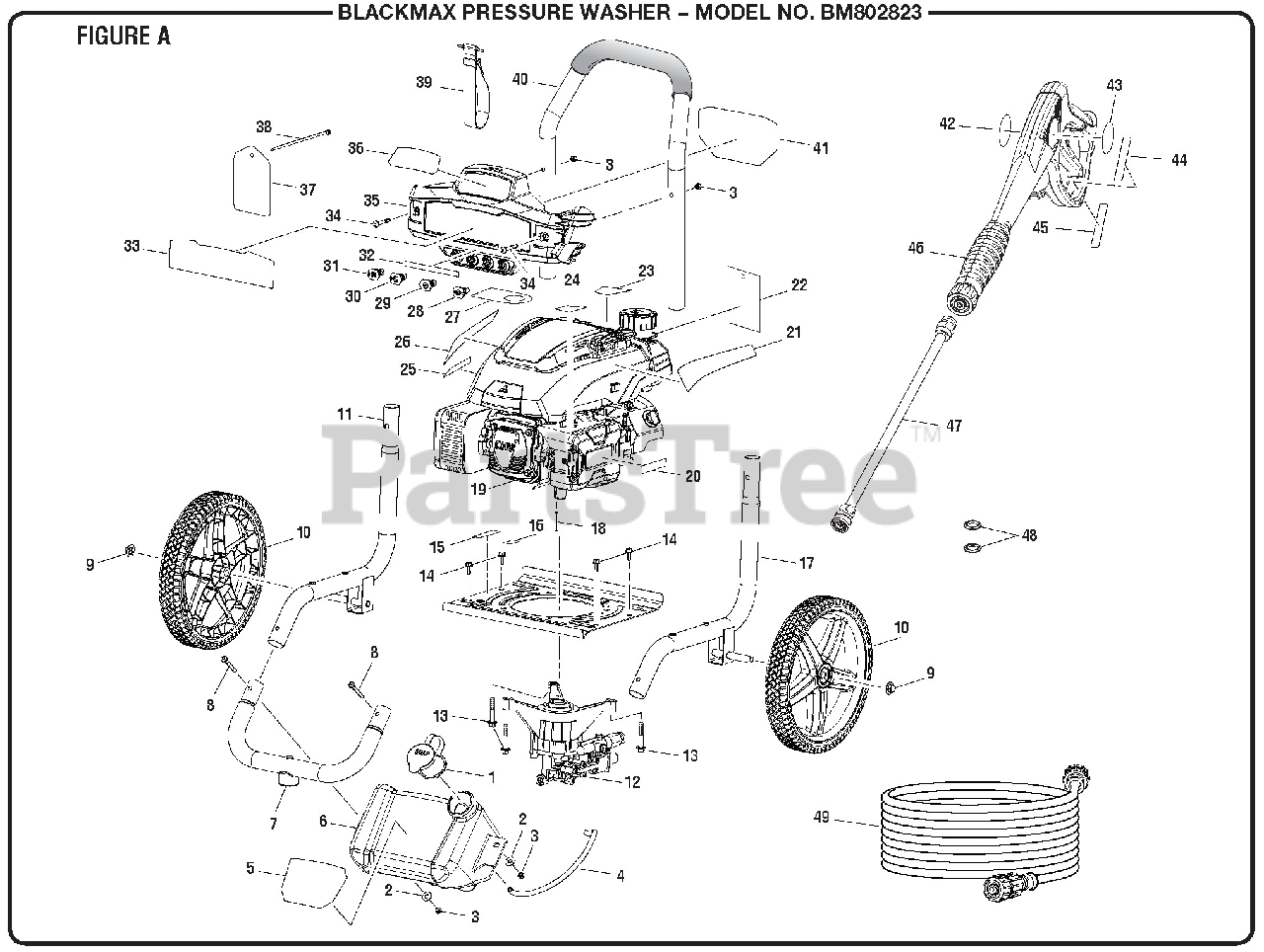

BM 802823 (090079397) - Black Max Pressure Washer, Rev 02 (2018-07) Figure A Parts Diagram

Pressure Washer, Rev 02

Figure A Parts Diagram

  • Title
1

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

2

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

3

Homelite 678610006

Lock Nut (M6)

$

$

Not available

4

Homelite 570728009

Chemical Siphon Tube
(Superseded to 561399003)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 941851026

Soap Tank Label

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 580875021

Soap Tank

$

$

Not available

7

Homelite 310742029

Main Frame Assembly (Front)

$

$

Not available

8

Homelite 661503015

Bolt (M6 X 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

9

$

$

Not available

$

$

Not available

11

Homelite 310703024

Main Frame Assembly (Left)

$39.99

$

Usually ships in 3-7 days

0

12

Homelite 308653052

Pump (See Figure B)
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

13

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$1.99

$

In Stock, Qty 5

0

14

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$

$

Not available

15

Homelite 940947021

Combustion Warning Label

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 940871016

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 310704029

Main Frame Assembly (Right)

$22.99

$

Usually ships in 3-7 days

0

18

Homelite 678041006

Output Shaft Key

$13.99

$

In Stock, only 1 left!

0

19

Engine (Mitsubishi 173 cc, Recoil Start)

Note: Techtronic Industries Power Equipment, Inc. will not provide complete motor as a replacement part. Motor are covered though the motor manufacturer's warranty. Consult the accompanying motor manual or contact our service department for assistance.

$

$

Not available

20

Homelite 941486009

Inquiries Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 941851014

Left Wing Label

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 940971106

Danger Hangtag

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 941851027

E85 Label

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 940698039

Choke Label

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 941851028

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 941851013

Right Wing Label

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 961454002

Oil Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 308706015

Soap Nozzle

$3.49

$

In Stock, only 1 left!

0

29

Homelite 308700030

40° Nozzle

$18.99

$

Usually ships in 3-7 days

0

30

Homelite 308699029

25° Nozzle

$8.99

$

Usually ships in 3-7 days

0

31

Homelite 308698029

15° Nozzle

$12.99

$

In Stock, only 1 left!

0

32

Homelite 940851342

Nozzle Callout Label

$2.99

$

Usually ships in 3-7 days

0

33

Homelite 941851029

Performance Label (Mitsubishi)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

35

Homelite 310673030

Hose and Nozzle Holder Assembly

$

$

Not available

36

Homelite 940705345

Logo Label

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 961039015

Nozzle Hangtag

$

$

Not available

38

$

$

Not available

39

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 3 left!

0

40

Homelite 308638072

Handle Assembly

$39.99

$

Usually ships in 3-7 days

0

41

Homelite 941851030

Quick Start Label

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 940654084

Trigger Handle Warning Label (English)

$2.99

$

In Stock, only 1 left!

0

43

Homelite 940726016

Blackmax Spray Wand Logo Label

$

$

Not available

44

Homelite 940654228

Trigger Handle Warning Label (French/Spanish)

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 940786047

Trigger Handle Rating Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 308760019

Trigger Handle Assembly

Note: (Incl. Key Nos. 42 and 45)

$46.99

$

Usually ships in 3-7 days

0

47

Homelite 308506014

Spray Wand

$

$

Not available

48

Homelite 120971005

O-Ring Kit

$

$

Currently unavailable

49

Homelite 308835006

Hose (25 ft.)

$58.99

$

Usually ships in 3-7 days

0

Homelite 995000365

Operator's Manual

$

$

Not available

Homelite 995000366

Quick Reference Guide

$1.99

$

Usually ships in 3-7 days

0
