BM 46 I - RedMax Backpack Sprayer (2008-01) 002 - FUNCTIONAL PARTS Parts Diagram

Backpack Sprayer

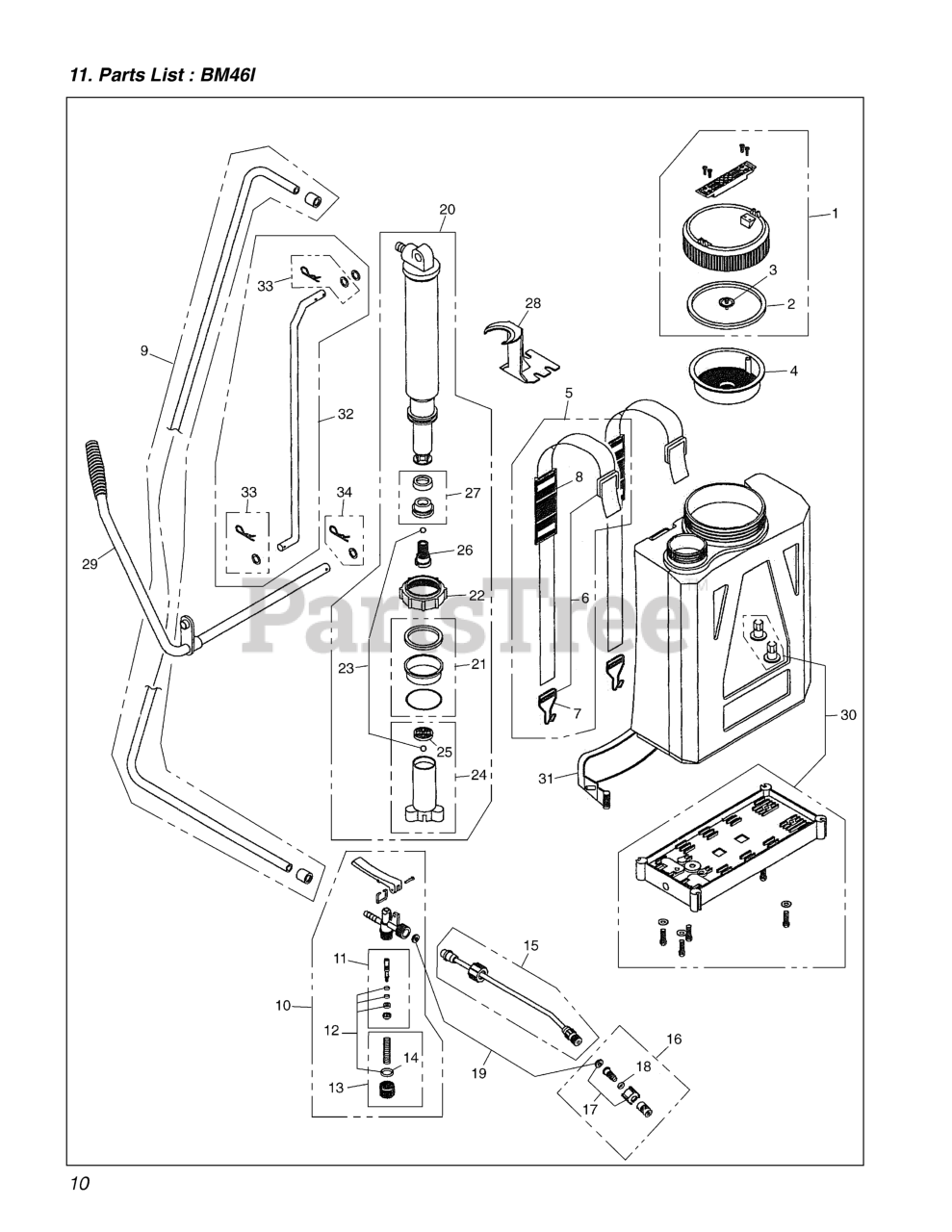

002 - FUNCTIONAL PARTS Parts Diagram

  • Title

1

RedMax RMKIT0571

CAP W/HANDLE & CHECK VALVE
(Superseded to 574150201)

$

$

Not available

2

RedMax RMKIT02A

6
(Superseded to 574149301)

$

$

Not available

3

RedMax RMKIT02CH

CHECK VALVE, CAP
(Superseded to 574149401)

$

$

Not available

4

RedMax RMKIT01AS

TANK STRAINER

$

$

Not available

5

RedMax RMKIT15

BELT & CLIP
(Superseded to 574151401)

$14.99

$

Usually ships in 3-10 days

0

6

RedMax RMKIT31

BELT HOOK & BUCKLE
(Superseded to 574155201)

$

$

Not available

7

RedMax RMKIT283

HOOK, BELT
(Superseded to 574154401)

$

$

Not available

8

RedMax RMKIT36

PAD, SHOULDER
(Superseded to 574155301)

$

$

Not available

9

RedMax RMKIT17

HOSE & CLAMPS
(Superseded to 574151701)

$27.99

$

Usually ships in 3-10 days

0

10

RedMax RMKIT18

SPRAY PISTOL, COMP
(Superseded to 574151801)

$51.99

$

Usually ships in 3-10 days

0

11

RedMax RMKIT19

SPINDLE SET
(Superseded to 574152301)

$37.99

$

Usually ships in 3-10 days

0

12

RedMax RMKIT20

O-RING SET, SPINDLE
(Superseded to 574152401)

$

$

Not available

13

RedMax RMKIT21

PLUG SET
(Superseded to 574152501)

$

$

Not available

14

RedMax RMKIT367

O-RING SET
(Superseded to 574155401)

$

$

Not available

15

RedMax RMKIT22

20
(Superseded to 574152601)

$

$

Not available

16

RedMax RMKIT25

SPRAY TIP SET
(Superseded to 574152801)

$

$

Not available

17

RedMax RMKIT24

NOZZLE HOLDER
(Superseded to 574152701)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax RMKIT26

O-RING, SPRAY TIP
(Superseded to 574154101)

$

$

Not available

19

RedMax RMKIT392

WASHER SET, GUN & NOZZLE
(Superseded to 574155501)

$

$

Not available

20

RedMax RMKIT140

PUMP ASSY COMPL
(Superseded to 574150801)

$136.99

$

Usually ships in 3-10 days

0

21

RedMax RMKIT146

SEAL & O-RING
(Superseded to 574151201)

$

$

Not available

22

RedMax RMKIT147

PUMP UNIT THREADED HOLDER
(Superseded to 574151301)

$24.99

$

Usually ships in 3-10 days

0

23

RedMax RMKIT182

BALL, PLASTIC
(Superseded to 574152101)

$

$

Not available

24

RedMax RMKIT299

CYLINDER, COMPL
(Superseded to 574155001)

$

$

Not available

25

RedMax RMKIT297

GRATE, CYLINDER
(Superseded to 574154901)

$14.99

$

Usually ships in 3-10 days

0

26

RedMax RMKIT141

PISTON HOLDER
(Superseded to 574150901)

$27.99

$

Usually ships in 3-10 days

0

27

RedMax RMKIT142

PISTON CUP & PLASTIC CAP
(Superseded to 574151001)

$30.99

$

Usually ships in 3-10 days

0

28

RedMax RMKIT145

AGITATOR

$8.16

$

Usually ships in 3-10 days

0

29

RedMax RMKIT0568

PUMP HANDLE W/PLASTIC GRIP
(Superseded to 574149901)

$60.99

$

Usually ships in 3-10 days

0

30

RedMax RMKIT0569

BASE ASSY, COMPL

$24.45

$

Usually ships in 3-10 days

0

31

RedMax RMKIT150

HIP SUPPORT

$

$

Not available

32

RedMax RMKIT0570

PUMP LEVER W/LOCKING PIN

$

$

Not available

33

RedMax RMKIT180

LOCKING PINS-PUMP HANDLE SM

$3.25

$

Usually ships in 3-10 days

0

34

RedMax RMKIT181

LOCKING PIN-PUMP HANDLE LG

$5.87

$

Usually ships in 3-10 days

0
