BM 4 CSS ACC (090432505) - Black Max Straight Shaft String Trimmer, 30cc, Rev 04 (2020-08) FIGURE A Parts Diagram

Straight Shaft String Trimmer, 30cc, Rev 04

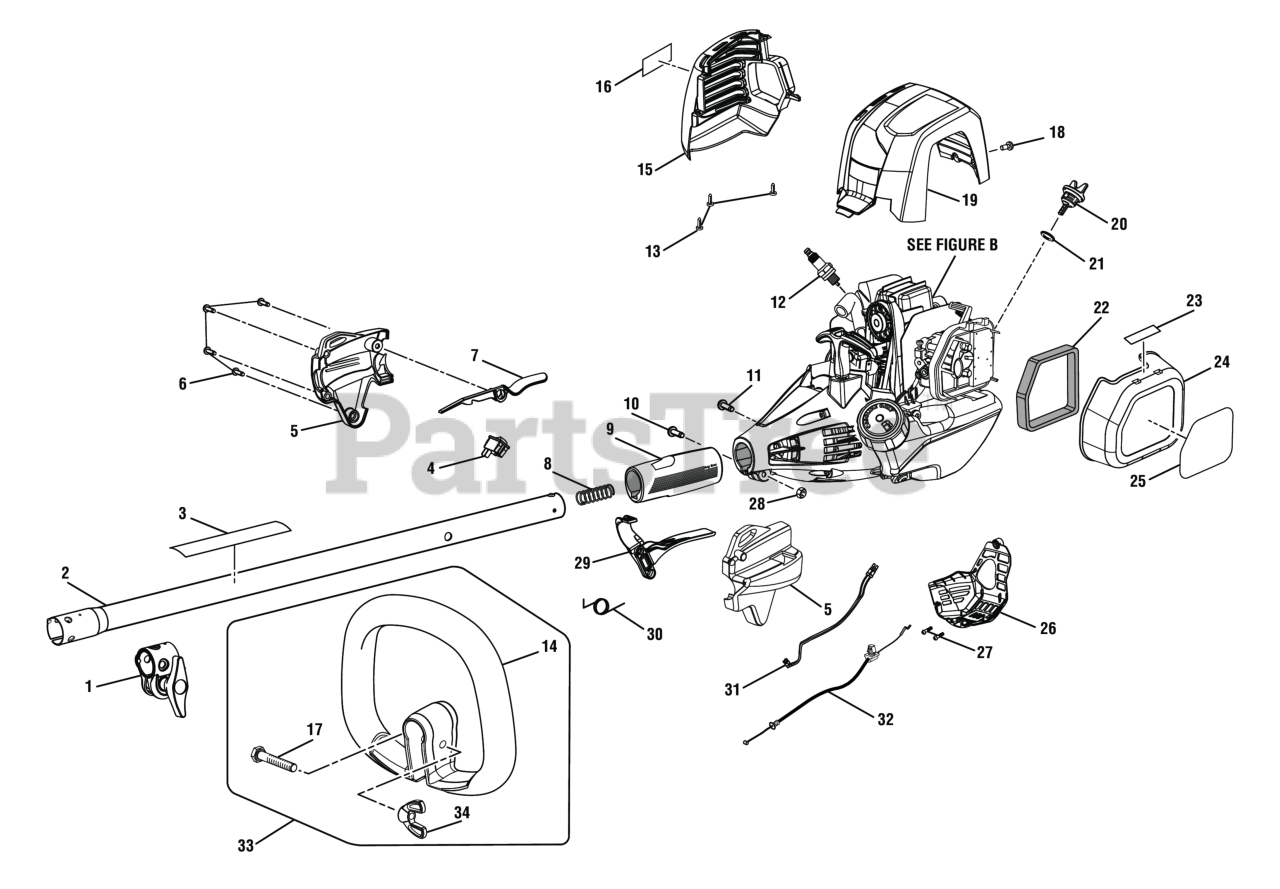

FIGURE A Parts Diagram

  • Title

1

Homelite 205285001

Boom Clamp Assembly

$10.99

$

Usually ships in 0 days

0

2

Homelite 205286001

Upper Boom Assembly (Inc. Key Nos. 1 and 3

$41.99

$

Usually ships in 0 days

0

3

Homelite 941705045

Warning Label

$

$

Currently unavailable

4

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 308888005

Control Handle Assembly (Inc. Key No. 6

$

$

Currently unavailable

6

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 8

0

7

Homelite 532525005

TRIGGER LOCKOUT

$1.99

$

In Stock, only 2 left!

0

8

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 570234019

Rear Handle Grip

$5.99

$

Usually ships in 3-7 days

0

10

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.99

$

In Stock, only 1 left!

0

11

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 3 left!

0

12

Homelite 870301002

Spark Plug (Champion RY4C)

Note: Standard Hardware Item - May Be Purchased Locally

$8.49

$

In Stock, only 1 left!

0

13

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 7

0

14

Homelite 526764002

Front Handle

$9.49

$

Usually ships in 3-7 days

0

15

Homelite 311551001

Muffler Housing (Inc. Key No. 16)

$8.49

$

Usually ships in 3-7 days

0

16

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 660510008

Shoulder Screw (M4 x 11 mm, T25 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

19

Homelite 518142010

Top Cover

$

$

Currently unavailable

20

Homelite 310302001

Oil Cap/Dipstick (Incl. key no. 12)

$3.99

$

Usually ships in 3-7 days

0

21

Homelite 570400001

O-Ring

$1.99

$

In Stock, only 3 left!

0

22

Homelite 901723001

Air Filter

$1.99

$

In Stock, Qty 5

0

23

Homelite 940647090

Choke Label

$1.99

$

In Stock, only 1 left!

0

24

Homelite 205288001

Air Filter Cover (Inc. Key No. 23 and 25)

$

$

Currently unavailable

25

Homelite 941166059

Starting Label

$

$

Currently unavailable

26

Homelite 518548001

CE Cover (Bottom Cover)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite T660619001

Screw (#6-19 x 1/2 in., Phillips Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

29

Homelite 532524005

Throttle Trigger

$2.49

$

In Stock, only 1 left!

0

30

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, Qty 5

0

31

Homelite 205287001

Lead Assembly (Inc. Key No. 4)

$12.99

$

Usually ships in 0 days

0

32

Homelite 308842022

Throttle Cable

$3.99

$

Usually ships in 0 days

0

33

Homelite 308991003

Auxiliary Handle Assembly

$13.99

$

Usually ships in 3-7 days

0

34

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

Homelite 995000950

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
