BM 26 SSL3 VNMC (095330554) - Black Max Straight Shaft String Trimmer, 26cc, Rev 01 (2020-10) FIGURE B Parts Diagram

Straight Shaft String Trimmer, 26cc, Rev 01

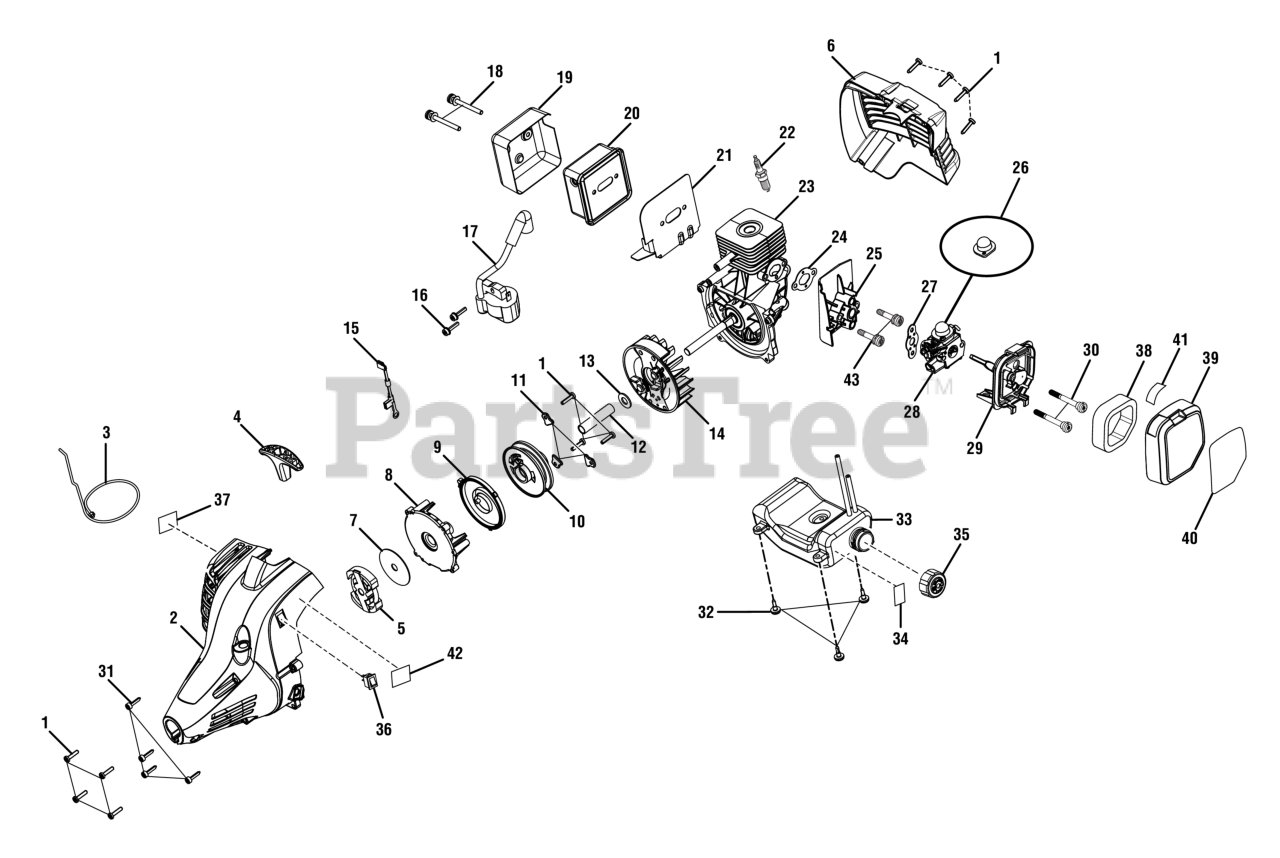

FIGURE B Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 8

0

2

Homelite 205326001

Front Housing Assembly (Inc. Key No. 37 & 42)

Note: (Inc. Key No. 37 & 42)

$

$

Currently unavailable

3

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 2 left!

0

4

Homelite 525485011

Starter Grip

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 300960002

CLUTCH ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

6

Homelite 518504001

Rear Housing

$4.99

$

Usually ships in 3-7 days

0

7

Homelite 638090001

Washer (ID9.63 x OD50.75 x 1.10t)

$1.99

$

In Stock, only 4 left!

0

8

Homelite 518692001

Starter Housing

$2.49

$

In Stock, only 4 left!

0

9

Homelite 638033001

Spring & Container Assembly

$5.49

$

Usually ships in 3-7 days

0

10

Homelite 310022004

Starter Pulley Assembly

$12.99

$

In Stock, only 1 left!

0

11

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

12

Homelite 638284002

Spacer Tube

$

$

Not available

13

Homelite 650017001

Washer (ID9.75 x OD20 x 1.6t)
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

14

Homelite 308811007

Flywheel Assembly

$29.99

$

Usually ships in 3-7 days

0

15

Homelite 308863032

Lead Assembly

$

$

Not available

16

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 850108013

Ignition Module

$

$

Not available

18

Homelite 660638003

Screw w/Washers (10-24 x 2-1/8 in., T25 Torx Truss Hd.)
(Superseded to PS03999)

$

$

Not available

19

Homelite 638442001

Muffler Housing

$4.49

$

In Stock, only 1 left!

0

20

Homelite 308990065

Muffler Assembly

$49.99

$

Usually ships in 3-7 days

0

21

Homelite 901452011

Muffler Gasket

$2.49

$

In Stock, Qty 5

0

22

Homelite 870174001

SPARK PLUG CHAMPION - RCJ-6Y

Note: Standard Hardware Item - May Be Purchased Locally

$4.99

$

In Stock, Qty 20+

0

23

Homelite 308892038

Short Block Assembly

$

$

Not available

24

Homelite 901551001

Inner Heat Dam Gasket

$1.99

$

In Stock, Qty 5

0

25

Homelite 538860001

Heat Dam Deflector

$

$

Currently unavailable

26

Primer Bulb (Kit AC20100)

Note: Standard Hardware Item - May Be Purchased Locally

$

$

Not available

27

Homelite 903034001

Gasket

$1.99

$

In Stock, Qty 6

0

28

Homelite 309375009

Carburetor Assembly

$58.99

$

In Stock, only 2 left!

0

29

Homelite 307191009

Airbox Base Assembly

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 660454020

Screw (M5 x 45 mm, T20 Torx Truss Hd.)

$1.99

$

Usually ships in 0 days

0

31

Homelite 660970001

Screw w/Washer (M4 x 16 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

32

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

33

Homelite 205001003

Fuel Tank w/Label & Cap Assembly

Note: (Inc. Key Nos. 34-35)

$30.99

$

Usually ships in 3-7 days

0

34

Homelite 941790001

Fuel Tank Warning Label

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 310816018

Fuel Cap Assembly

$11.99

$

In Stock, only 1 left!

0

36

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

37

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 560873001

Air Filter (Element)
(Superseded to 5687301)

$

$

Not available

39

Homelite 205327001

Air Box Cover (Inc. Key No. 40-41)

Note: (Inc. Key No. 40-41)

$

$

Currently unavailable

40

Homelite 941705044

Starting Label

$

$

Currently unavailable

41

Homelite 940216005

Choke Label

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 941788001

Primer Bulb Location Label

$1.99

$

Usually ships in 3-7 days

0

43

Homelite T662210002

Screw w/Washers (M5 x 30 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

Homelite 120900305

High Altitude Kit

Note: Not Shown

$4.99

$

Usually ships in 3-7 days

0

Homelite 995000936

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
