BM 254 BV (090077021) - Black Max Backpack Blower Figure B Parts Diagram

Backpack Blower

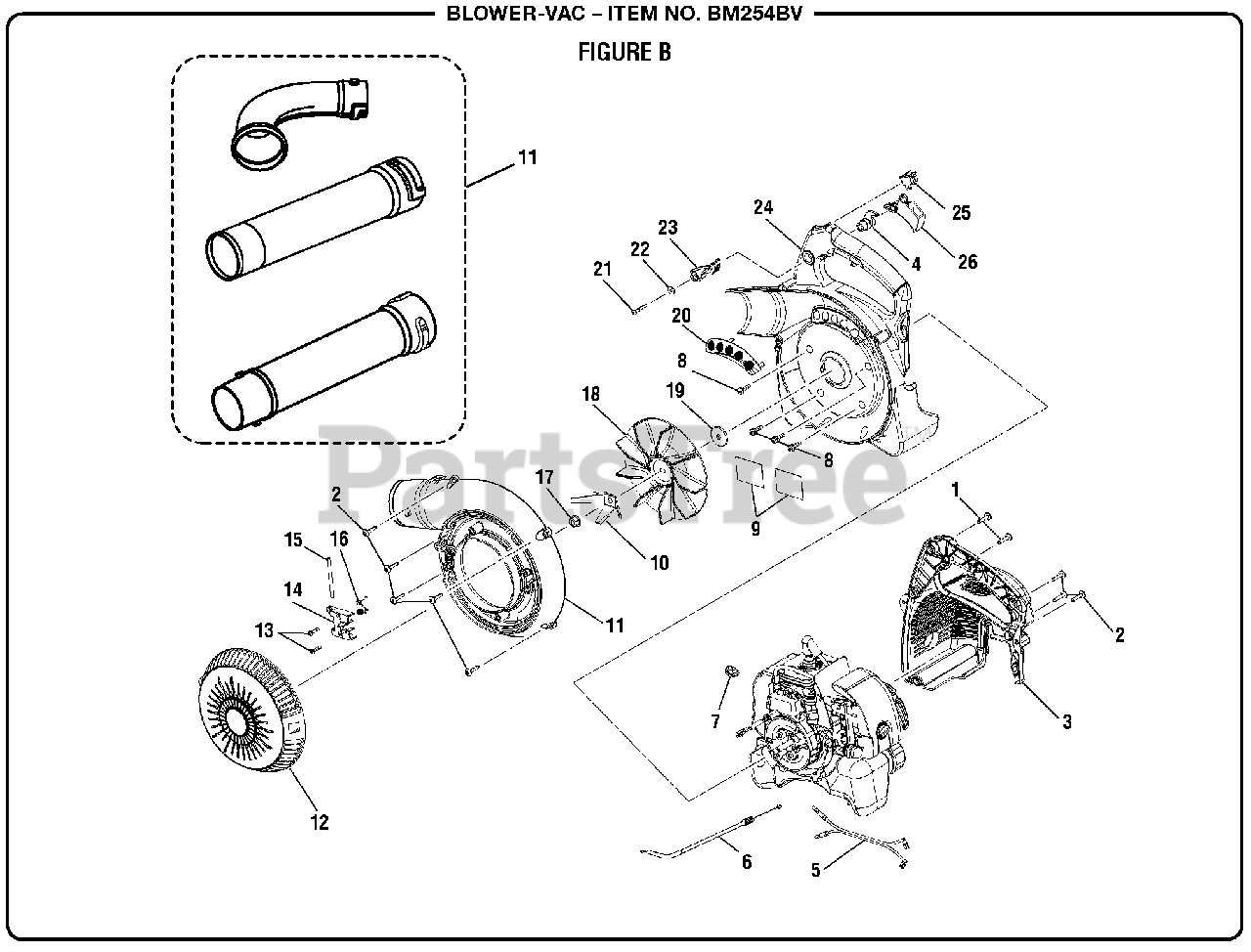

Figure B Parts Diagram

  • Title

1

Homelite 660674003

Screw (10-14 x 7/8 in., T25 Torx T.F.)

$

$

Not available

2

Homelite 660674001

Screw (10-14 x 7/8 in., T25 Torx Pan Hd. T.F.)
(Superseded to 82537)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 310024001

Engine Shroud w/Label

$

$

Not available

4

Homelite 518150001

Throttle Lock (Cruise Control)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 290986001

Wiring Harness

$

$

Not available

6

Homelite 308209003

Throttle Cable

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 570624001

Rubber Grommet

$

$

Not available

8

Homelite 660344005

Screw w/Washers (M5 x 20 mm, T25 Torx Pan Hd.)

$

$

Not available

9

Homelite 900955002

Heat Shield Tape

$

$

Not available

10

Homelite 678114003

Mulcher Blade

$

$

Not available

11

Homelite 312004001

Housing and Tube Assembly Kit

$

$

Not available

12

Homelite 310026001

Vacuum Door w/Label

$

$

Not available

13

Homelite 660665001

Screw (8-14 x 5/8 in., Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 518632001

Vacuum Door Hinge

$

$

Not available

15

Homelite 650026002

Pin

$

$

Not available

16

Homelite 678117001

Hinge Spring

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 678128002

Lock Nut (M8 x 1.25, Flange Hd.)

$1.99

$

In Stock, only 1 left!

0

18

Homelite 518265003

Fan

$11.99

$

Usually ships in 3-7 days

0

19

Homelite 678126005

Washer (ID9.8 x OD30 x 3t)

$1.99

$

In Stock, only 4 left!

0

20

Homelite 638179001

Mesh Screen

$

$

Not available

21

Homelite 660666001

Screw (8-14 x 1 in., Special T20 Torx Truss Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 678125001

Washer (ID4.3 x OD12 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 518160013

Cruise Control Lever
(Superseded to 518160007)

$1.99

$

In Stock, only 3 left!

0

24

Homelite 760961005

Engine Switch

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 518255006

Throttle Trigger
(Superseded to 518255005)

$

$

Not available
