BM 25 TEC2 (090309045) - Black Max Trimmer/Edger, 25.4cc, Rev 03 (2020-12) FIGURE D Parts Diagram

Trimmer/Edger, 25.4cc, Rev 03

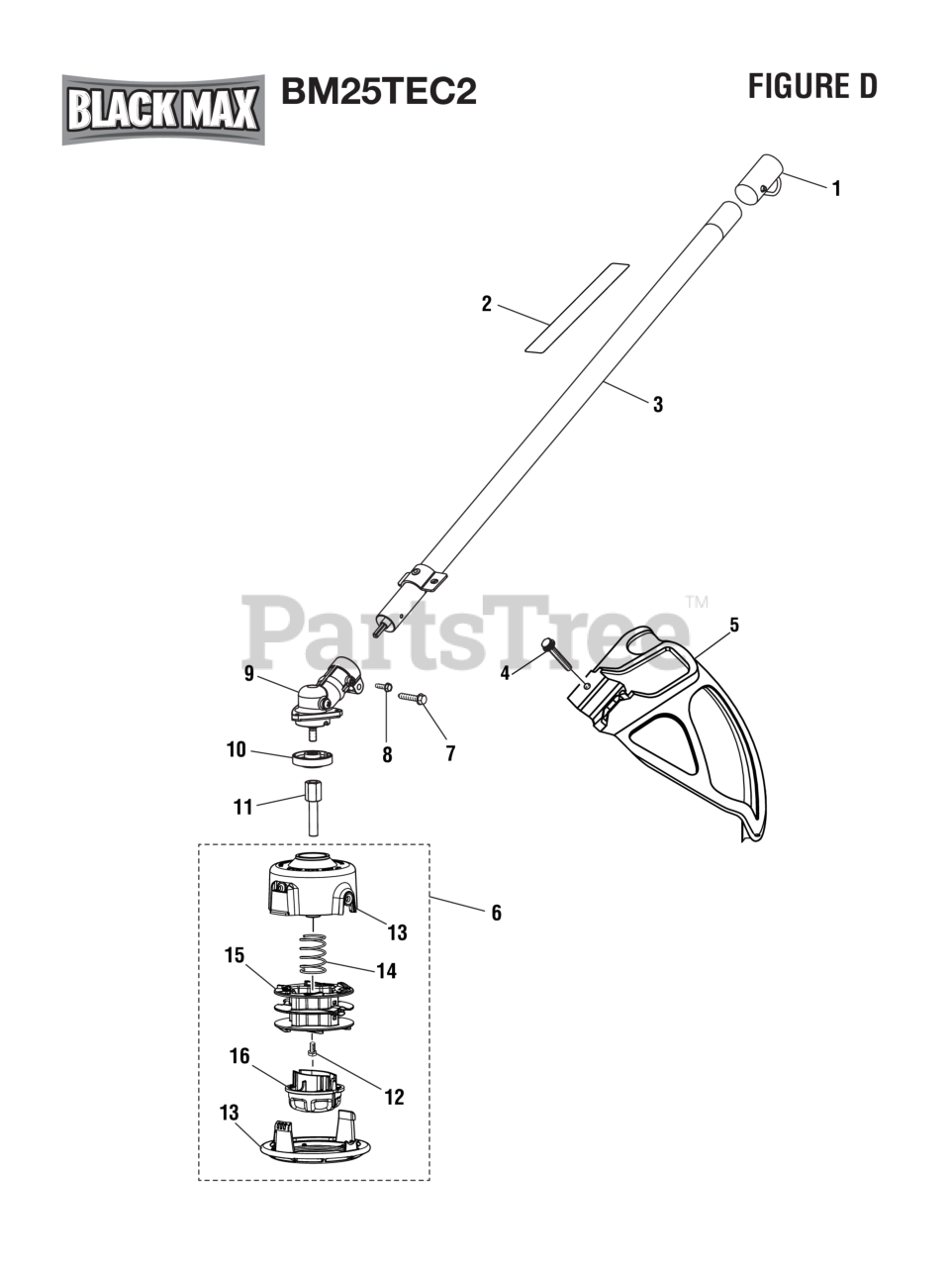

FIGURE D Parts Diagram

  • Title

1

Homelite 518019004

Hanger Cap

$1.99

$

In Stock, Qty 6

0

2

Homelite 940657165

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 205309006

Straight Shaft Assembly

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

5

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

$11.99

$

In Stock, only 1 left!

0

6

Homelite 309034012

Trimmer Head Assembly (.095)

$

$

Currently unavailable

7

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

8

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

9

Homelite 308210015

Gear Head Assembly

$62.99

$

Usually ships in 3-7 days

0

10

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 678019004

Trimmer Head Shaft Adaptor

$4.99

$

In Stock, only 1 left!

0

12

Homelite 660649001

Screw (5/16 x 1/2 in., Left Hand)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$15.99

$

Usually ships in 3-7 days

0

14

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

15

Homelite 308924002

Spool w/ Line (.095)
(Superseded to 308924001)

$

$

Not available

16

Homelite 518803005

Bump Knob

$

$

Currently unavailable
