BM 25 TEC (090309033) - Black Max String Trimmer, Rev 01 (2019-01) Figure A Parts Diagram

String Trimmer, Rev 01

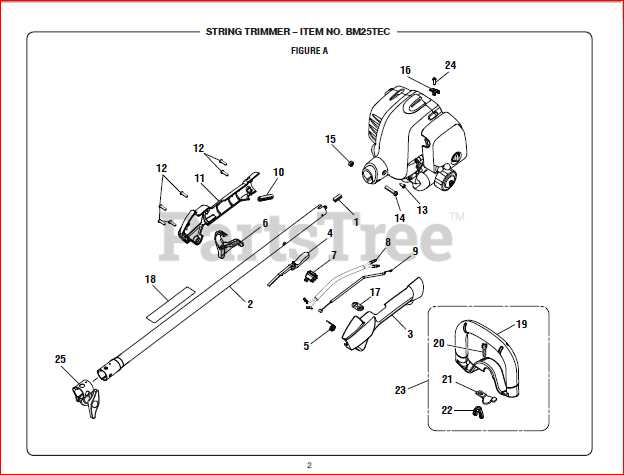

Figure A Parts Diagram

  • Title

1

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 308159030

Upper Shaft Assembly

Note: Inc. Key Nos. 18 & 25

$20.99

$

In Stock, only 1 left!

0

3

Homelite 518122001

REAR HANDLE SUPPORT
(Superseded to 983621001)

$4.49

$

Usually ships in 3-7 days

0

4

Homelite 518125008

Trigger Lock

$

$

Not available

5

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, only 4 left!

0

6

Homelite 518124008

Trigger

$

$

Not available

7

Homelite 760700001

On/Stop Switch

$4.49

$

In Stock, only 1 left!

0

8

Homelite 308863029

Lead Assembly

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 308225003

CABLE, THROTTLE

$2.99

$

In Stock, only 3 left!

0

10

Homelite 518210004

Corrugated Tube (225 mm)
(Superseded to 983632003)

$

$

Not available

11

Homelite 518123001

REAR HANDLE COVER
(Superseded to 983622001)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

13

Homelite 660669001

Screw (#8-16 x 1/2 in., Tri-Lobular)

$1.49

$

In Stock, only 3 left!

0

14

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

16

Homelite 638133001

THROTTLE CABLE CLAMP
(Superseded to 985255001)

$

$

Not available

17

Homelite 940864003

On/Stop Label

$

$

Not available

18

Homelite 940657164

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 526760001

Front Handle w/Grip

$17.99

$

In Stock, only 1 left!

0

20

Homelite 660857001

Bolt (1/4-20 x 1 in., Square Hd.)
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

21

Homelite 639167001

Front Handle Clamp

$3.49

$

Usually ships in 3-7 days

0

22

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

23

Homelite 308056009

Front Handle Assembly

Note: Inc. Key Nos. 19-22

$22.99

$

In Stock, only 1 left!

0

24

Homelite 660734001

Screw (M4 x 16 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 3 left!

0

25

Homelite 311156003

Boom Clamp Assembly

$2.49

$

Usually ships in 3-7 days

0

Homelite 995000145

Operator's Manual

Note: Not Shown

$

$

Not available
