BM 15133 - Black Max 1500 PSI Pressure Washer General Assembly Parts Diagram

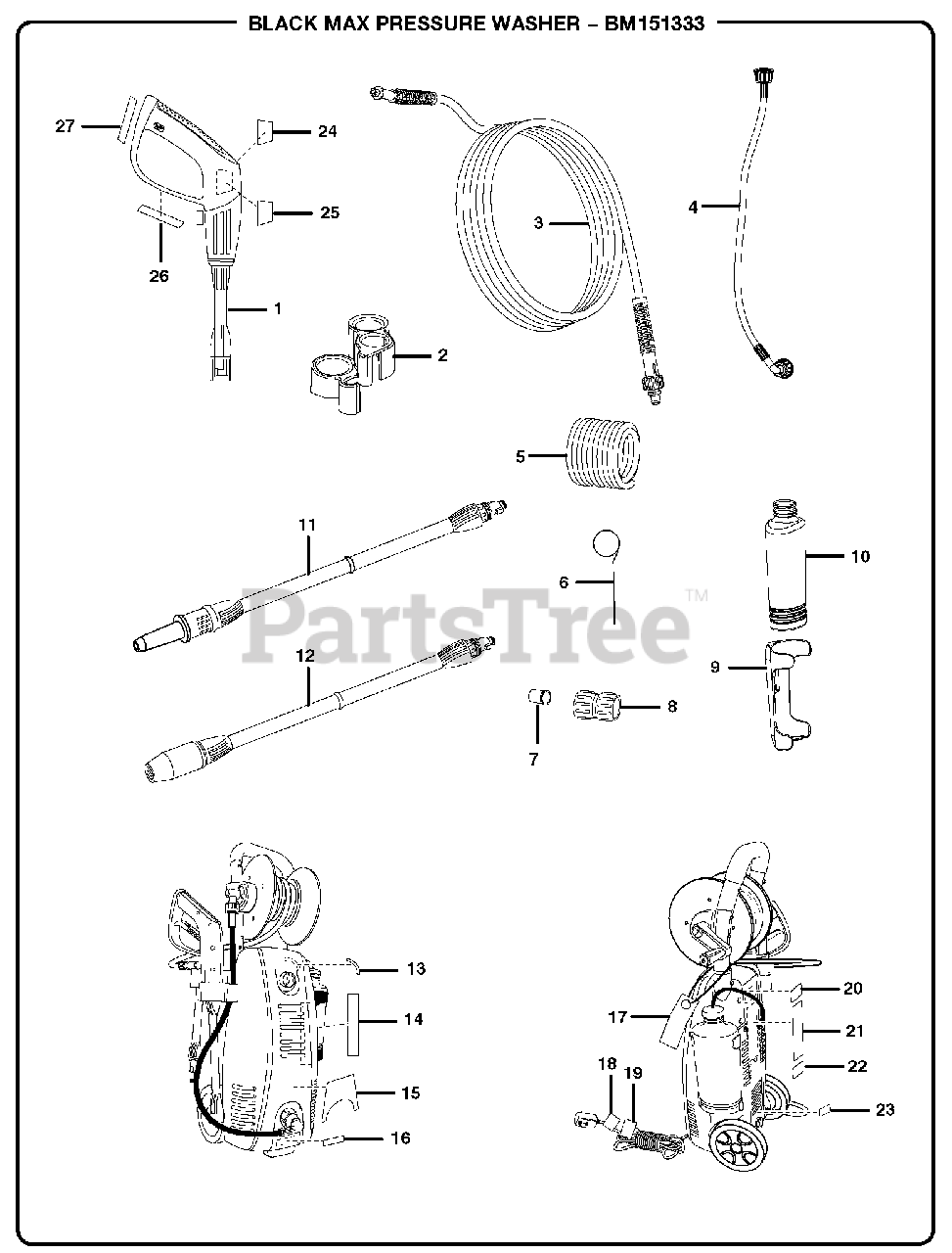

1500 PSI Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 308760024

Trigger Handle

$

$

Currently unavailable

2

Homelite 308494039

Wand and Trigger Storage Bracket

$

$

Currently unavailable

3

Homelite 308835033

High Pressure Hose

$

$

Currently unavailable

4

Homelite 308907010

High Pressure Extension Hose

$

$

Currently unavailable

5

Homelite 308907010

High Pressure Hose (for Hose Reel)

$

$

Currently unavailable

6

Homelite 678775002

Nozzle Cleaning Tool

$

$

Not available

7

Homelite 308103011

Water Inlet Filter

$

$

Not available

8

Homelite 310423003

Garden Hose Coupler

$

$

Currently unavailable

9

Detergent Tank Holder

$

$

Not available

10

Homelite 580875005

Detergent Tank

$

$

Currently unavailable

11

Homelite 308311010

Turbo Spray Wand

$

$

Currently unavailable

12

Variable Fan Spray Wand

$

$

Not available

13

Homelite 940698014

On/Off Label

$

$

Currently unavailable

14

Homelite 940734081

Quick Start Label

$

$

Currently unavailable

15

Homelite 940705117

Logo Label

$

$

Currently unavailable

16

Homelite 940780047

Hose Outlet Label

$

$

Currently unavailable

17

Homelite 940971066

Hang Tag

$

$

Currently unavailable

18

Homelite 940604004

CA Proposition 65 Label

$

$

Not available

19

Homelite 940324013

Danger cordwrap

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 940929001

Carry Handle Label

$

$

Currently unavailable

21

Homelite 940707078

Danger Label

$

$

Currently unavailable

22

Homelite 940678174

Data Label

$

$

Currently unavailable

23

Homelite 940928001

Hose Inlet Label

$

$

Currently unavailable

24

Homelite 940870006

Trigger Handle Logo Label

$

$

Currently unavailable

25

Homelite 940324022

Trigger Handle Warning Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 940779008

Trigger Handle Spec Label

$

$

Not available

27

Homelite 940654138

Trigger Handle Warning Label

$

$

Not available

Homelite 988000101

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable

Homelite 988000102

Replacement Parts List

Note: (Not Shown)

$

$

Currently unavailable
