BM 1227 MD (1696156-01) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2014) Handles & Controls Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

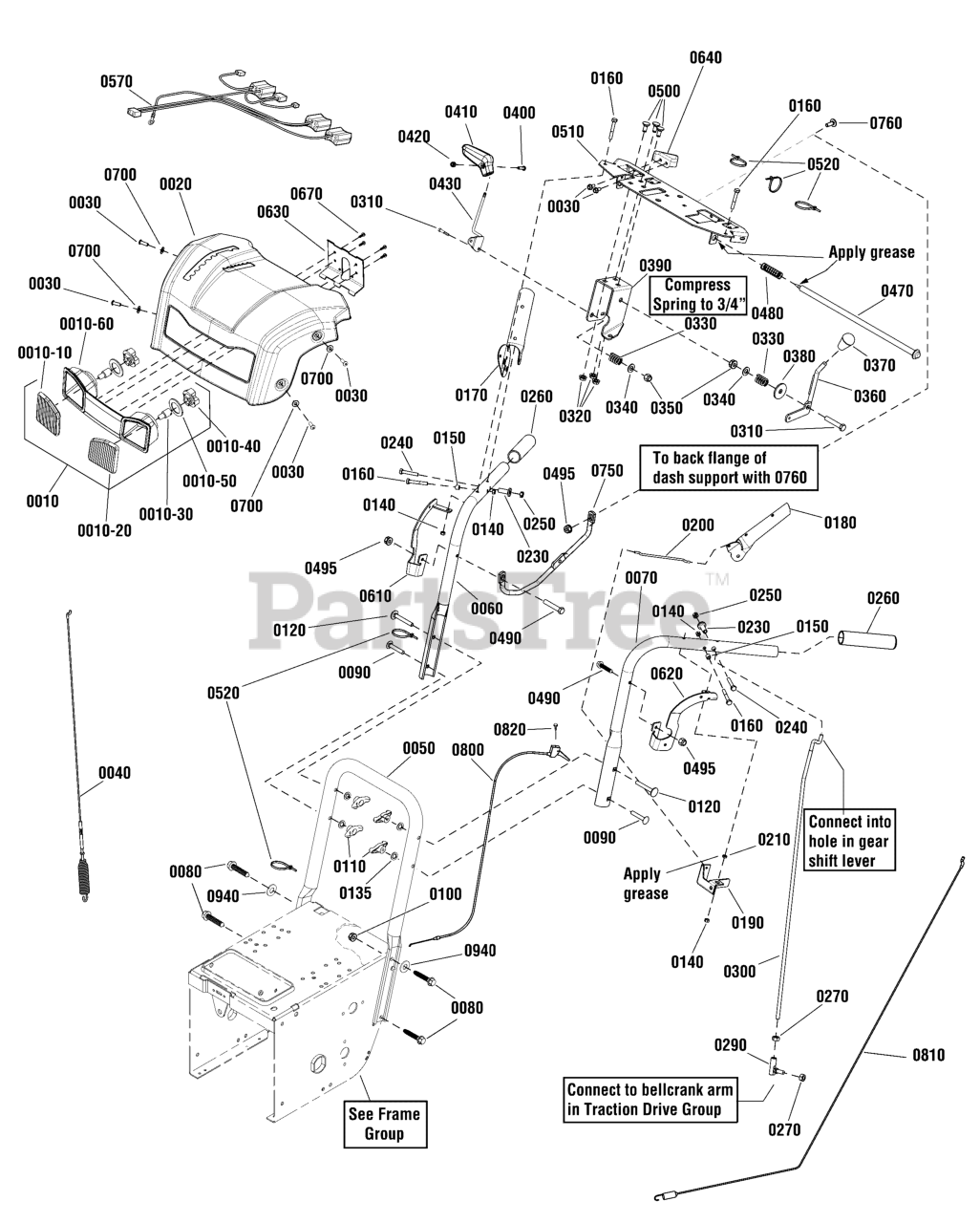

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1739686YP

LIGHT BAR ASSEMBLY

$90.99

$

Usually ships in 2-12 days

0

0010-10

LENS, R.H.

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-20

LENS, L.H.

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-30

Murray 1739689YP

LAMP, Halogen, 12V 20W

$

$

Not available

0010-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0010-50

GASKET, Single, Twin Light

Note: (Not a serviceable part, included with Ref. No. 0010-40)

$

$

Not available

0010-60

BEZEL, Light, Panel

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0020

Murray 1739860BSYP

COVER, Panel, Remote Deflector

$122.99

$

Usually ships in 2-12 days

0

0030

Murray 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 703221

CABLE & SPRING ASSEMBLY, Auger Drive, RH

$24.99

$

In Stock, only 4 left!

0

0050

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Murray 1737531AYP

HANDLE, Upper, R.H.

$59.99

$

Usually ships in 2-12 days

0

0070

Murray 1737532AYP

HANDLE, Upper, L.H.

$53.99

$

Usually ships in 2-12 days

0

0080

Murray 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0090

Murray 703235

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1935048SM

NUT, Hex Flange Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Murray 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0120

Murray 703168

BOLT, 5/16-18 x 2-1/4, Carriage, Curved Head

$3.99

$

In Stock, only 4 left!

0

0135

Murray 703587

WASHER, Internal Lock, 5/16

$4.49

$

In Stock, Qty 20+

0

0140

Murray 703232

NUT, Hex Lock ESNA Light 1/4-20

$4.49

$

In Stock, Qty 20+

0

0150

Murray 703137

SPACER

$6.99

$

Usually ships in 2-12 days

0

0160

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1 3/4, GR5

$3.99

$

In Stock, only 1 left!

0

0170

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0190

Murray 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, Hold Down, 5/32 Dia., 5-5/8 Lg

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 703124

SPACER, Powdered Metal

$3.99

$

Usually ships in 2-12 days

0

0230

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1753529YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0250

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1726317SM

HAND GRIP

$8.49

$

In Stock, only 1 left!

0

0270

Murray 703331

NUT, GR5, 5/16-24

$3.99

$

In Stock, Qty 20+

0

0290

Murray 703224

BALL JOINT, Quick Release

$21.99

$

In Stock, only 2 left!

0

0300

Murray 1737331YP

ROD, Speed Select

$19.99

$

In Stock, only 1 left!

0

0310

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0320

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0350

Murray 703117

NUT, Nylock, GR5, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0360

Murray 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0370

Murray 1732470SM

KNOB, Deflector Control

$19.99

$

In Stock, Qty 6

0

0380

Murray 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0390

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0430

Murray 703047

SPEED LEVER ASSEMBLY

$56.99

$

Usually ships in 2-12 days

0

0470

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression, 017/32 ID x 2-1/4 Lg

$5.49

$

In Stock, only 1 left!

0

0490

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

0495

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0500

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0510

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Murray 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0570

Murray 1755059YP

WIRING HARNESS

$59.99

$

Usually ships in 2-12 days

0

0610

Murray 1739663BMYP

BRACKET, Mounting, Dash, R.H.

$17.99

$

Usually ships in 2-12 days

0

0620

Murray 1739664BMYP

BRACKET, Mounting, Dash, L.H.

$22.99

$

Usually ships in 2-12 days

0

0630

Murray 1739666BMYP

BRACKET, Light Mounting

$15.99

$

Usually ships in 2-12 days

0

0640

Murray 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

0670

Murray 7091105YP

SCREW, Hex Washer Machine, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0750

Murray 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0760

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

0800

Murray 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0810

Murray 1737511YP

CABLE, Traction Drive

$24.99

$

In Stock, only 1 left!

0

0820

Murray 703134

BOLT, 10-24 x 1.5, GR5

$3.49

$

Usually ships in 2-12 days

0

0940

Murray 703350

WASHER, Flat, 5/16

$4.49

$

In Stock, only 1 left!

0
