BM 1227 MD (1696156-00) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2012) Auger Housing Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

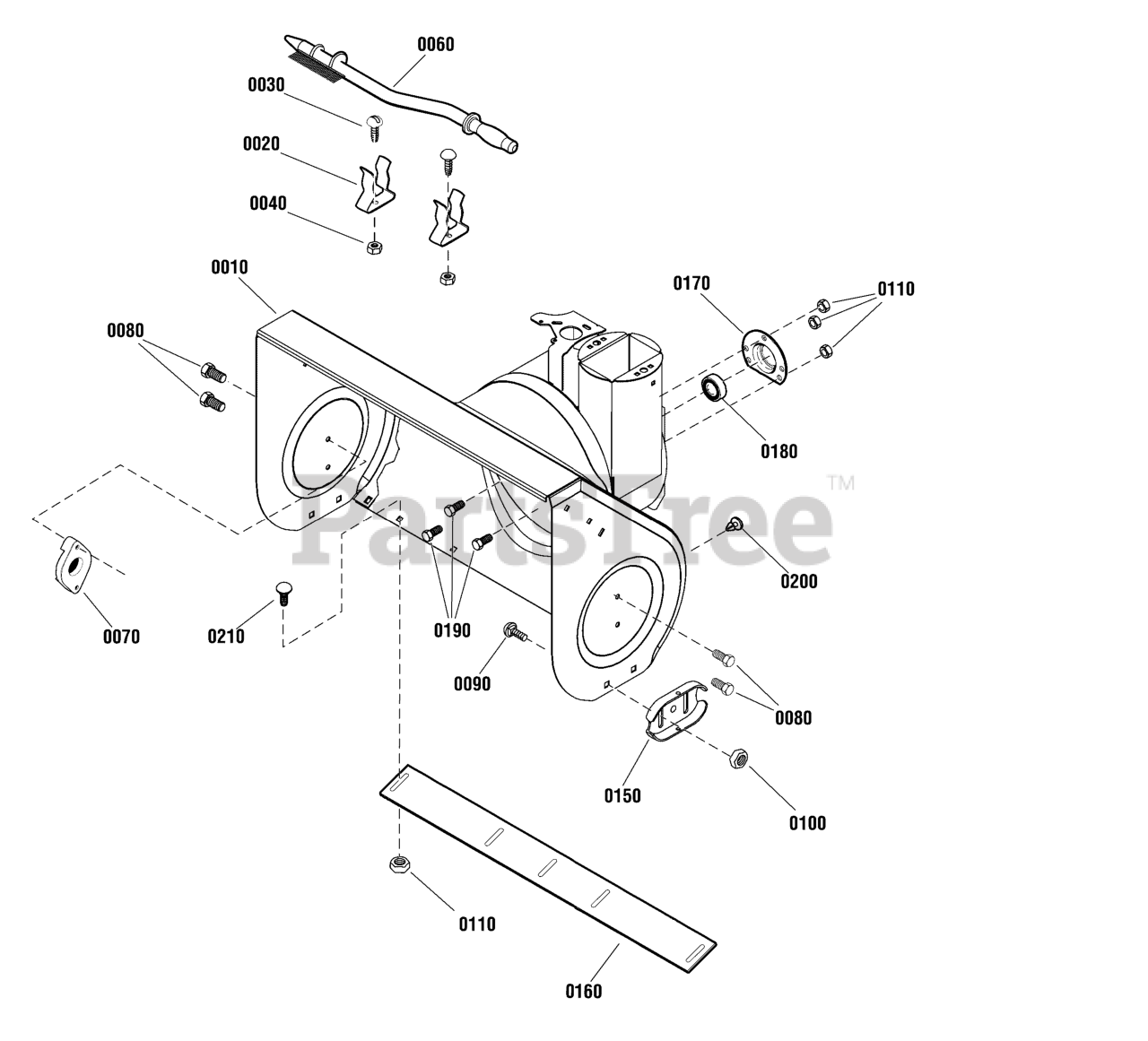

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687695YP

AUGER HOUSING KIT, 27"

$467.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, Spring

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 3 left!

0

0070

Murray 53757MA

BEARING, Flange

$9.99

$

In Stock, only 2 left!

0

0080

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Murray 703126

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 703333

NUT, Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0110

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1727854BMYP

SKID, Height Adjust, Reversible

$16.99

$

In Stock, Qty 20+

0

0160

Murray 1740745AYP

BLADE, Scraper
(Superseded to 1740745BMYP)

$

$

Not available

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG, Panel

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 703125

BOLT, Carriage, 5/16-18 x 5/8

$3.99

$

In Stock, only 2 left!

0
