BM 10711 D - Black Max Generator General Assembly Parts Diagram

Generator

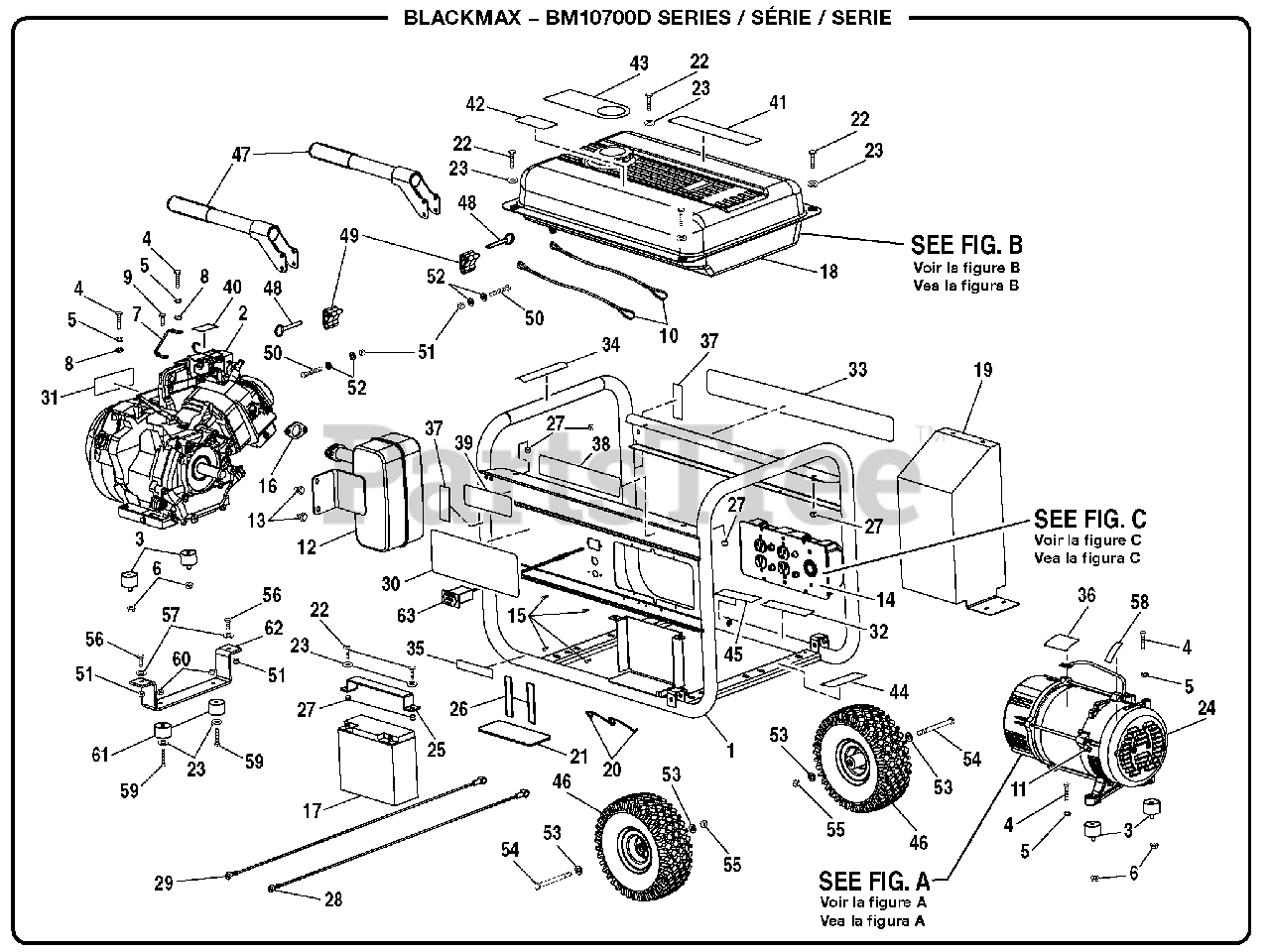

General Assembly Parts Diagram

  • Title

1

Homelite 308581011

Carrier Assembly

$

$

Currently unavailable

2

Engine (Honda GX390)

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in., Hex Hd.)

$2.49

$

In Stock, only 3 left!

0

5

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290404001

Ground Wire Assembly

$

$

Not available

8

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

11

Homelite 638703001

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 309322001

Muffler

$

$

Not available

13

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 290403001

Control Panel Assembly

$

$

Not available

15

Homelite 660598001

Screw (6-20 x 3/8 in.)

$2.99

$

In Stock, only 2 left!

0

16

Homelite 638499001

Muffler Gasket (supplied by Honda)

$

$

Not available

17

Homelite 750400001

Battery
(Superseded to 750400009)

$186.99

$

Usually ships in 3-7 days

0

18

Homelite 310711002

Fuel Tank Assembly

$

$

Not available

19

Homelite 638497001

Heat Shield

$

$

Not available

20

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 570631002

Battery Box Gasket

$

$

Not available

22

Homelite 661503005

Bolt (1/4-20 x 1 in., Hex Hd.)

$2.49

$

In Stock, only 2 left!

0

23

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

24

Homelite 310227001

Generator Head w/AVR

$

$

Not available

25

Homelite 308681002

Battery Hold Down Bracket

$

$

Not available

26

Homelite 570630002

Gasket (Battery Hold Down Bracket)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 290418001

Battery Cable (Red)

$

$

Not available

29

Homelite 290419001

Battery Cable (Black)

$

$

Not available

30

Homelite 940752003

Logo Label

$6.49

$

Usually ships in 3-7 days

0

31

Homelite 940734052

Starting Instructions Label

$

$

Not available

32

Homelite 940680015

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 940654069

Danger Label

$

$

Not available

34

Homelite 940974002

Fire Danger Label

$

$

Not available

35

Homelite 940708007

Engine Lubricant Label

$

$

Not available

36

Homelite 940678123

Data Plate Label

Note: (BM10700D)

$

$

Currently unavailable

Homelite 940678120

Data Plate Label

Note: (BM10700DR)

$

$

Currently unavailable

Homelite 940678091

Data Plate Label

Note: (BM10700DG)

$

$

Not available

37

Homelite 940514001

Locking Pin Label

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 940608001

Honda Label

$

$

Not available

39

Homelite 940617021

Electric Start Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940647033

Choke Label

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 940617022

Quick Start Label

$

$

Not available

42

Homelite 940515001

CPSC Label

$

$

Not available

43

Homelite 940971018

Hangtag (Engine Warning)

$

$

Not available

44

Homelite 940513001

Ground Warning Label

$10.99

$

Usually ships in 3-7 days

0

45

Homelite 940654103

Combustion Warning Label
(Superseded to 940947003)

$

$

Not available

46

Homelite 310223001

Wheel Assembly

$

$

Not available

47

Homelite 310224002

Handle Assembly

$

$

Not available

48

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

49

519728001

Handle Bracket Spacer

$

$

Not available

50

Homelite 660591004

Bolt (5/16-18 x 2-1/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 678259003

Lock Nut (5/16)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 638675003

Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 638386003

Washer (3/16 in.)

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in., Hex Hd.)

$5.49

$

Usually ships in 3-7 days

0

55

Homelite 678659001

Nut (3/8-16)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 660599001

Bolt (5/16-18 x 1 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 638675004

Flat Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940513002

Ground Label Icon

$2.99

$

Usually ships in 3-7 days

0

59

Homelite 661503003

Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

60

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

61

Homelite 570355001

Rubber Foot

$

$

Not available

62

Homelite 638706001

Front Foot

$17.99

$

Usually ships in 3-7 days

0

63

Homelite 310713001

Hour Meter (120 Volt)

$

$

Not available

Homelite 987000733

Operator's Manual

Note: (Not Shown)

$

$

Not available
