BM 10680 S - Black Max 6800 Watt Generator Figure C Parts Diagram

6800 Watt Generator

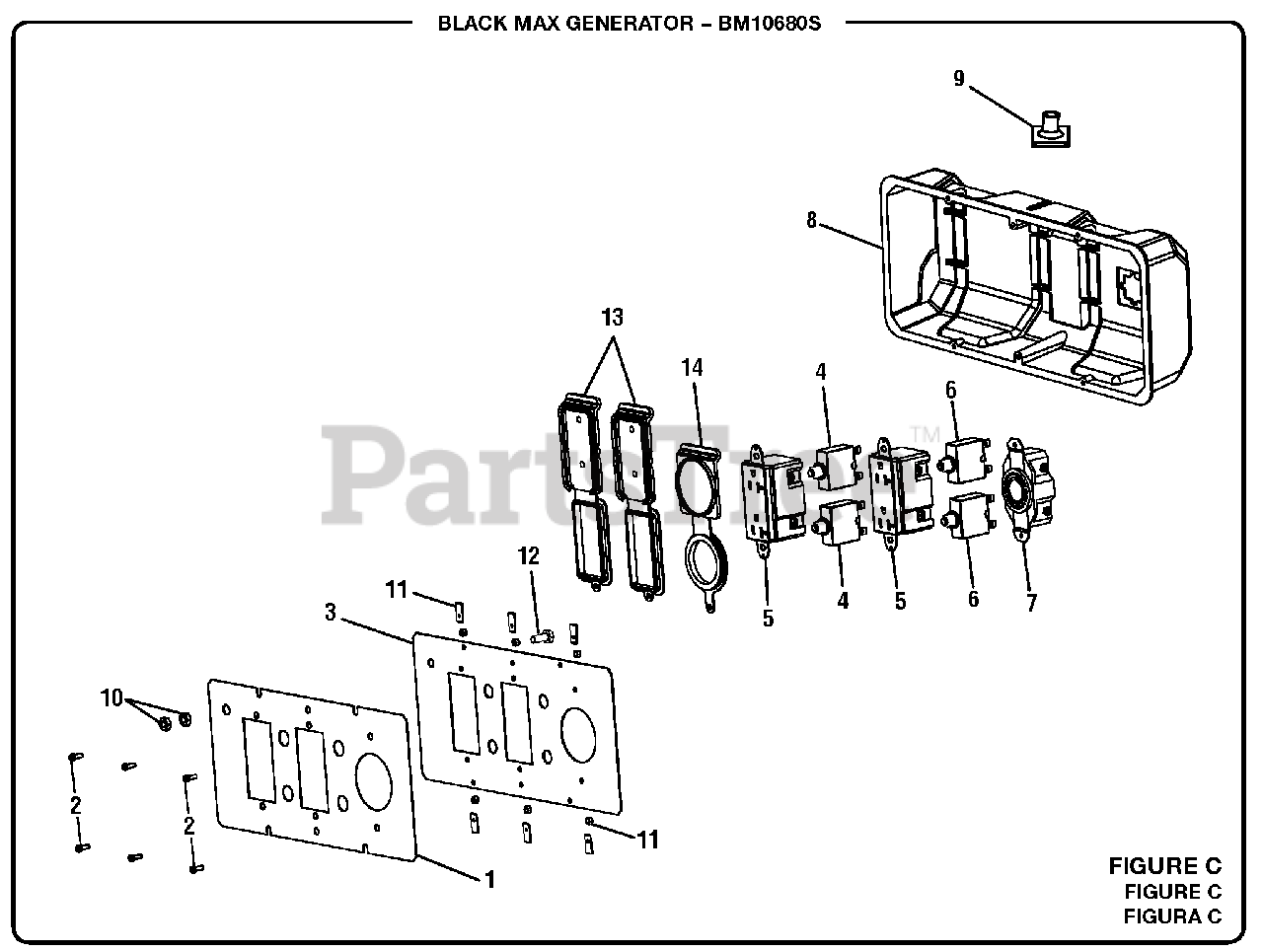

Figure C Parts Diagram

  • Title
1

Homelite 940780048

Label (Power Outlet)

$10.99

$

Usually ships in 3-7 days

0

2

Homelite 660598001

Screw (6-20 x 3/8 in.)

$2.99

$

In Stock, only 2 left!

0

3

Homelite 638496004

Front Panel

$

$

Not available

4

Homelite 780350001

Circuit Breaker (20 Amp, 125 Volt)

$

$

Not available

5

Homelite 290400006

120 Volt Duplex Receptacle

$

$

Not available

6

Homelite 780351001

Circuit Breaker (30 Amp)

$

$

Not available

7

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$25.99

$

In Stock, only 1 left!

0

8

Homelite 519707001

Control Box (Back Panel)

$

$

Not available

9

Homelite 570766003

Rubber Boot (Control Panel Assembly)

$3.49

$

Usually ships in 3-7 days

0

10

$

$

Not available

11

$1.49

$

In Stock, Qty 6

0

Homelite 678720001

Nut (6-32)

$1.49

$

In Stock, only 4 left!

0

12

Homelite 661503011

Bolt (1/4-20 x .675 in.)

$

$

Not available

13

Homelite 570412002

120 Volt Outlet Covers

$

$

Not available

14

Homelite 570412001

240 Volt Outlet Covers

$

$

Not available
