BM 08570 - Black Max Backpack Blower Figure A Parts Diagram

Backpack Blower

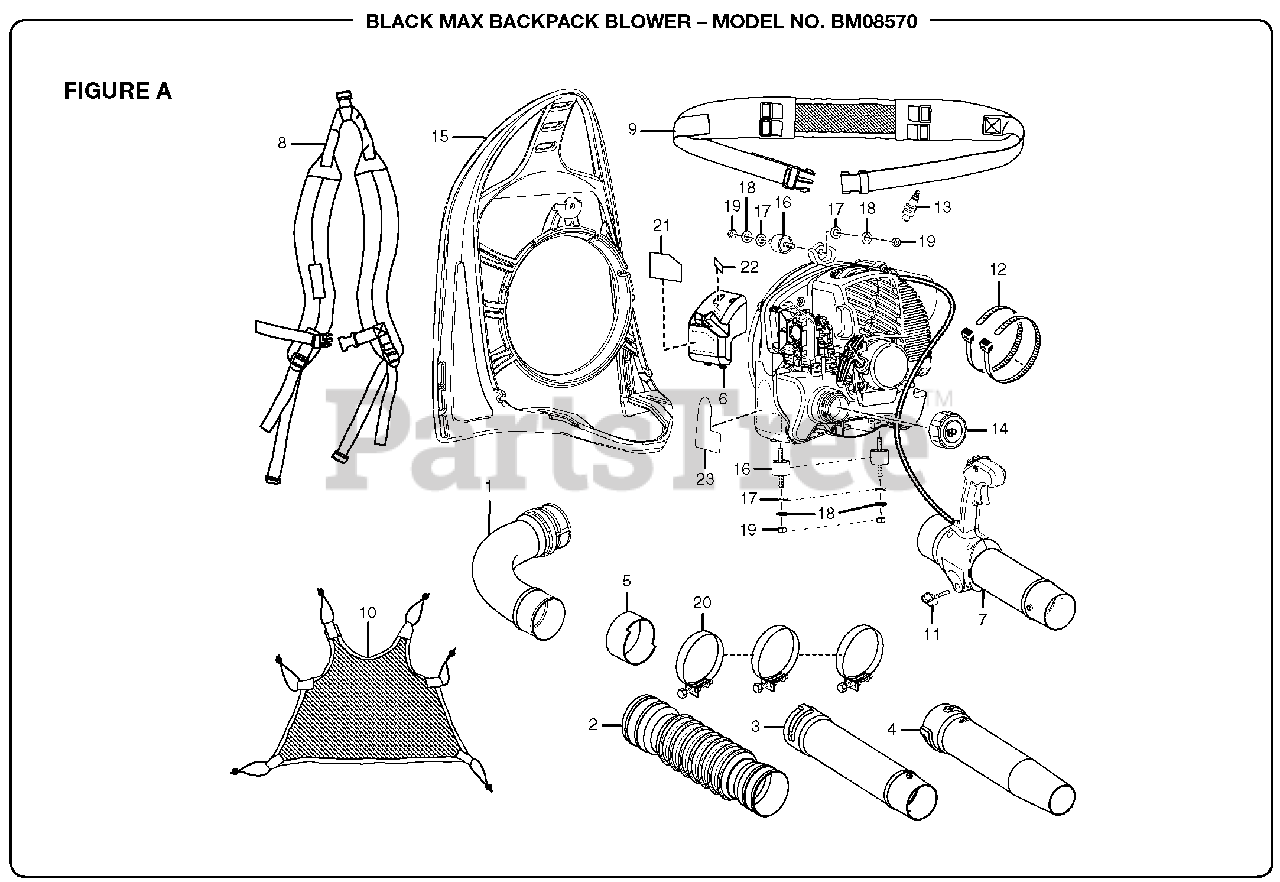

Figure A Parts Diagram

  • Title

1

Homelite 580694002

Elbow Tube

$

$

Not available

2

Homelite 580693002

Bellows

$5.49

$

Usually ships in 3-7 days

0

3

Homelite 570543002

Straight Tube (Upper Tube)
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 570564002

Nozzle (Lower Tube)

$

$

Not available

5

Homelite 518481002

Bushing

$

$

Not available

6

Homelite 518624003

Air Filter Cover

$

$

Not available

7

Homelite 580692003

Throttle Control Handle

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 900962003

Shoulder Harness Assembly

$

$

Not available

9

Homelite 900963001

Waist Harness

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 900964001

Mesh Backing

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 518273002

Throttle Control Handle Screw

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 900972001

Cable Tie

$

$

Not available

13

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

14

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

15

Homelite 570547003

Backpack Frame

$

$

Not available

16

Homelite 570546001

Vibration Isolators

$

$

Not available

17

Homelite 678186002

Washer

$

$

Not available

18

Homelite 678109001

Spring Washer
(Superseded to 83061)

$

$

Not available

19

Homelite 678190002

Hex Nut (1/4-20)

$1.99

$

In Stock, only 1 left!

0

20

Homelite 308645001

Tube Clamp

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 940734035

Starting Label

$

$

Not available

22

Homelite 940647032

Choke Label

$

$

Not available

23

Homelite 940627005

Warning Label

$

$

Not available

Homelite 987000504

Operator's Manual (960702003)

$

$

Currently unavailable
