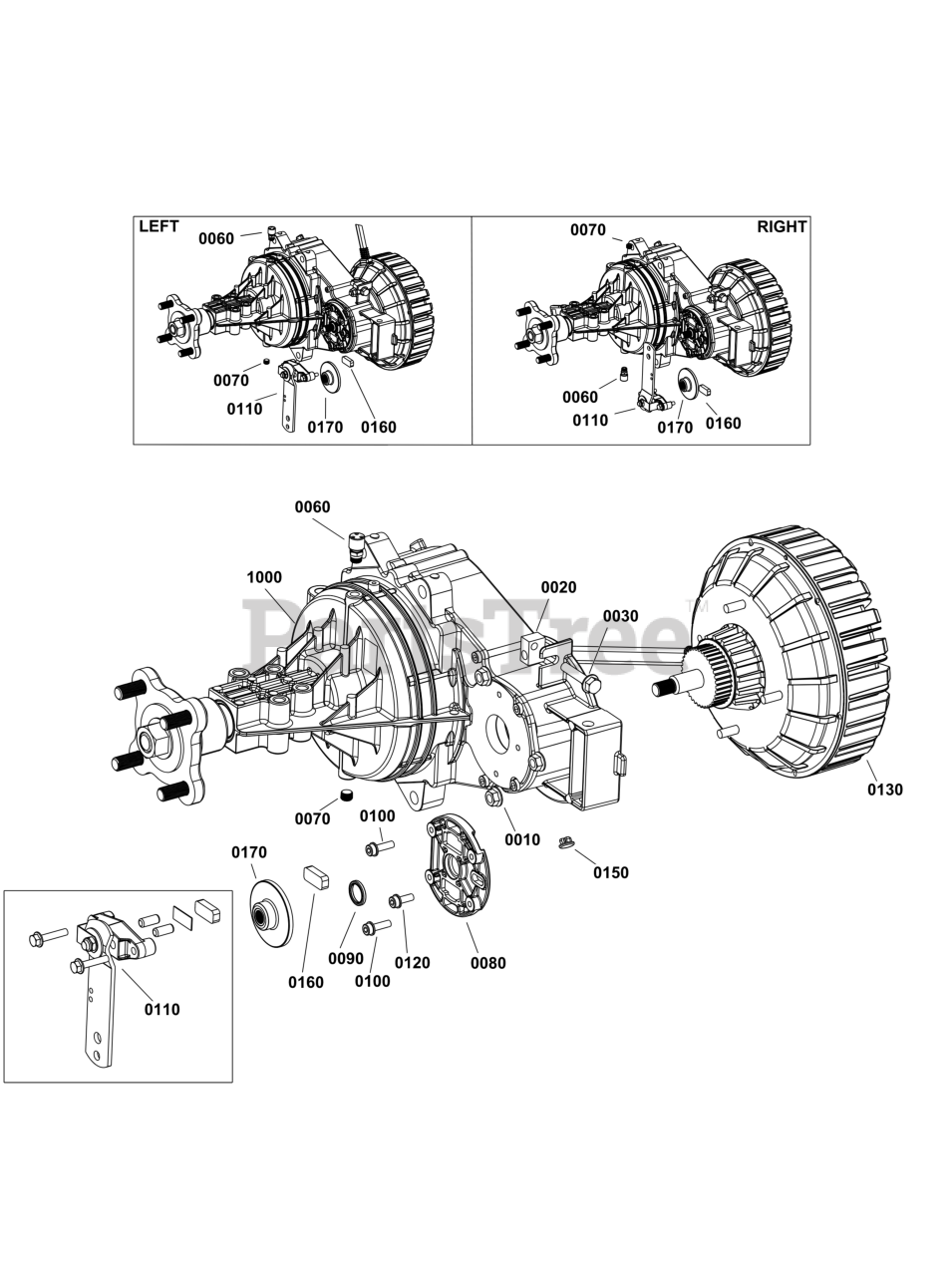

BlueVolt CZ1 (2691984-00) - Simplicity BlueVolt 48" Zero-Turn Mower, Electric Transmission Service Parts Parts Diagram

BlueVolt 48" Zero-Turn Mower, Electric

Transmission Service Parts Parts Diagram

  • Title

0010

Simplicity 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 11

0

0020

Simplicity 84007796

TENSIONER

$2.99

$

Usually ships in 2-12 days

0

0030

Simplicity 84007795

BOLT

$3.99

$

Usually ships in 2-12 days

0

0060

Simplicity 84007792

BREATHER

$27.99

$

Usually ships in 2-12 days

0

0070

Simplicity 84007791

PLUG

$2.49

$

Usually ships in 2-12 days

0

0080

Simplicity 84007790

ADAPTER

$

$

Currently unavailable

0090

Simplicity 84007788

SEAL

$

$

Currently unavailable

0100

Simplicity 84007787

SCREW, Flange

$2.99

$

Usually ships in 2-12 days

0

0110

Simplicity 84007782

BRAKE

$40.99

$

Usually ships in 2-12 days

0

0120

Simplicity 84007785

SCREW

$2.49

$

Usually ships in 2-12 days

0

0130

Simplicity 84007832

MOTOR

Note: ( Includes Studs, size M8 )

$1709.99

$

Usually ships in 2-12 days

0

0150

Simplicity 84007786

PLUG, Hole

$2.99

$

Usually ships in 2-12 days

0

0160

Simplicity 84007956

PAD, Brake

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 84007957

DISK

$6.99

$

Usually ships in 2-12 days

0

1000

Simplicity 84008296

TRANSMISSION, Assembly

$490.99

$

Usually ships in 2-12 days

0
