BlueVolt CZ1 (2691984-00) - Simplicity BlueVolt 48" Zero-Turn Mower, Electric Lift Group Parts Diagram

BlueVolt 48" Zero-Turn Mower, Electric

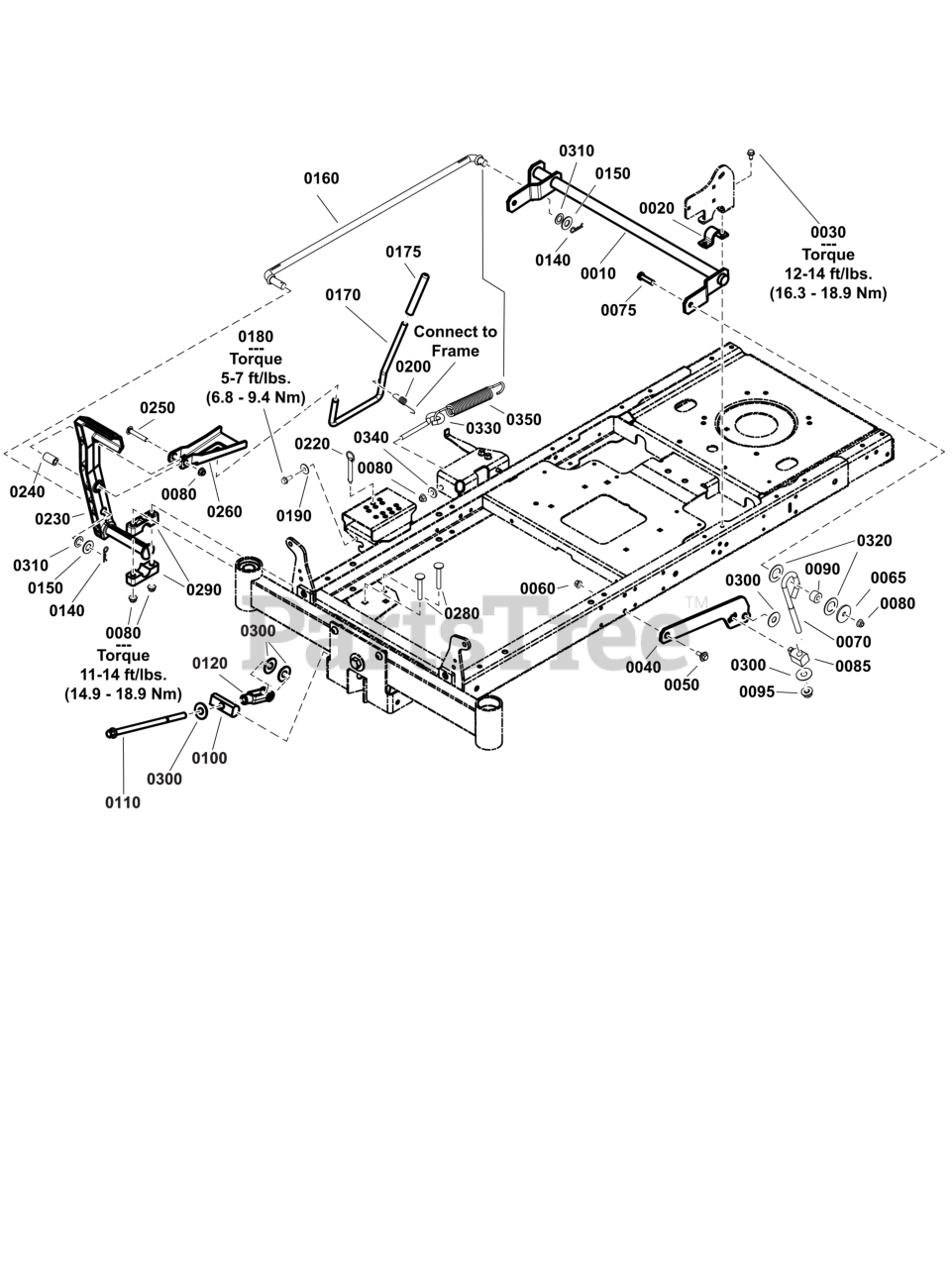

Lift Group Parts Diagram

  • Title

0010

Simplicity 1757958AYP

SHAFT

$165.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1720147BZYP

STRAP, 1 IN. DIA

$9.99

$

In Stock, only 1 left!

0

0030

Simplicity 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, Qty 6

0

0040

Simplicity 84007844

ARM

$

$

Currently unavailable

0050

Simplicity 1732426SM

BOLT-SHLDR 5/16-18 0.

$4.49

$

In Stock, only 1 left!

0

0060

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 10

0

0065

Simplicity 5025305SM

WASHER, .41 X 1.75 X

$3.99

$

In Stock, Qty 7

0

0070

Simplicity 84003818

ROD, Lift

$12.99

$

Usually ships in 2-12 days

0

0075

Simplicity 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 2 left!

0

0080

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 9

0

0085

Simplicity 84003820

TRUNNION

$6.99

$

In Stock, Qty 9

0

0090

Simplicity 5100334SM

SPACER

$7.49

$

In Stock, only 1 left!

0

0095

Simplicity 770225

NUT

$3.49

$

In Stock, Qty 12

0

0100

Simplicity 1757955YP

PIVOT

$13.99

$

In Stock, only 1 left!

0

0110

Simplicity 1757954YP

ROD

$18.99

$

In Stock, only 2 left!

0

0120

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL

$16.99

$

In Stock, only 1 left!

0

0140

Simplicity 703300

PIN, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0150

Simplicity 5025281SM

WASHER, 5/8" SAE

Note: ( 42" Model Only )

$3.99

$

In Stock, Qty 8

0

0160

Simplicity 1758121YP

ROD

$45.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5105717YP

ROD

$39.99

$

Usually ships in 2-12 days

0

0175

Simplicity 5021880SM

GRIP, FOAM

$5.99

$

In Stock, only 1 left!

0

0180

Simplicity 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 19

0

0190

Simplicity 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, only 4 left!

0

0200

Simplicity 1758283YP

SPRING, EXTENSION

$6.99

$

In Stock, only 1 left!

0

0220

Simplicity 5103021YP

HITCH PIN, 3/8 X 2-1/

$11.99

$

In Stock, only 2 left!

0

0230

Simplicity 1758232YP

PEDAL

$113.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1756612YP

BUSHING, DIFF. LOCK

$5.49

$

Usually ships in 2-12 days

0

0250

Simplicity 7900009SM

RHSSNB, 3/8-16 X 2-1/

$3.99

$

In Stock, only 1 left!

0

0260

Simplicity 1758284AYP

BRACKET

$18.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960615SM

BOLT-RD HD SQ NK 3/8

$5.49

$

In Stock, only 1 left!

0

0290

Simplicity 5100634SM

PIVOT BLOCK, PLASTIC

$7.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1716998SM

WASHER, Special, 0.575ID X 1.50 OD X.06

$5.49

$

Usually ships in 2-12 days

0

0310

Simplicity 84007849

WASHER

Note: ( 42" Model Only )

$10.99

$

Usually ships in 2-12 days

0

0320

Simplicity 84007850

WASHER

$23.99

$

Usually ships in 2-12 days

0

0330

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5"

Note: ( 48" Model Only )

$9.49

$

In Stock, only 1 left!

0

0340

Simplicity 704128

WASHER

Note: ( 48" Model Only )

$4.99

$

In Stock, Qty 13

0

0350

Simplicity 1760160YP

SPRING, Extension

Note: ( 48" Model Only )

$49.99

$

Usually ships in 2-12 days

0
