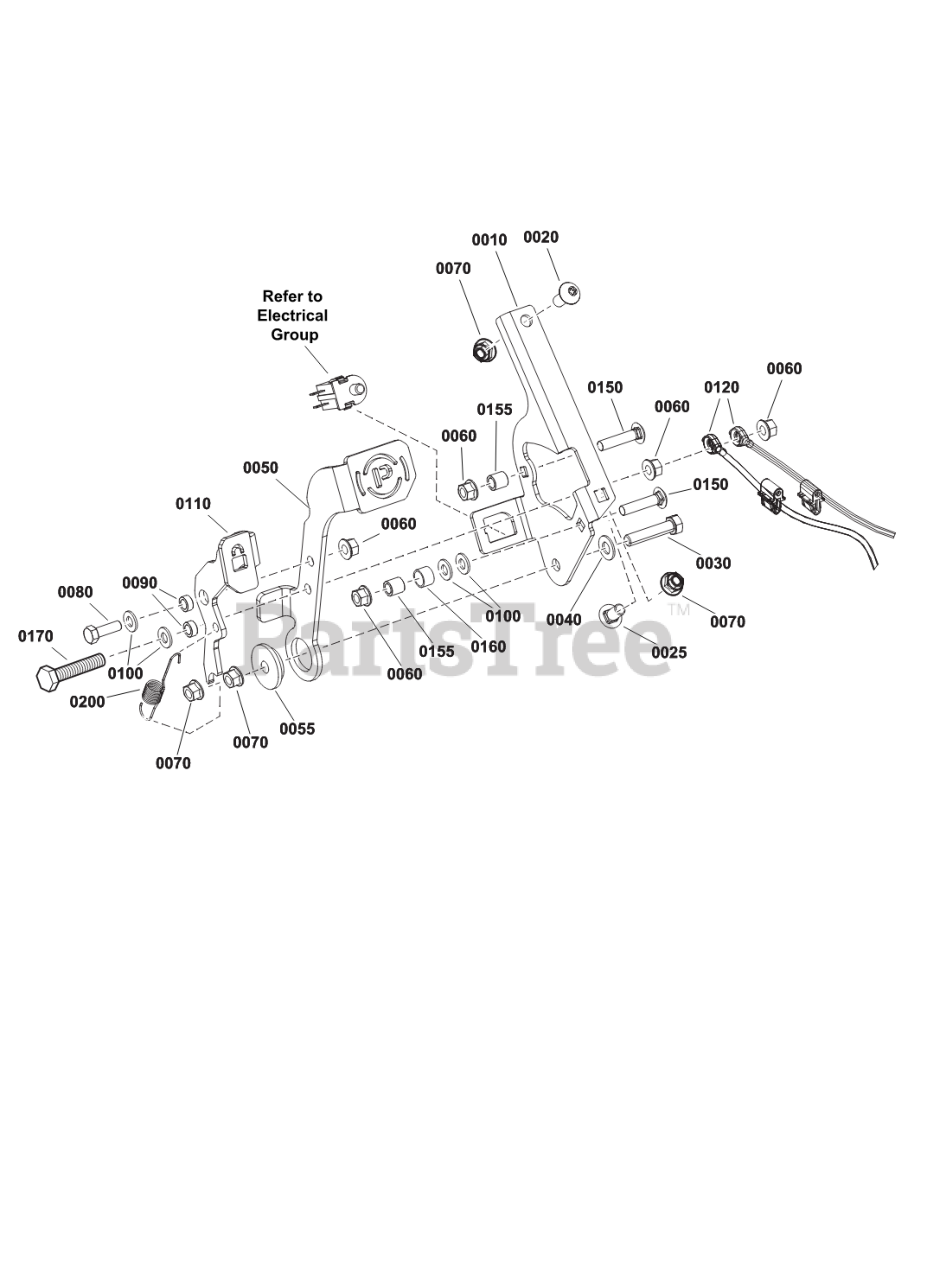

BlueVolt CZ1 (2691983-00) - Simplicity BlueVolt 42" Zero-Turn Mower, Electric Parking Brake Group Parts Diagram

BlueVolt 42" Zero-Turn Mower, Electric

Parking Brake Group Parts Diagram

  • Title

0010

Simplicity 84007837

BRACKET, Mounting

$13.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84004627

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0025

Simplicity 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 5025058X14YP

BOLT 3/8-16 X 1-3/4

$3.49

$

Usually ships in 2-12 days

0

0040

Simplicity 7090122YP

WASHER, Flat, 3/8 (SAE)
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0050

Simplicity 84007833

BRACKET, Brake

$15.99

$

Usually ships in 2-12 days

0

0055

Simplicity 1714255SM

SPACER, .406" ID, 1.50" OD, .350" Thick, PM

$6.49

$

In Stock, Qty 17

0

0060

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0080

Simplicity 703585

CAPSCREW, 5/16-18X1

$4.99

$

Usually ships in 2-12 days

0

0090

Simplicity 84007976

SPACER

$3.99

$

Usually ships in 2-12 days

0

0100

Simplicity 703350

WASHER

$4.49

$

In Stock, only 1 left!

0

0110

Simplicity 84007836

BRACKET

$13.99

$

Usually ships in 2-12 days

0

0120

Simplicity 84007831

CABLE, Brake

$19.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703296

BOLT, 5/16-18X1.5

$4.49

$

In Stock, only 4 left!

0

0155

Simplicity 5102148YP

SPACER, .33 X .50X.50

$4.99

$

Usually ships in 2-12 days

0

0160

Simplicity 84007823

SLEEVE

$3.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

0200

Simplicity 1758283YP

SPRING, EXTENSION

$6.99

$

In Stock, only 1 left!

0
