BlueVolt CZ1 (2691983-00) - Simplicity BlueVolt 42" Zero-Turn Mower, Electric Frame Group Parts Diagram

BlueVolt 42" Zero-Turn Mower, Electric

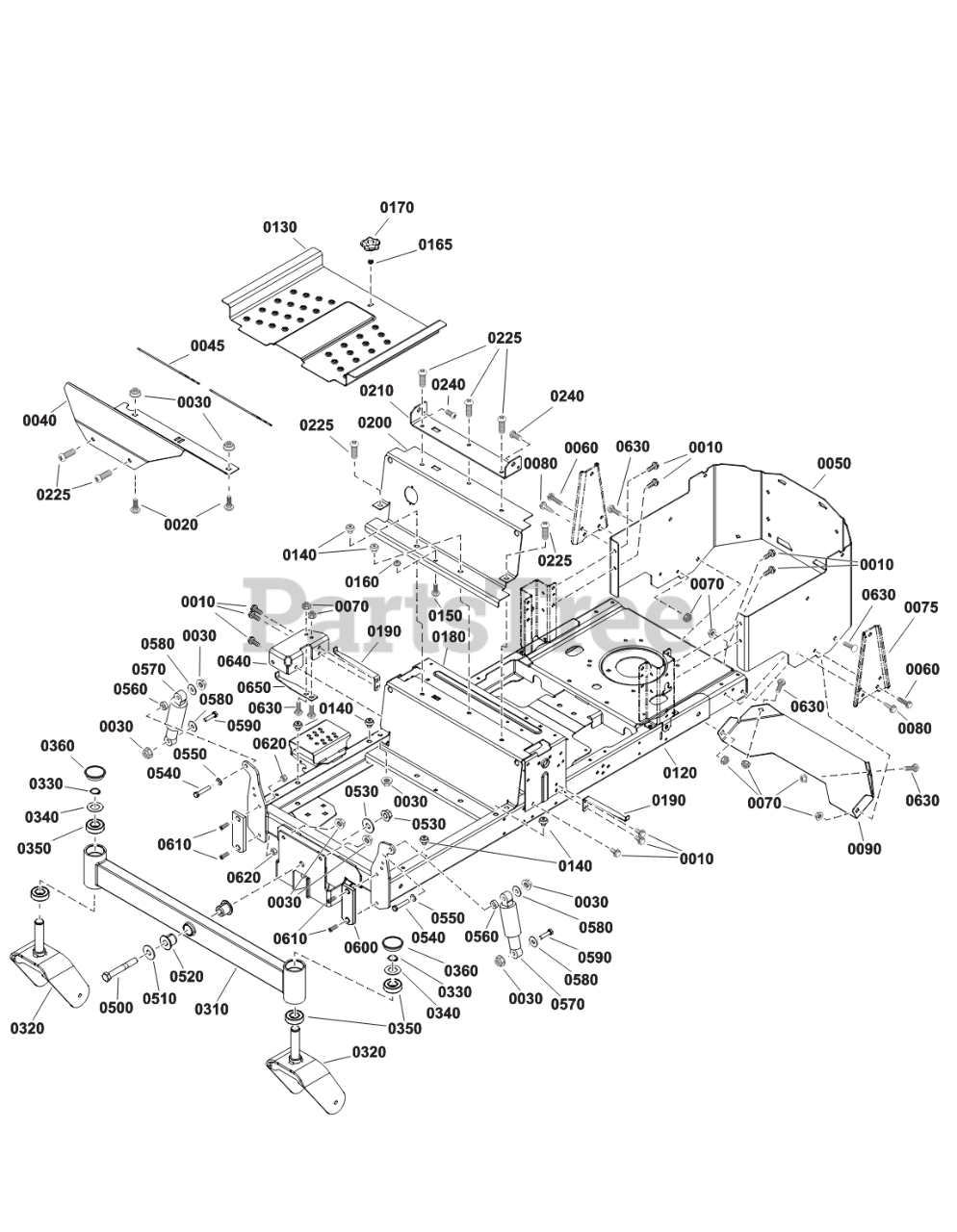

Frame Group Parts Diagram

  • Title

0010

Simplicity 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, only 3 left!

0

0020

Simplicity 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0040

Simplicity 84007834

FOOTREST

$17.99

$

Usually ships in 2-12 days

0

0045

Simplicity 5101004SM

SAFETY WALK

$9.49

$

Usually ships in 2-12 days

0

0050

Simplicity 84007839

BUMPER, Rear

$170.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703410

BOLT,5/16-18X1

$4.49

$

In Stock, only 2 left!

0

0070

Simplicity 703115

NUT

Note: ( Qty. 6 with 42" Model )

$3.49

$

In Stock, Qty 20+

0

0075

Simplicity 84007851

BRACKET

$10.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703228

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 84007842

BRACKET

$56.99

$

Usually ships in 2-12 days

0

0120

FRAME

$

$

Not available

0130

Simplicity 1757813CYP

PAN, Foot

$164.99

$

Usually ships in 2-12 days

0

0140

Simplicity 197546GS

MOUNT-VIBRATION

$7.99

$

In Stock, only 2 left!

0

0150

Simplicity 7090496YP

RHSSNB, 1/4C X1 GR5 Z

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703233

NUT, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0165

Simplicity 15X143MA

NUT,25-20 HEX FLG CTR

$4.99

$

In Stock, Qty 13

0

0170

Simplicity 707785

KNOB

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 84007065

CONTROL BRACKET

$145.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1758240AYP

BRACKET, Fender

Note: ( Qty. 2 with 42" Model )

$9.49

$

Usually ships in 2-12 days

0

0200

Simplicity 84007800

BRACKET

$20.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1760193CYP

BRACKET, Seat

$25.99

$

Usually ships in 2-12 days

0

0225

Simplicity 84004627

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 703932

SCREW, 5/16-18X.5

$4.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1761505CYP

AXLE, Front, Pivoting

$176.99

$

Usually ships in 2-12 days

0

0320

Simplicity 84003836

CASTER, Front

$95.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703993

RETAINER, EXT RING, 1

$3.49

$

In Stock, Qty 11

0

0340

Simplicity 703199

WASHER, 1

$4.99

$

In Stock, only 2 left!

0

0350

Simplicity 1758354YP

BEARING

$10.99

$

In Stock, only 2 left!

0

0360

Simplicity 5105524YP

CAP

$8.99

$

In Stock, only 3 left!

0

0500

Simplicity 707789

BOLT

$5.49

$

Usually ships in 2-12 days

0

0510

Simplicity 1960035SM

WASHER-0.625(0.64IDX1

$4.49

$

In Stock, only 2 left!

0

0520

Simplicity 1759234YP

BUSHING

$9.49

$

Usually ships in 2-12 days

0

0530

Simplicity 84003031

NUT

$3.49

$

Usually ships in 2-12 days

0

0540

Simplicity 703589

CAPSCREW, 3/8-16X2

$4.49

$

In Stock, only 1 left!

0

0550

Simplicity 703590

WASHER, FLAT, .406

$3.99

$

In Stock, Qty 19

0

0560

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

0570

Simplicity 1755279YP

SHOCK ABSORBER, 8IN

$69.99

$

Usually ships in 2-12 days

0

0580

Simplicity 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

0590

Simplicity 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 1 left!

0

0600

Simplicity 1759391YP

PAD-FRICTION

$13.99

$

Usually ships in 2-12 days

0

0610

Simplicity 5025594YP

SCREW, 5/16-18 X 1

$3.99

$

Usually ships in 2-12 days

0

0620

Simplicity 703590

WASHER, FLAT, .406

$3.99

$

In Stock, Qty 19

0

0630

Simplicity 703185

BOLT, Round Head, Short Square Neck

Note: ( Qty. 4 with 42" Model )

$3.49

$

In Stock, Qty 12

0

0640

Simplicity 84007993

BRACKET

Note: ( 48" Model Only )

$193.99

$

Usually ships in 2-12 days

0

0650

Simplicity 1760283YP

BRACE, Fender

Note: ( 48" Model Only )

$29.99

$

Usually ships in 2-12 days

0
