BlueVolt CZ1 (2691983-00) - Simplicity BlueVolt 42" Zero-Turn Mower, Electric 42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

BlueVolt 42" Zero-Turn Mower, Electric

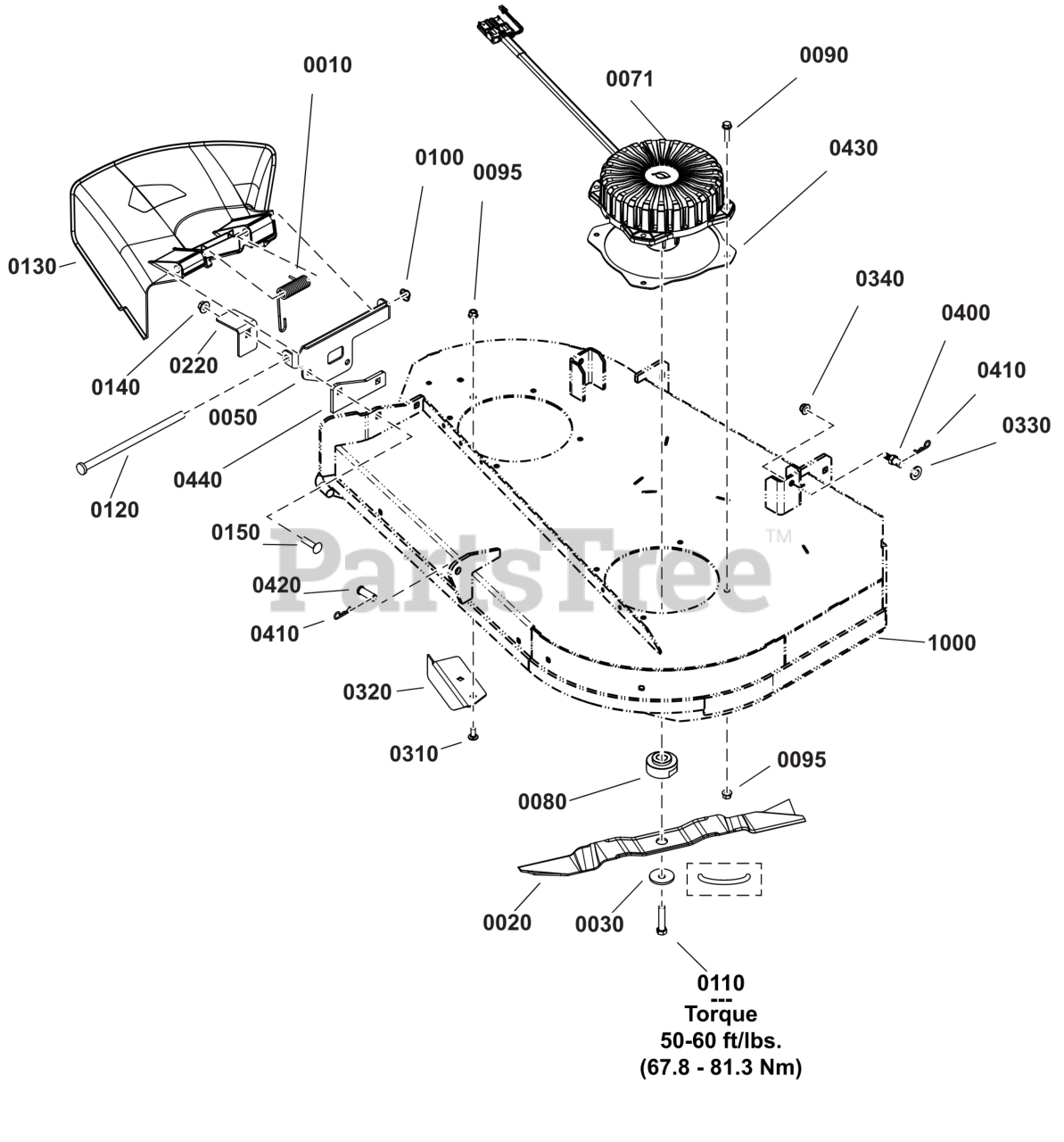

42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 7035813SM

SPRING, TORSION, SIDE

$24.99

$

In Stock, only 1 left!

0

0020

Simplicity 1752100AYP

BLADE, 42" Mower

$29.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0050

Simplicity 1758982AYP

BRACKET, DEFLECTOR

$42.99

$

In Stock, only 1 left!

0

0071

Simplicity 84007818

MOTOR

$1675.99

$

Usually ships in 2-12 days

0

0080

Simplicity 84007840

ADAPTER, Blade

$22.99

$

Usually ships in 2-12 days

0

0090

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4

$3.99

$

In Stock, only 1 left!

0

0095

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 703179

PUSHNUT, CAP TYPE

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1927531SM

CAPSCREW-HEX HD 7/16-

$5.49

$

In Stock, Qty 5

0

0120

Simplicity 7104640YP

ROD, Deflector

$28.99

$

In Stock, only 1 left!

0

0130

Simplicity 7104733YP

CHUTE, SIDE DISCHARGE

$87.99

$

In Stock, Qty 19

0

0140

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRA

$3.49

$

In Stock, only 2 left!

0

0150

Simplicity 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1758593BMYP

PROP, DEFLECTOR

$18.99

$

Usually ships in 2-12 days

0

0310

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 12

0

0320

Simplicity 84007848

BAFFLE

$10.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703853

WASHER, 0.516IDX1OD

$4.99

$

In Stock, Qty 20+

0

0340

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0400

Simplicity 704054

PIN, 3/8-16

$7.49

$

In Stock, Qty 20+

0

0410

Simplicity 703300

PIN, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0420

Simplicity 5025479YP

CLEVIS PIN, 1/2 X 1.3

$3.99

$

In Stock, only 2 left!

0

0430

PLATE, SPACER, MOTOR

$

$

Not available

0440

PLATE, SPACER DEFLECTOR

$

$

Not available

1000

Mower Deck, 42"

$

$

Not available
