Black Bear ZTR 44 (968999565) - Dixon 44" Black Bear Zero-Turn Mower, Kohler (2008) 44" DECK Parts Diagram

44" Black Bear Zero-Turn Mower, Kohler

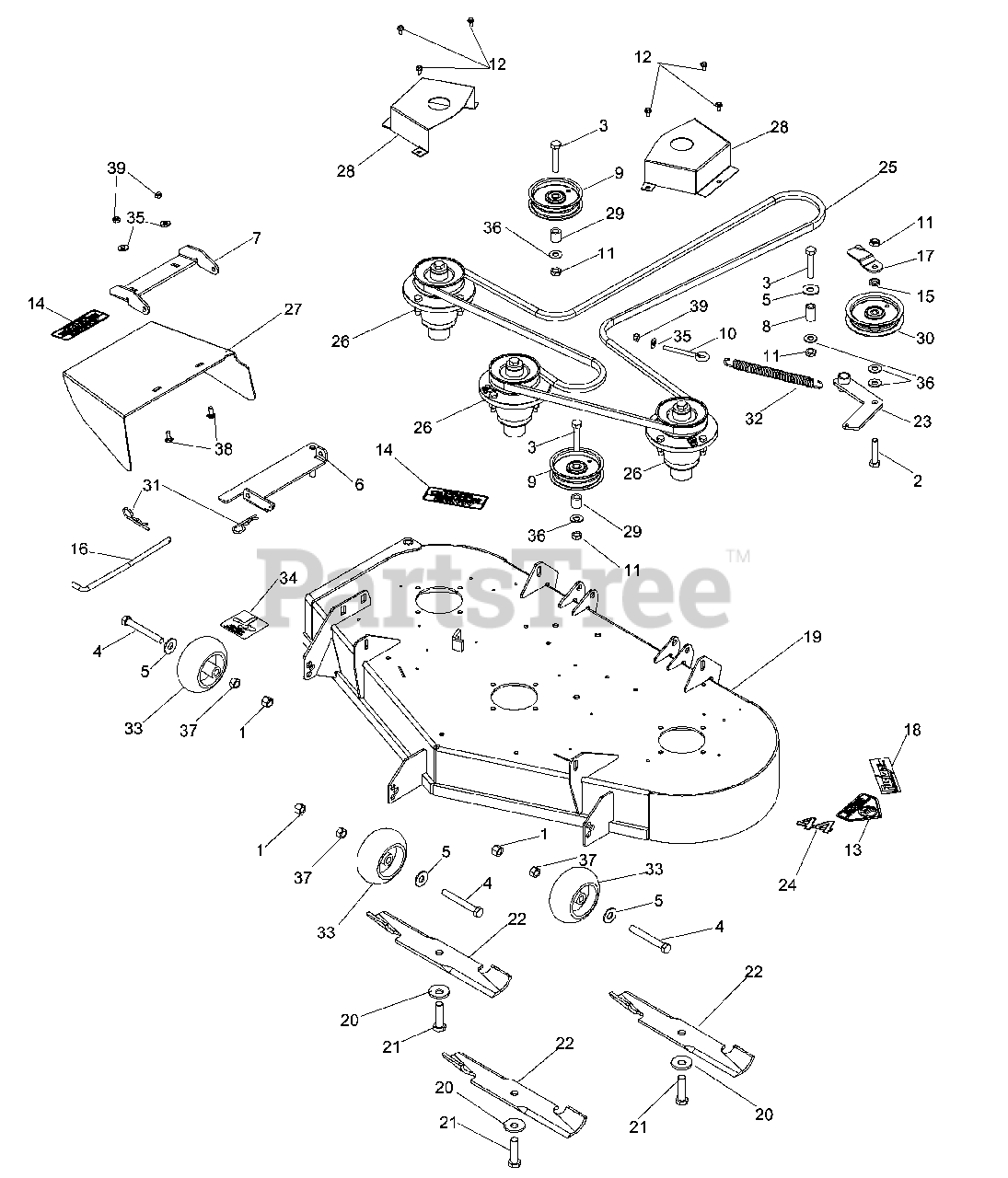

44" DECK Parts Diagram

  • Title

1

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Dixon 539107706

HEX SCREW-.5C X 2.25

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

4

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

5

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

6

Dixon 539114640

HINGE, 34, 44 - DK BLUE

$

$

Not available

7

Dixon 539114641

CHUTE 44, DK BLUE

$

$

Not available

8

Dixon 539115220

BUSHING DIXON 1080

$

$

Not available

9

Dixon 539115278

PULLEY IDLER

$37.99

$

Usually ships in 3-10 days

0

10

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

11

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

12

Dixon 539115640

1/4-20 X 1/2 HWH FORM SCR H

$0.99

$

Usually ships in 3-10 days

0

13

Dixon 539115697

WARNING LABEL DANGER

$

$

Not available

14

Dixon 539115717

DECAL, DANGER

$10.99

$

Usually ships in 3-10 days

0

15

Dixon 539115948

HD PULLEY SPACER

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

17

Dixon 539116351

BELT GUARD BLK

$

$

Not available

18

Dixon 539117707

DECAL, FUSION

$7.49

$

Usually ships in 3-10 days

0

19

Dixon 539118446

200-076 NUT 1/2-20

$

$

Not available

20

Dixon 539117838

BLADE WASHER

$3.99

$

In Stock, only 1 left!

0

21

Dixon 539117839

BLADE BOLT

$7.49

$

Usually ships in 3-10 days

0

22

Dixon 539117843

BLD 44" HI LIFT FUS

$

$

Not available

23

Dixon 539117888

IDLER ARM WLDT., BLACK

$

$

Not available

24

Dixon 539117934

DECAL, DECK 44"

$

$

Not available

25

Dixon 539118156

BELT

$

$

Not available

26

Dixon 539118241

SPINDLE ASM.

$728.99

$

Usually ships in 3-10 days

0

27

Dixon 539118678

DEFLECTOR MT. WLDT

$

$

Not available

28

Dixon 539118717

PULLEY GUARD

$36.99

$

Usually ships in 3-10 days

0

29

Dixon 539118915

SPACER

$7.49

$

Usually ships in 3-10 days

0

30

Dixon 539119555

IDLER PULLEY

$

$

Not available

31

Dixon 539120259

5/32 X 3.0 HAIR PIN COTT

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

33

Dixon 539121433

GUAGE WHEEL
(Superseded to 539107610)

$13.99

$

In Stock, Qty 20+

0

34

Dixon 539122249

DECAL, BELT ROUTING (18656)

$4.99

$

Usually ships in 3-10 days

0

35

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

36

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

37

Dixon 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

38

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

39

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
