Black Bear ZTR 44 (968999565) - Dixon 44" Black Bear Zero-Turn Mower, Kohler (2007) DRIVE Parts Diagram

44" Black Bear Zero-Turn Mower, Kohler

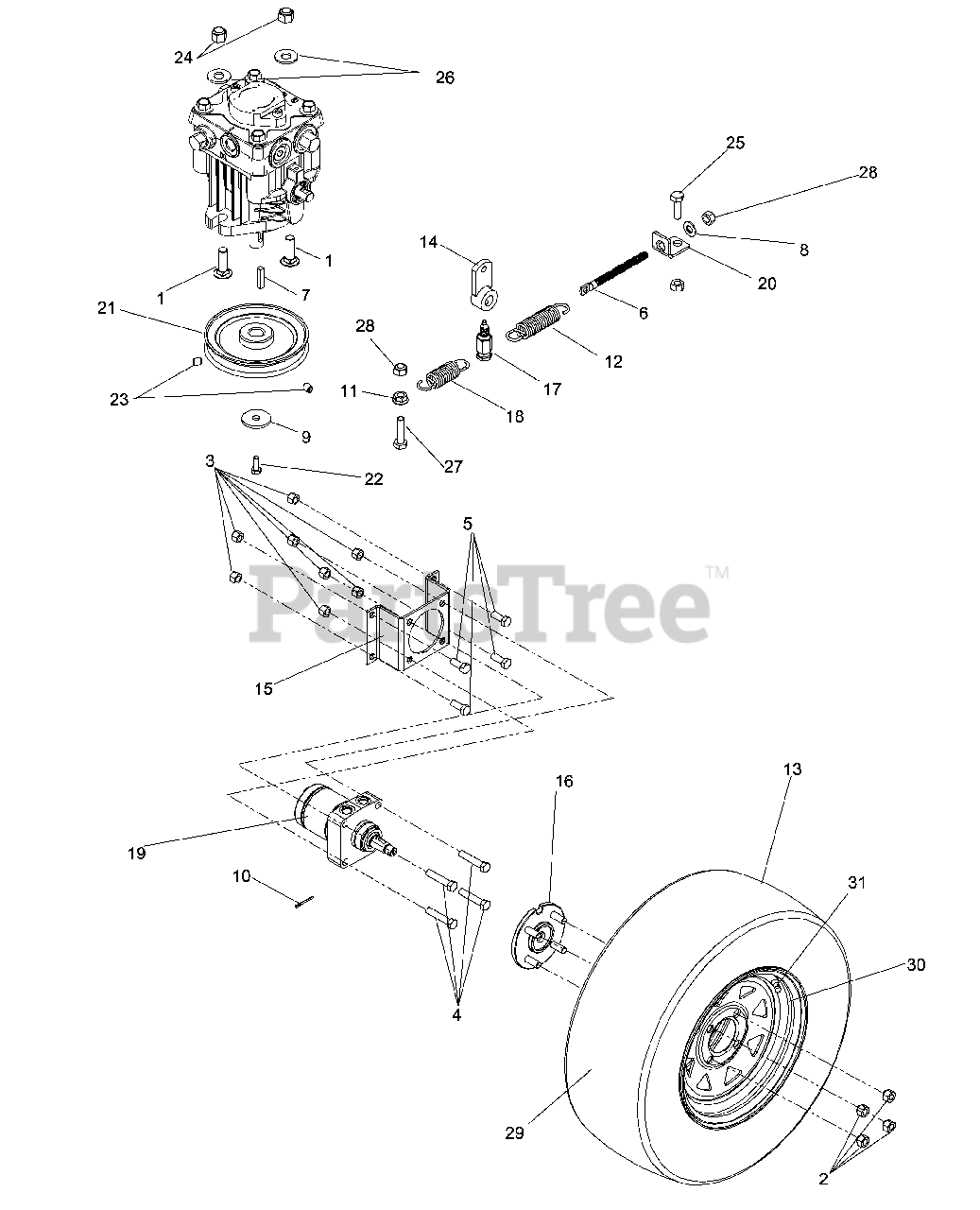

DRIVE Parts Diagram

  • Title

1

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

2

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

3

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

4

Dixon 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

5

Dixon 539108369

HCS 1/2-13 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539115370

BRAKE ROD

$46.99

$

Usually ships in 3-10 days

0

7

Dixon 539115451

KEY-3/16 DIA X 1

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539115533

5/16STD FL WASH TYPA
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539115582

5/16ID X 1/8THK WASHER

$3.99

$

In Stock, only 2 left!

0

10

Dixon 539115671

1/8DIAX1-1/2 COT PIN
(Superseded to 539990297)

$

$

Not available

11

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539116350

SPRING - 3.50

$9.49

$

In Stock, only 1 left!

0

13

Dixon 539117783

TIRE ASM 23X8.5-12

$188.99

$

Usually ships in 3-10 days

0

14

Dixon 539117816

CONTROL ARM DRILLED

$36.99

$

Usually ships in 3-10 days

0

15

Dixon 539117837

MT. MOTOR
(Superseded to 539132808)

$

$

Not available

16

Dixon 539101109

HUB.WHEEL.ZTR

$

$

Not available

17

Dixon 539117961

SET SCREW

$51.99

$

Usually ships in 3-10 days

0

18

Dixon 539117962

SPRING

$

$

Not available

19

Dixon 539121770

WHEEL MOTOR

$728.99

$

Usually ships in 3-10 days

0

20

Dixon 539121859

SPRING BRKT.

$12.99

$

Usually ships in 3-10 days

0

21

Dixon 539121895

PULLEY

$

$

Not available

22

Dixon 539127945

CAPSCREW HH 6MM X 16MM
(Superseded to 539107705)

$

$

Not available

23

Dixon 539976956

SET SCREW 5/16 NYLOC

$

$

Not available

24

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

26

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

28

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539117808

TIRE-REAR 23X8.5-12
(Superseded to 539107432)

$399.99

$

Usually ships in 3-10 days

0

30

Dixon 539117807

RIM 12 X 7
(Superseded to 539117783)

$188.99

$

Usually ships in 3-10 days

0

31

539912237

$

$

Not available
