Black Bear ZTR 34 - Dixon 34" Black Bear Zero-Turn Mower, 26hp Kawasaki (2006) MOWER DECK Parts Diagram

34" Black Bear Zero-Turn Mower, 26hp Kawasaki

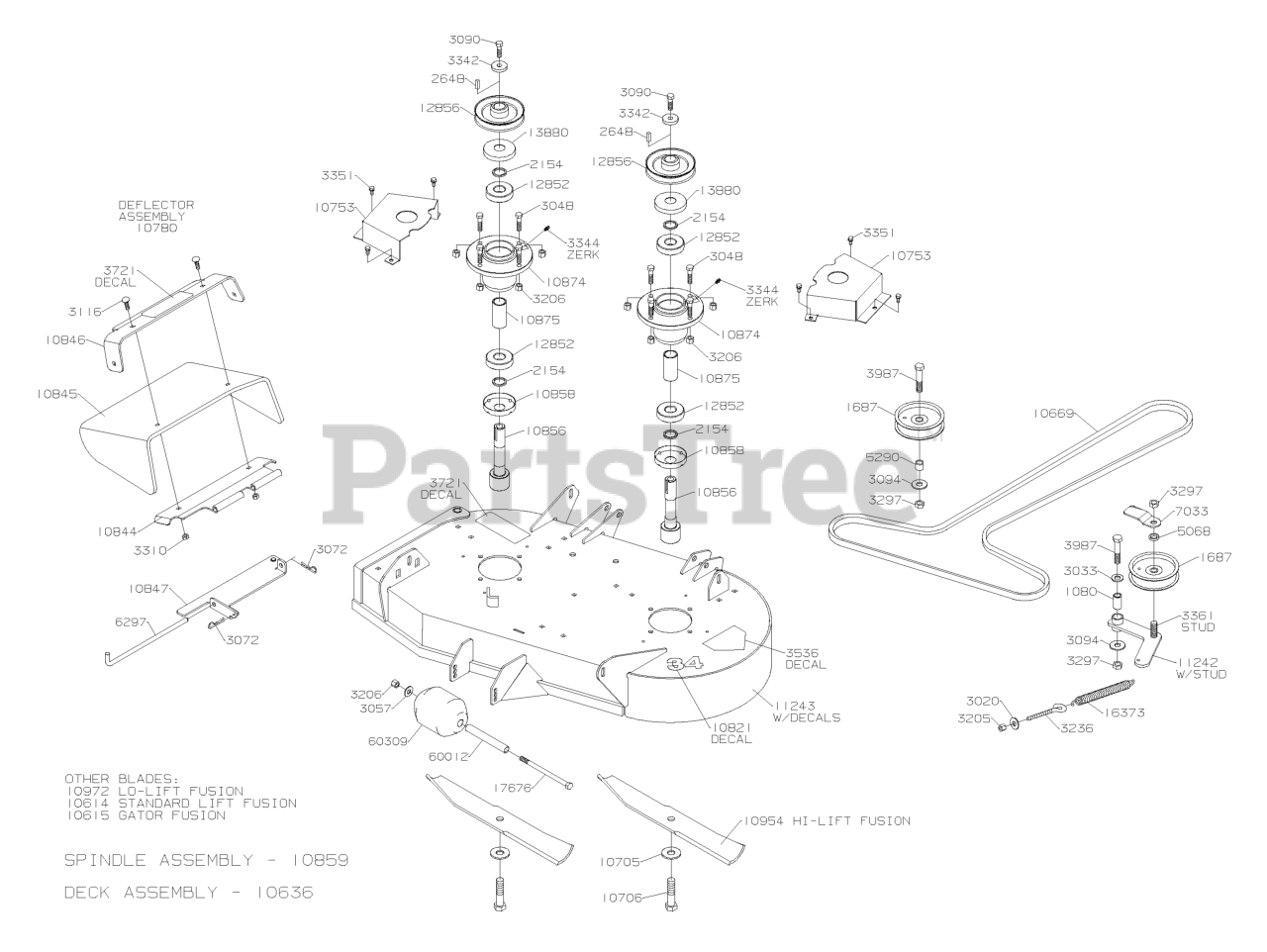

MOWER DECK Parts Diagram

  • Title

1080

1080

BUSHING

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5290

5290

BUSHING

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

10614

10614

BLD 34`STD LIFT FUSIO

$

$

Not available

10615

Dixon 10615

BLD 34" GATOR FUSION

$

$

Not available

10636

10636

DECK ASM. 34" B/B

$

$

Not available

10669

10669

BELT

$

$

Not available

10705

10705

BLADE WASHER

$

$

Not available

10706

10706

BLADE BOLT

$

$

Not available

10753

10753

PULLEY GUARD 34

$

$

Not available

10780

10780

DEFLECTOR ASM.

$

$

Not available

10821

10821

DECK DECAL 34`

$

$

Not available

10844

10844

PIVOT-DEFLECTOR

$

$

Not available

10845

10845

DEFLECTOR

$

$

Not available

10846

10846

DEFLECTOR MOUNT

$

$

Not available

10847

10847

DEFLECTOR MT. WLDT.

$

$

Not available

10856

10856

SHAFT SPINDLE

$

$

Not available

10858

10858

TRASH GUARD

$

$

Not available

10859

10859

SPINDLE ASM.

$

$

Not available

10874

10874

DECK HUB MACHINED

$

$

Not available

10875

10875

SPACER

$

$

Not available

10954

10954

BLD 34 HI-LIFT FUSION

$

$

Not available

10972

10972

BLD 34` LO LIFT FUS

$

$

Not available

11242

11242

IDLER ARM W/STUD

$

$

Not available

11243

11243

DECK ASM. 34" B/B

$

$

Not available

12852

12852

BEARING - 6305 - 2RS

$

$

Not available

12856

12856

PULLEY

$

$

Not available

13880

13880

TRASH GUARD

$

$

Not available

16373

16373

SPRING DECK BELT

$

$

Not available

17676

17676

BOLT 3/8 X 6 GR5

$

$

Not available

60012

60012

BUSHING

$

$

Not available

60309

60309

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available
