Black Bear ZTR 34 - Dixon 34" Black Bear Zero-Turn Mower, 26hp Kawasaki (2006) CHASSIS Parts Diagram

34" Black Bear Zero-Turn Mower, 26hp Kawasaki

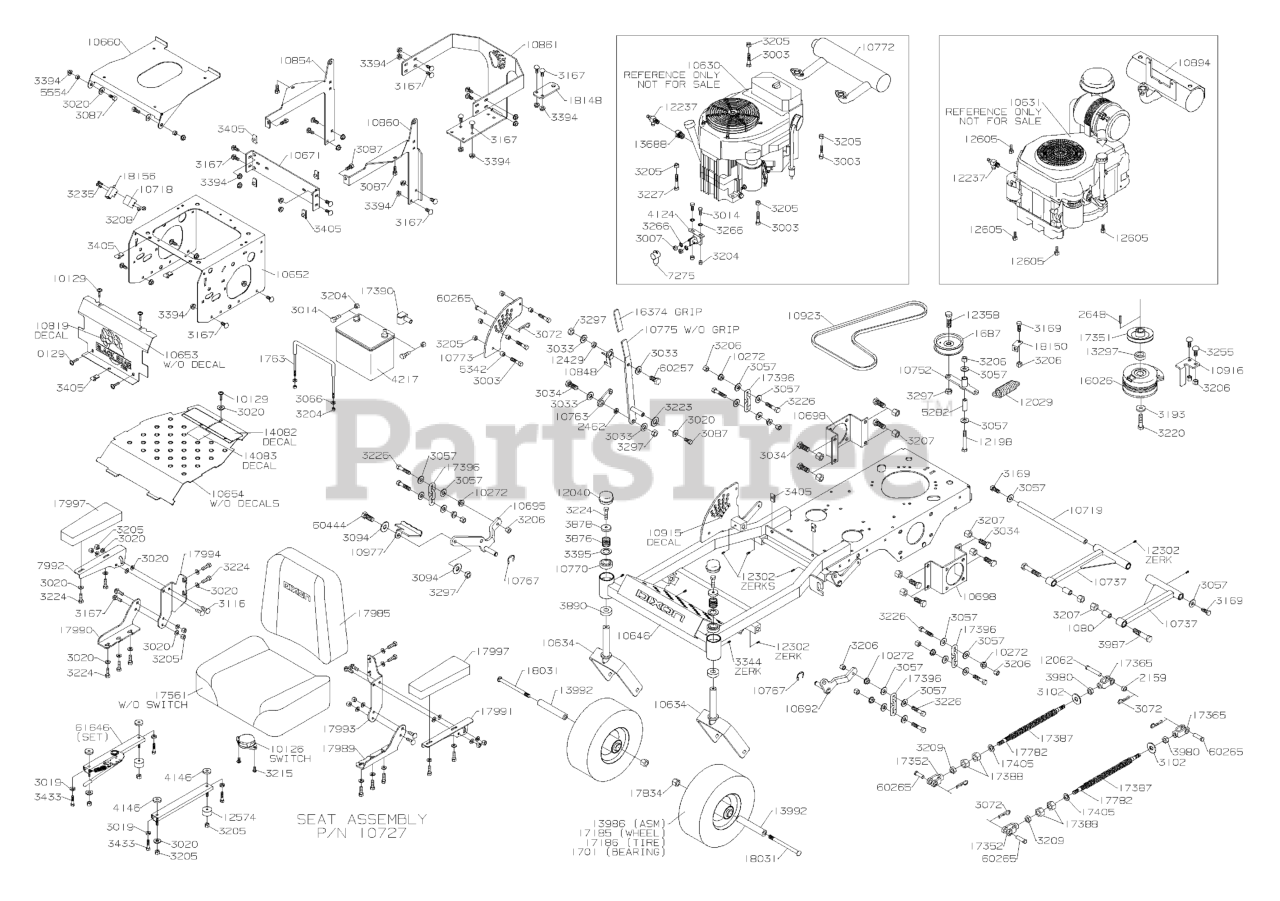

CHASSIS Parts Diagram

  • Title

1080

1080

BUSHING

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2462

2462

BLADE ADAPTOR

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3034

3034

1/2-13UNC X11/4HHBLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3223

3223

WASHER 5/8IDX.063 TK

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3255

3255

CARR BLT 3/8-16 X 1

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5282

5282

BUSHING 1.90

$

$

Not available

5342

5342

SPACER

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

7992

7992

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10129

10129

5/16-18X1 FLANGED SCREW

$

$

Not available

10272

10272

3/8 FLANGE LOCK NUT

$

$

Not available

10630

10630

$

$

Not available

10631

10631

$

$

Not available

10634

10634

CASTER WLDT.

$

$

Not available

10646

10646

FRAME WLDT. B/B

$

$

Not available

10652

10652

CHANNEL SEAT MT.

$

$

Not available

10653

10653

FRONT PANEL

$

$

Not available

10654

10654

FOOT PLATE

$

$

Not available

10660

10660

SEAT PLATE

$

$

Not available

10671

10671

CHANNEL HYD TANK MT.

$

$

Not available

10692

10692

WLDT LIFT ARM LH

$

$

Not available

10695

10695

WLDT LIFT ARM RH

$

$

Not available

10698

10698

MT. MOTOR

$

$

Not available

10718

10718

MT. SWITCH

$

$

Not available

10719

10719

SPACER FRAME

$

$

Not available

10727

10727

SEAT ASM W/SLIDE

$

$

Not available

10737

10737

TRAILING ARM WLDT.

$

$

Not available

10752

10752

WLDT BELT TENSIONER

$

$

Not available

10763

10763

LINK LIFT HANDLE BLUE

$

$

Not available

10767

10767

RETAINING RING 5/8

$

$

Not available

10770

10770

BUSHING, CASTER

$

$

Not available

10772

10772

MUFFLER

$

$

Not available

10773

10773

OUTER QUADRANT(PLATED)

$

$

Not available

10775

10775

LIFT HANDLE WLDT.

$

$

Not available

10819

10819

DECAL BLACK BEAR

$

$

Not available

10848

10848

LIFT LATCH

$

$

Not available

10854

10854

FENDER SUPPORT

$

$

Not available

10860

10860

TANK SUPPORT KAW

$

$

Not available

10861

10861

REAR GUARD KAW

$

$

Not available

10894

10894

MUFFLER

$

$

Not available

10915

10915

DECAL

$

$

Not available

10916

10916

ANCHOR CLUTCH

$

$

Not available

10923

10923

BELT

$

$

Not available

10977

10977

FOOT PEDAL

$

$

Not available

12029

12029

SPRING

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12062

12062

CLEVIS PIN 2-1/2

$

$

Not available

12198

12198

3/8-16 X 3` HHB

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12358

12358

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

12429

12429

SPACER

$

$

Not available

12574

12574

ISO MOUNT

$

$

Not available

12605

12605

M8X1.25X20MM

$

$

Not available

13297

13297

HUB BEARING SPACER

$

$

Not available

13688

13688

$

$

Not available

13986

13986

CASTER WHEEL & TIRE ASM.

$

$

Not available

13992

13992

TUBE

$

$

Not available

14082

14082

DECAL, CAUTION

$

$

Not available

14083

14083

DECAL, DRIVE LEVERS

$

$

Not available

16026

16026

ELEC. CLUTCH

$

$

Not available

16374

16374

GRIP BRAKE HANDLE

$

$

Not available

17185

17185

WHEEL (REF.13985)

$

$

Not available

17186

17186

TIRE (REF.13985)

$

$

Not available

17351

17351

DRIVE PULLEY-ENGINE

$

$

Not available

17352

17352

CLEVIS FEMALE-RH

$

$

Not available

17365

17365

CLEVIS FEMALE-LH

$

$

Not available

17387

17387

LIFT SPRING

$

$

Not available

17388

17388

5/8-11 HEX JAM NUT

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17396

17396

CHAIN

$

$

Not available

17405

17405

WASHER PLATED

$

$

Not available

17561

17561

CORDURA SEAT CUSHION

$

$

Not available

17782

17782

TIE BAR

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

17985

17985

SEAT BACK

$

$

Not available

17989

17989

SEAT BOT.BRKT. LH

$

$

Not available

17990

17990

SEAT BOT.BRKT. RH

$

$

Not available

17991

17991

ARM REST BRACKET LH

$

$

Not available

17993

17993

SEAT BACK BRKT. LH

$

$

Not available

17994

17994

SEAT BACK BRKT. RH

$

$

Not available

17997

17997

ARMREST

$

$

Not available

18031

18031

1/2-13 X 7 CARR. BOLT

$

$

Not available

18148

18148

HITCH

$

$

Not available

18150

18150

SPRING BRKT.

$

$

Not available

18156

18156

BRAKE SWITCH

$

$

Not available

60257

60257

CAPSCREW HEXHEAD 1/2-13

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60444

60444

HH CAPSCREW 1/2-13X1-1/4

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$

Not available
