Black Bear ZTR 34 (968999619) - Dixon 34" Black Bear Zero-Turn Mower, Kawasaki (2008) PARKING BRAKE Parts Diagram

34" Black Bear Zero-Turn Mower, Kawasaki

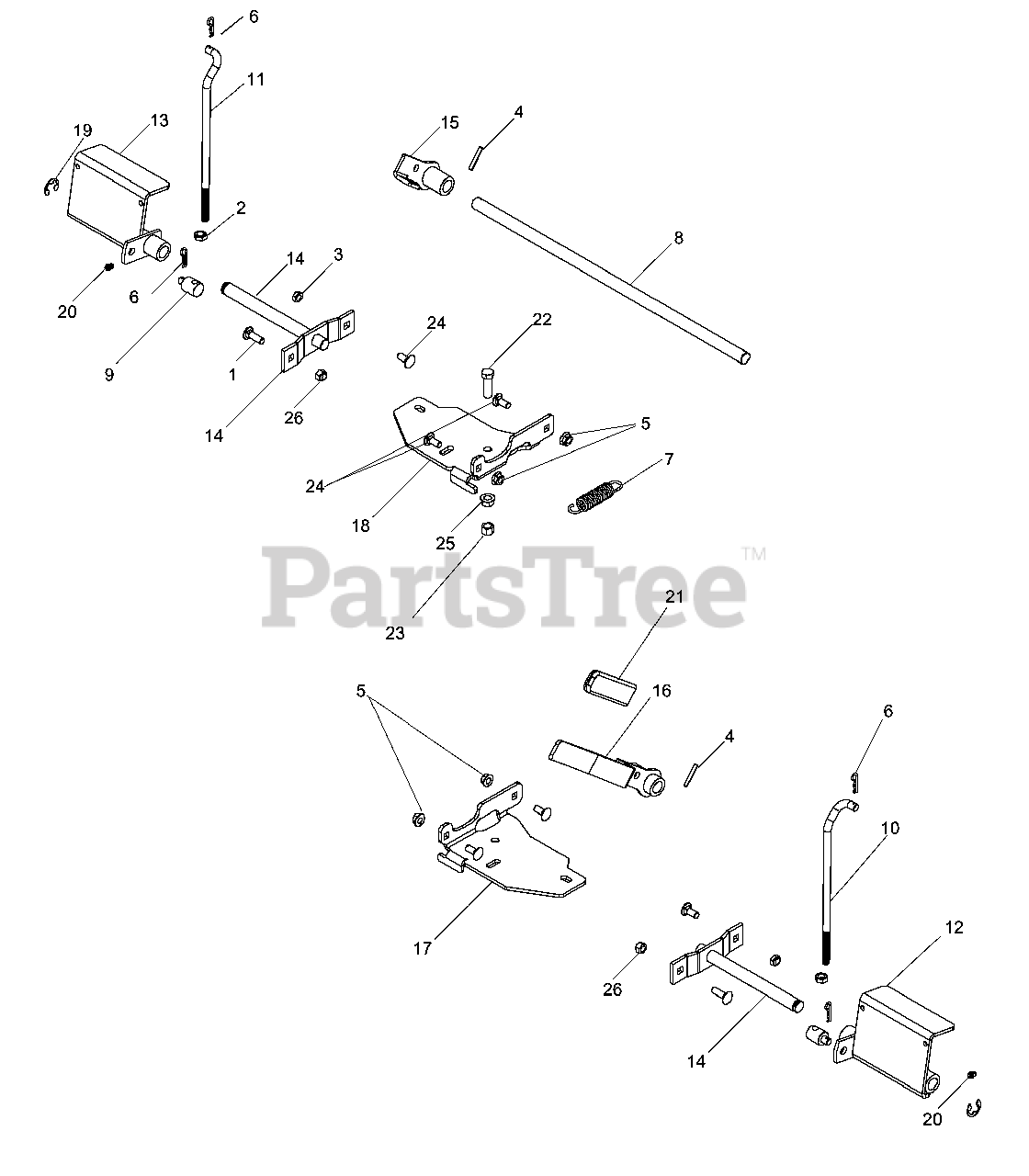

PARKING BRAKE Parts Diagram

  • Title
1

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

2

Dixon 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

3

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

4

Dixon 539115668

ROLL PIN 3/16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539115680

COTTER HP .08 DIA X 1.19

$

$

Not available

7

Dixon 539116350

SPRING - 3.50

$9.49

$

In Stock, only 1 left!

0

8

Dixon 539117477

SHAFT BRAKE

$40.99

$

Usually ships in 3-10 days

0

9

Dixon 539117478

SWIVEL BRAKE

$

$

Not available

10

Dixon 539117522

LH BRAKE LINK

$

$

Not available

11

Dixon 539117523

RH BRAKE LINK

$14.99

$

In Stock, only 3 left!

0

12

Dixon 539117531

WLDT. BRAKE SHOE LH

$84.99

$

Usually ships in 3-10 days

0

13

Dixon 539117532

WLDT. BRAKE SHOE RH

$84.99

$

Usually ships in 3-10 days

0

14

Dixon 539117536

WLDT BRAKE PIVOT

$78.99

$

Usually ships in 3-10 days

0

15

Dixon 539117823

BRAKE LINK DRILLED

$

$

Not available

16

Dixon 539117824

BRAKE HANDLE DRILLED

$36.99

$

Usually ships in 3-10 days

0

17

Dixon 539117853

BRKT. TANK MT. LH

$

$

Not available

18

Dixon 539117854

BRKT. TANK MT. RH

$17.99

$

Usually ships in 3-10 days

0

19

Dixon 539117898

RETAINING RING 5/8

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539118928

GREASE ZERK-1/4"

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539120921

GRIP BRAKE HANDLE

$13.99

$

Usually ships in 3-10 days

0

22

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

23

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
