Black Bear ZTR 34 (968999619) - Dixon 34" Black Bear Zero-Turn Mower, Kawasaki (2007) ELECTRICAL Parts Diagram

34" Black Bear Zero-Turn Mower, Kawasaki

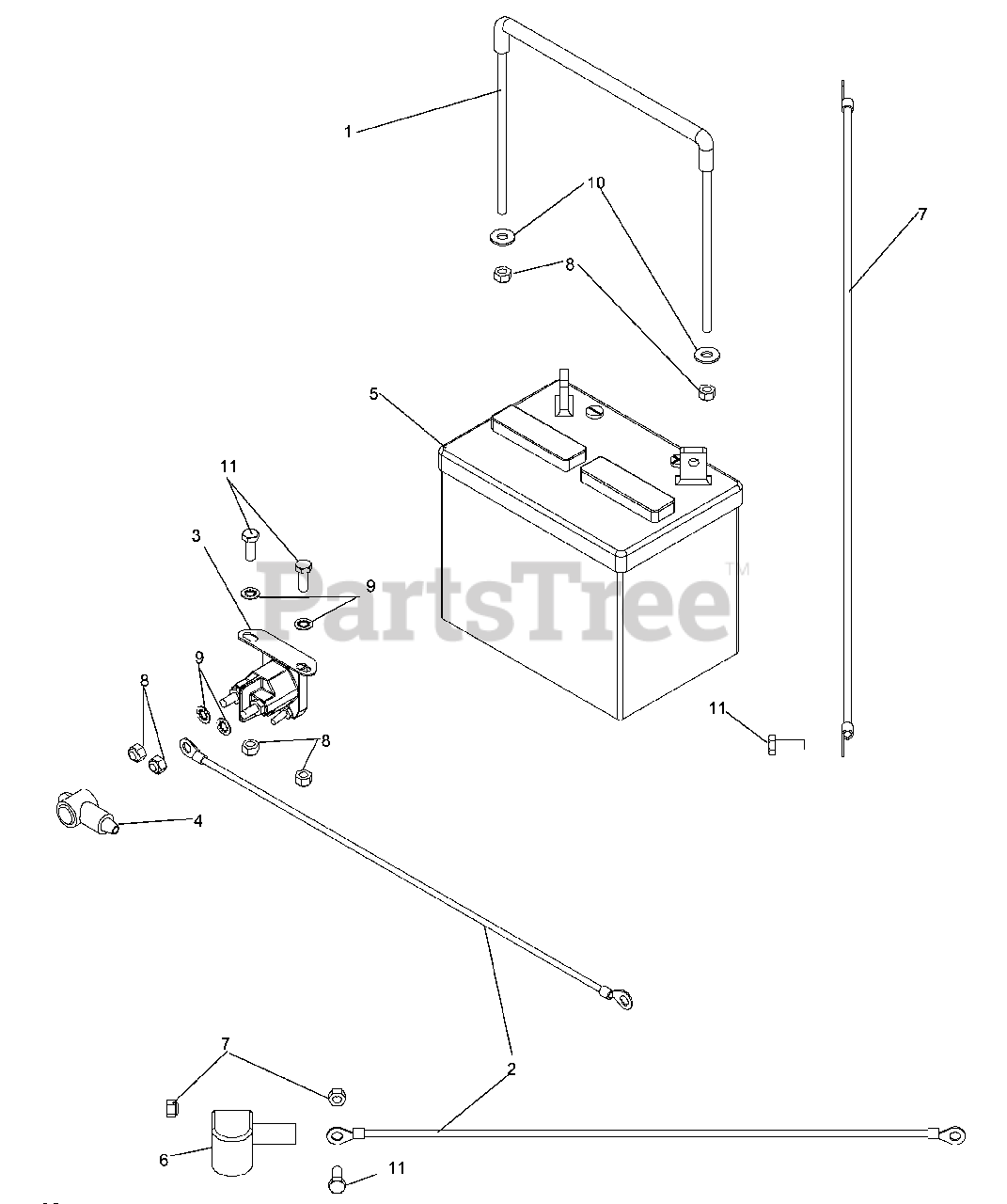

ELECTRICAL Parts Diagram

  • Title

1

Dixon 539115292

TIE DOWN W/INSULATOR

$

$

Not available

2

Dixon 539115364

SOL. TO STARTER CABLE

$8.99

$

Usually ships in 3-10 days

0

3

Dixon 539115774

SOLENOID

$31.99

$

Usually ships in 3-10 days

0

4

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539117423

12V BATTERY
(Superseded to 539115800)

$157.99

$

Usually ships in 3-10 days

0

6

Dixon 539121331

TERMINAL COVER

$1.99

$

Usually ships in 3-10 days

0

7

Dixon 539122754

BATTERY CABLE, NEG

$11.99

$

Usually ships in 3-10 days

0

8

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

10

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

11

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

Dixon 539117964

WIRE LOOM B/B

Note: NOT SHOWN

$

$

Not available

Dixon 539118006

WIRE LOOM ADAPTER KAW

Note: MODELS: 968999566, 968999619 NOT SHOWN

$72.99

$

Usually ships in 3-10 days

0

Dixon 539122997

WIRE HRNS/CHARGE-N-HOLD

Note: NOT SHOWN

$12.99

$

In Stock, only 1 left!

0
