Black Bear ZTR 34 (968999566) - Dixon 34" Black Bear Zero-Turn Mower, Kawasaki (2007) SEAT Parts Diagram

34" Black Bear Zero-Turn Mower, Kawasaki

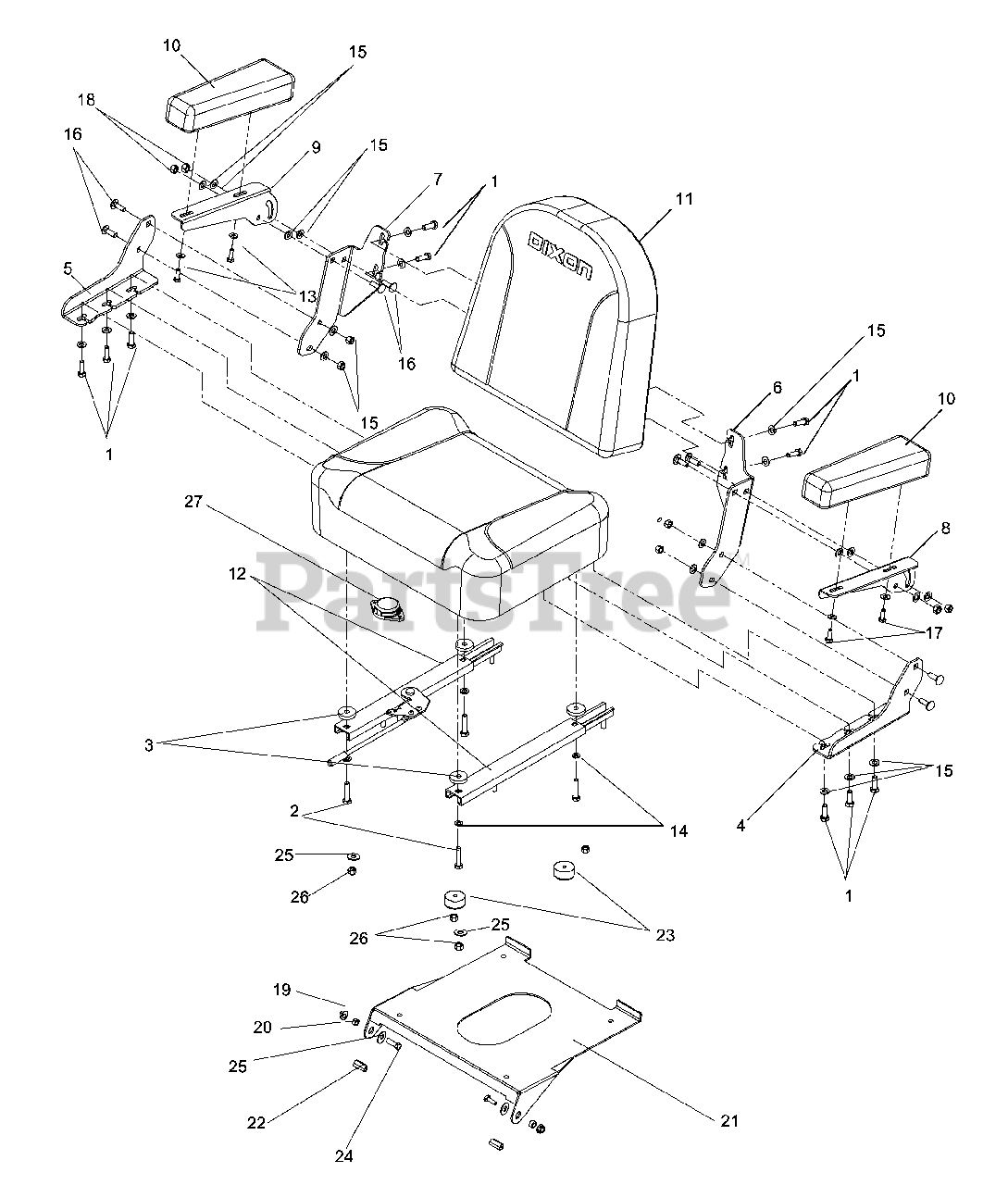

SEAT Parts Diagram

  • Title
1

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

2

Dixon 539115682

5/16-18X1-1/2 HHB GR5WNY

$4.99

$

Usually ships in 3-10 days

0

3

Dixon 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539118627

SEAT BOTTOM BRKT LH

$72.99

$

Usually ships in 3-10 days

0

5

Dixon 539118628

SEAT BOTTOM BRKT RH

$78.99

$

Usually ships in 3-10 days

0

6

Dixon 539118629

SEAT BACK BRKT LH

$35.99

$

Usually ships in 3-10 days

0

7

Dixon 539118630

SEAT BACK BRKT RH

$35.99

$

Usually ships in 3-10 days

0

8

Dixon 539121713

ARM REST BRACKET LH

$

$

Not available

9

Dixon 539121714

ARM REST BRACKET RH

$

$

Not available

10

Dixon 539121719

ARMREST

$

$

Not available

11

Dixon 539122380

SEAT BACK

$

$

Not available

12

Dixon 539128796

SEAT SLIDE (SET)

$46.99

$

Usually ships in 3-10 days

0

13

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

14

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

15

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

20

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539117806

SEAT PLATE

$

$

Not available

22

Dixon 539118102

CLIP-1.06

$7.49

$

Usually ships in 3-10 days

0

23

Dixon 539119102

ISO MOUNT

$1.99

$

Usually ships in 3-10 days

0

24

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

25

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539117398

SEAT SWITCH MILSCO

$34.99

$

Usually ships in 3-10 days

0
