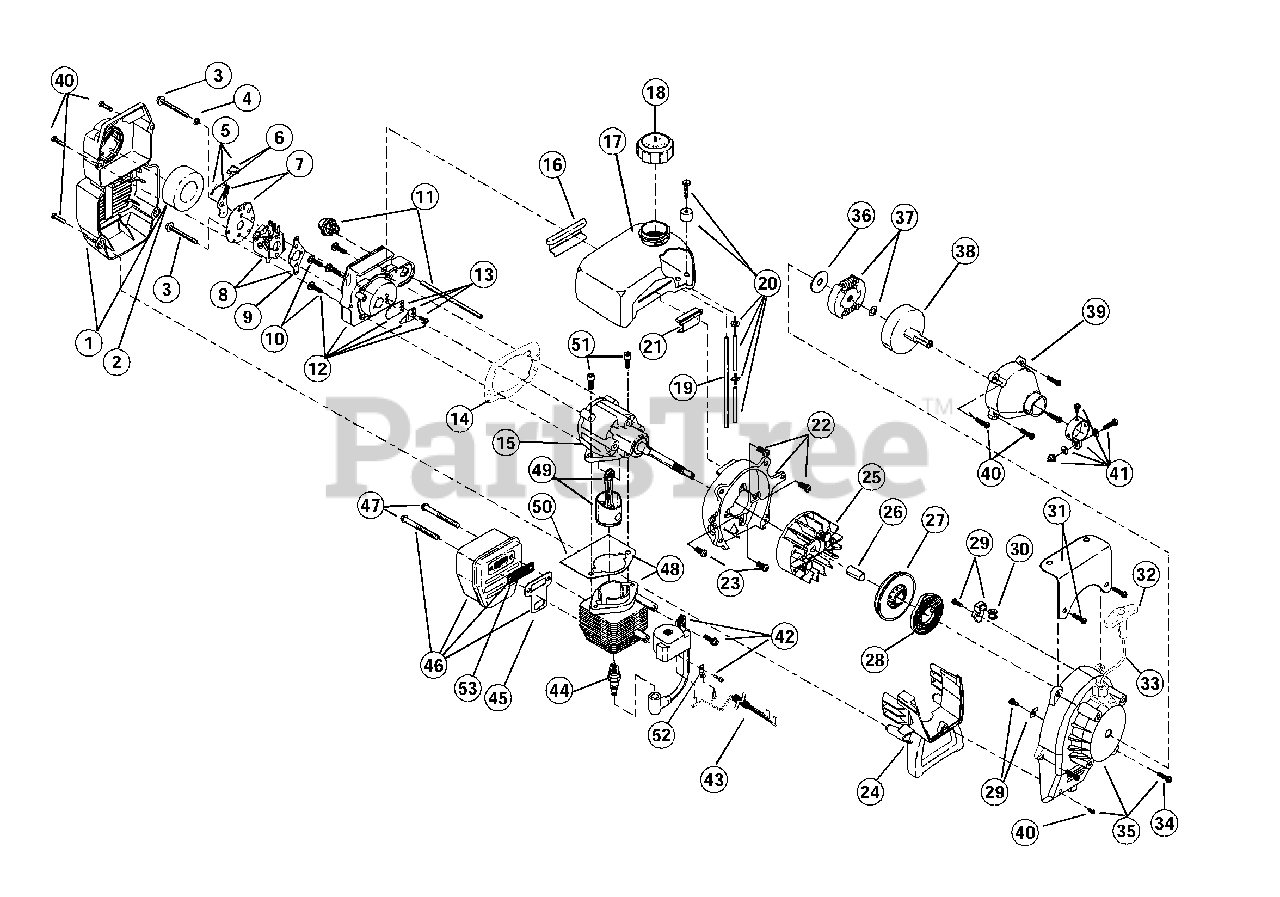

BL 410 (21BK410G163) - Bolens Tiller (2003) Engine Parts Parts Diagram

Tiller

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 40)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182160

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$

$

Not available

6

MTD 791-182161

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

7

MTD 791-182162

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-182607

Primer and Hose Assembly

$20.99

$

In Stock, only 1 left!

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04369

Crank Case Service Assembly

Note: (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04306

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-683065

Shroud Assembly

Note: (includes 23)

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

26

MTD 791-181065

Spacer

$

$

Not available

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

29

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

30

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-180317

Fuel Tank Guard Assembly

$

$

Not available

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

33

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

34

MTD 791-181912

Screw

$6.99

$

Usually ships in 3-6 days

0

35

MTD 753-04238

Starter Housing Assembly

Note: (includes 27-30, 32-34 & 40)

$

$

Not available

36

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

37

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

38

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

39

MTD 791-180098

Clutch Cover Assembly

Note: (includes 40)

$35.99

$

Usually ships in 3-6 days

0

40

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

41

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

42

MTD 753-04337

Module Assembly

$

$

Not available

43

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

44

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 3 left!

0

45

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

46

MTD 791-182174

Muffler Assembly

Note: (includes 45, 47 & 53)

$88.99

$

Usually ships in 3-6 days

0

47

MTD 791-182464

Muffler Mounting Bolt Assembly
(Superseded to 791-147575)

$

$

Not available

48

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 50 & 51)

$83.99

$

In Stock, only 1 left!

0

49

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

50

MTD 753-1197

Cylinder Gasket

$

$

Not available

51

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

52

MTD 791-611063

Ground Tab

$

$

Not available

53

MTD 791-182747

Spark Arrestor

$

$

Not available

MTD 753-04134

Engine Gasket Kit

Note: Not Shown

$

$

Not available

MTD 791-180090

O.E.M. Carburetor Repair Kit

Note: Not Shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket-Diaphragm Repair Kit

Note: Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04359

Short Block Assembly

Note: (includes 15, 44, 48-51); Not Shown

$

$

Not available

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0
