BL 410 (21B-121R765) - Bolens Tiller (2005) Engine Parts Parts Diagram

Tiller

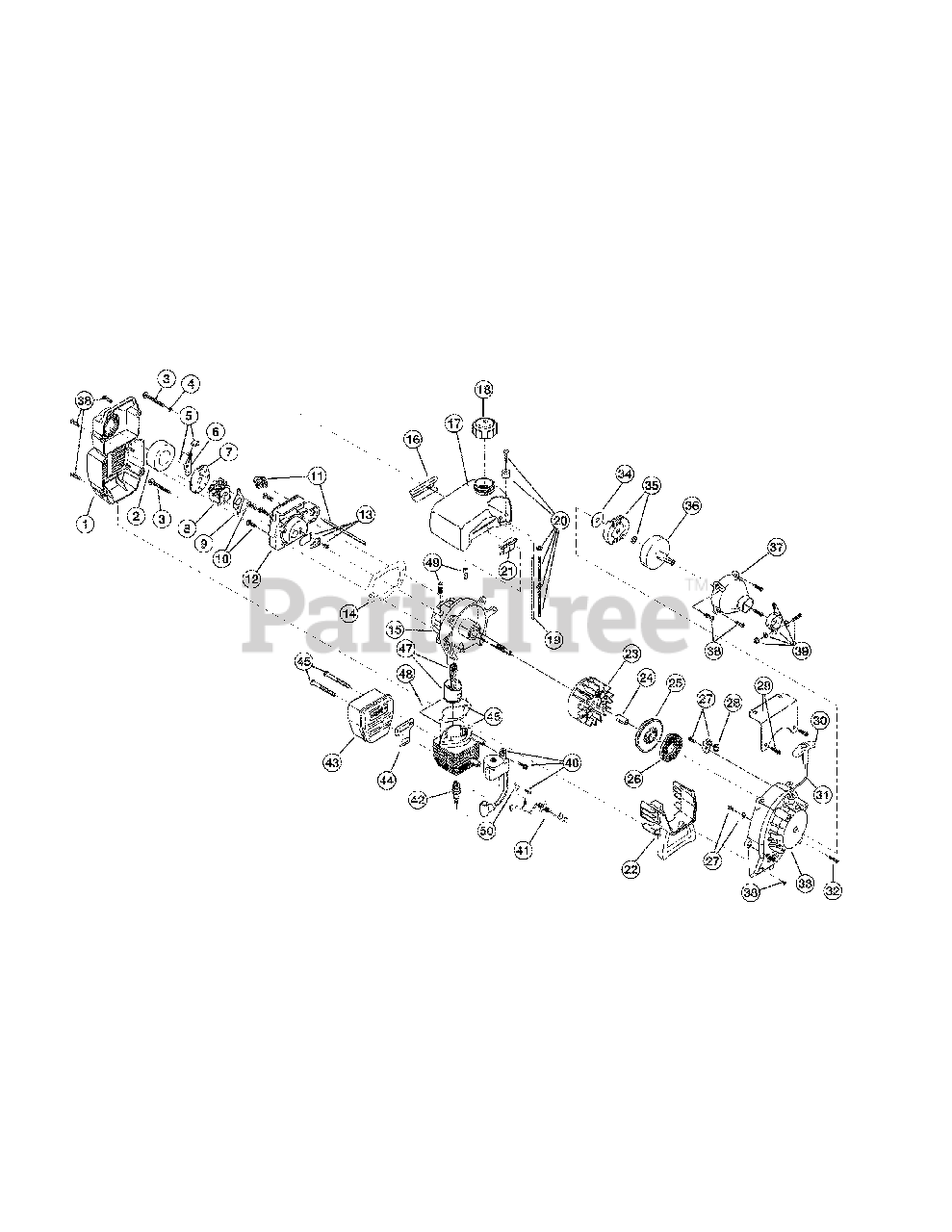

Engine Parts Parts Diagram

  • Title
1

MTD 753-04511

Air Cleaner Assembly (includes 2 & 38)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182202

Choke Knob & Screw

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever & Plate (includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 17

0

12

MTD 753-1196

Carb Mount Assembly (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04922

Crank Case Service Assembly (includes 10)

$75.99

$

Usually ships in 3-6 days

0

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04306

Fuel Tank Assembly (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 10

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04611

Shroud Extension and Stand (includes 38)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

$

$

Not available

25

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

28

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

29

MTD 791-180317

Fuel Tank Guard Assembly

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

31

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-181912

Housing Screw

$6.99

$

Usually ships in 3-6 days

0

33

MTD 753-04238

Starter Housing Assembly (includes items 25-28, 30-32 & 38)

$

$

Not available

34

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

35

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 6

0

36

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

37

MTD 791-180098

Clutch Cover Assembly (includes 38)

$35.99

$

Usually ships in 3-6 days

0

38

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, Qty 20+

0

39

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

40

MTD 753-04337

Module Assembly (includes 50)

$

$

Not available

41

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

42

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

43

MTD 753-04926

Muffler Assembly (includes item 44 & 45)

$101.99

$

Usually ships in 3-6 days

0

44

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

45

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

46

MTD 753-04814

Cylinder Assembly (includes items 48 & 49)

$83.99

$

In Stock, only 1 left!

0

47

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

48

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

49

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

50

MTD 791-611063

Ground Tab

$

$

Not available

MTD 753-1209

Piston Ring (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04925

Spark Arrestor (NOT SHOWN)

$

$

Not available

MTD 753-04986

Short Block Assembly(items 10, 15, 42 & 46-49) (NOT SHOWN)

$204.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2) (NOT SHOWN)

$11.99

$

Usually ships in 3-6 days

0
