BL 410 (21A-121R965) - Bolens Tiller (2008) Engine Assembly Parts Diagram

Tiller

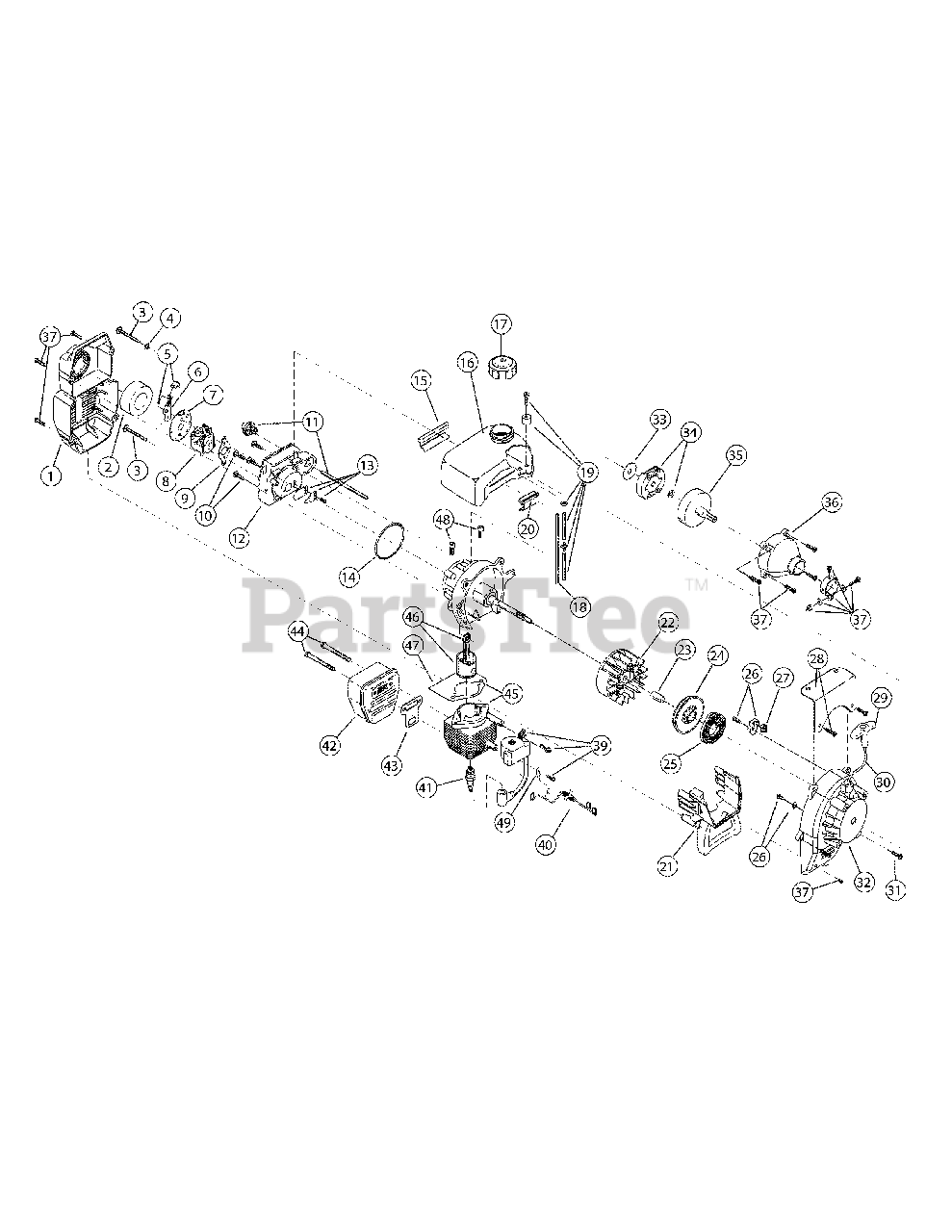

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Assembly

Note: (includes 2 & 37)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182202

Choke Knob & Screw

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly

Note: (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever & Plate

Note: (includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (includes 9 & 19)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-05487

Carburetor Mount Gasket
(Superseded to 721-04163)

$3.99

$

In Stock, Qty 7

0

15

MTD 791-612134

Rear Mounting Pad

$

$

Not available

16

MTD 753-04306

Fuel Tank Assembly

Note: (includes 17-20)

$

$

Not available

17

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

18

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

19

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

20

MTD 791-145308

Front Mounting Pad

$

$

Not available

21

MTD 753-04611

Shroud Extension and Stand

Note: (includes 37)

$

$

Not available

22

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

23

MTD 791-181065

Spacer

$

$

Not available

24

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

25

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

26

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-180317

Fuel Tank Guard Assembly

Note: (includes 31)

$

$

Not available

29

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

30

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-181912

Housing Screw

$6.99

$

Usually ships in 3-6 days

0

32

MTD 753-04238

Starter Housing Assembly

Note: (includes items 24-27, 29-31 & 37)

$

$

Not available

33

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

34

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

35

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

MTD 791-180098

Clutch Cover Assembly

Note: (includes 37)

$35.99

$

Usually ships in 3-6 days

0

37

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, only 4 left!

0

38

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

39

MTD 753-04337

Module Assembly

Note: (includes 49)

$

$

Not available

40

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

41

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

42

MTD 753-04926

Muffler Assembly

Note: (includes item 43, 44 & Spark Arrestor)

$101.99

$

Usually ships in 3-6 days

0

43

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

44

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

45

MTD 753-04814

Cylinder Assembly

Note: (includes items 47 & 48)

$83.99

$

In Stock, only 1 left!

0

46

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

47

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

48

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

49

MTD 791-611063

Ground Tab

$

$

Not available

MTD 753-1209

Piston Ring

Note: not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04986

Short Block Assembly

Note: not shown (items 10, 22, 23, 39, 41 & 45-49 & Crankcase)

$204.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs

Note: not shown

$11.99

$

Usually ships in 3-6 days

0
