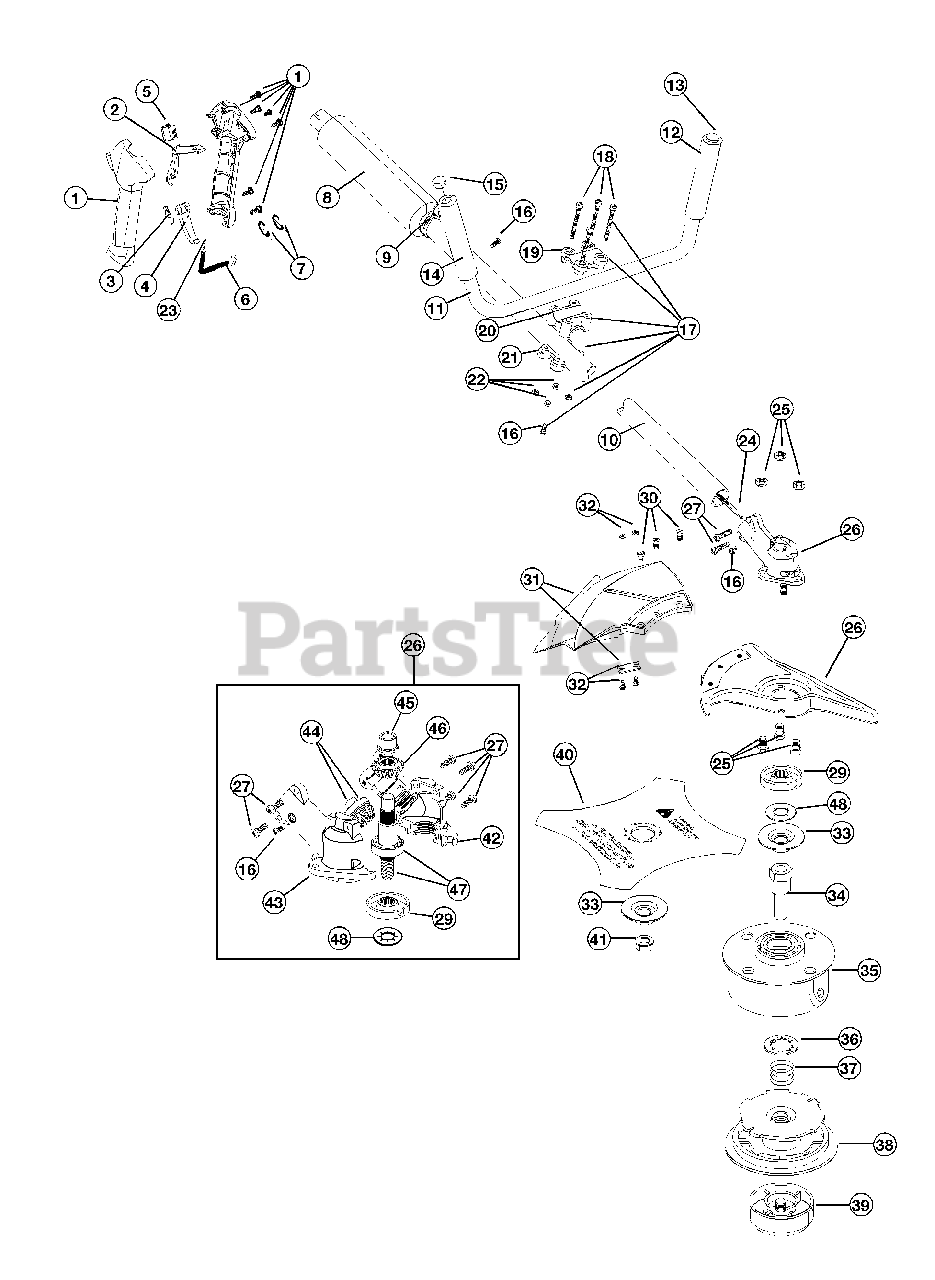

BL 250 (41CD250G163) - Bolens String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-00040

Throttle Housing & Trigger Assm
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-00041

Throttle Trigger Lock-Out

$

$

Not available

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-00042

Throttle Trigger
(Superseded to 753-06754)

$7.49

$

In Stock, only 1 left!

0

5

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

6

MTD 791-180863

Wire Cover 1ft

$

$

Not available

7

MTD 791-147346

Wire Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-180858

Foam Grip & Cover

$

$

Not available

9

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

10

MTD 753-04469

Upper Drive Shaft Housing

$

$

Not available

11

MTD 753-04103

Bullhorn Handle Assembly

Note: (includes 12-16)

$

$

Not available

12

MTD 791-612831

Grip

$12.99

$

Usually ships in 3-6 days

0

13

MTD 791-612021

Plug
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

14

MTD 753-04096

Adapter
(Superseded to 792-10029)

$5.49

$

Usually ships in 3-6 days

0

15

MTD 753-04097

Cap

$

$

Not available

16

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

17

MTD 791-683295

Handle Bracket Assembly

Note: (includes 16 & 18-22)

$45.99

$

Usually ships in 3-6 days

0

18

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

19

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

20

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

21

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

22

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

23

MTD 791-182816

Throttle Cable

$

$

Not available

24

MTD 791-181817

Flexible Drive Shaft

$70.99

$

Usually ships in 3-6 days

0

25

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

26

MTD 791-182193

2 Piece Gearbox Assembly

Note: (includes 16, 25, 27 & 29)

$99.99

$

In Stock, only 2 left!

0

27

MTD 791-182195

Gear Box Screw

$7.49

$

In Stock, Qty 20+

0

28

MTD 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

29

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

30

MTD 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

31

MTD 7911-683299

Shield and Blade Assembly

Note: (includes 32)

$

$

Currently unavailable

32

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

33

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

34

MTD 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

35

MTD 791-683301

Outer Spool & Eyelet Assembly

$48.99

$

In Stock, Qty 6

0

36

MTD 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

37

MTD 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

38

MTD 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

39

MTD 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

40

MTD 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 3 left!

0

41

MTD 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

MTD 791-160196

Shoulder Harness

Note: Not Shown

$

$

Not available

42

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

43

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

44

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 26

$31.99

$

Usually ships in 3-6 days

0

45

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

46

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

47

MTD 791-182197

Output Shaft Assembly

Note: (includes 45 & 46); 2 Piece Gearbox Assembly Parts - Item 26

$

$

Not available

48

MTD 753-04348

Palnut

Note: 2 Piece Gearbox Assembly Parts - Item 26

$6.99

$

In Stock, only 3 left!

0

MTD 791-180014B

Blade Retaining Kit

Note: (includes 33 & 41); 2 Piece Gearbox Assembly Parts - Item 26; Not Shown

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

Locking Rod Tool

Note: 2 Piece Gearbox Assembly Parts - Item 26; Not Shown

$14.99

$

In Stock, only 1 left!

0

MTD 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: Optional Accessory; Not Shown

$31.99

$

In Stock, only 1 left!

0

MTD 791-147345B

Reel and Line Assembly

Note: Not Shown

$31.99

$

Usually ships in 3-6 days

0

MTD 791-147498B

Bump Head Assembly
(Superseded to 791-147498)

Note: (includes 34-39); Not Shown

$117.99

$

In Stock, only 1 left!
