BL 250 (41AD25G-065) - Bolens String Trimmer Engine Parts Diagram

String Trimmer

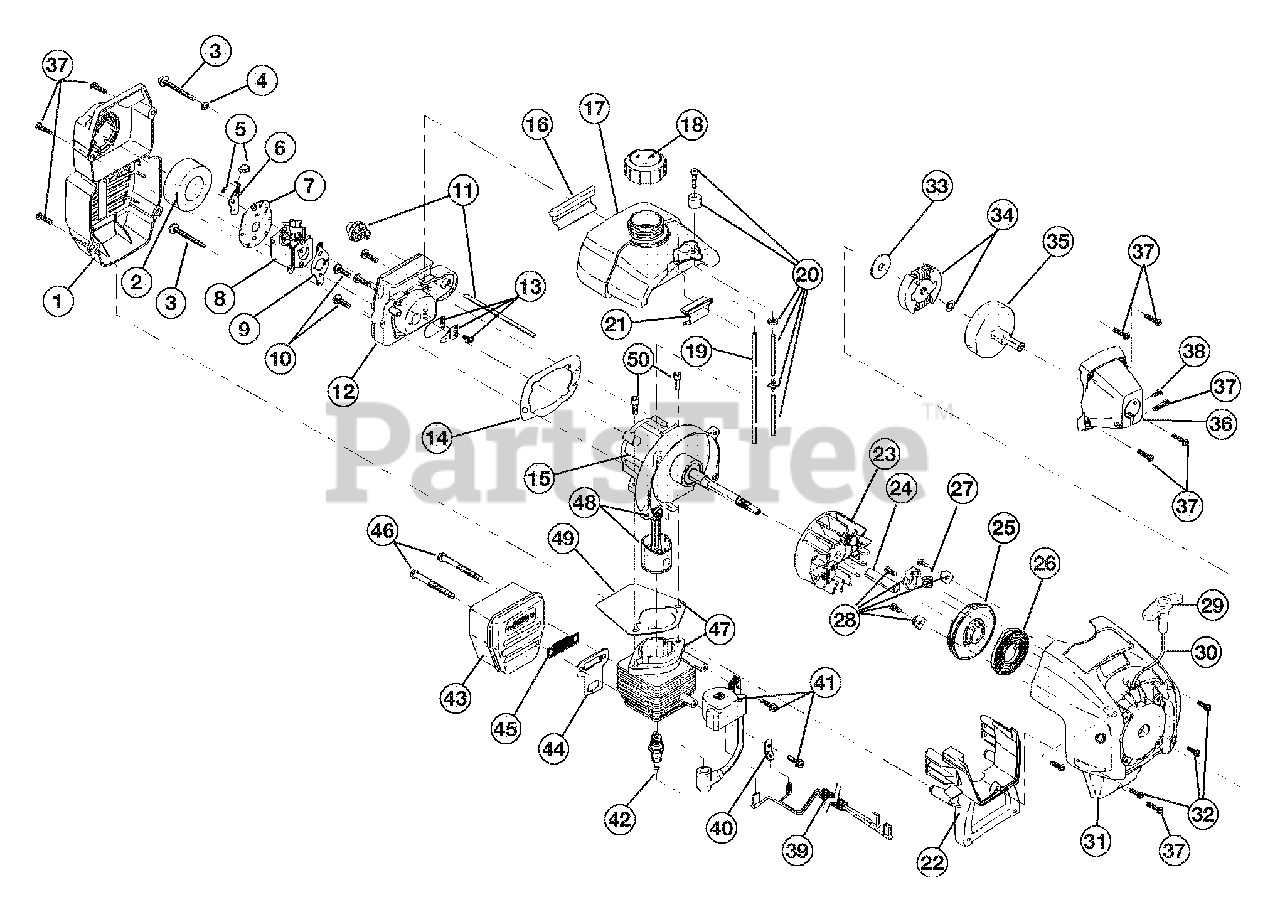

Engine Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 37)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182202

Choke Knob and Screw

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly

Note: (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever and Plate

Note: (includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 17

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04470

Crank Case Service Assembly

Note: (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04311

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 10

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04702

Shroud Extension and Stand

$29.99

$

Usually ships in 3-6 days

0

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-181065

Spacer

$

$

Not available

25

MTD 753-04744

Recoil Pulley Assembly

$

$

Currently unavailable

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

29

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

30

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

31

MTD 753-04253

Starter Housing Assembly
(Superseded to 753-04485)

Note: (includes 25-30, 32 & 37)

$

$

Not available

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

34

MTD 791-181445

Clutch Rotor Assembly

Note: (includes 33)

$46.99

$

Usually ships in 3-6 days

0

35

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

MTD 791-182797

Clutch Cover Assembly
(Superseded to 753-04889)

Note: (includes 37 & 38)

$21.99

$

Usually ships in 3-6 days

0

37

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

39

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

40

MTD 791-611063

Ground Tab

$

$

Not available

41

MTD 753-04337

Module Assembly

Note: (includes 40)

$

$

Not available

42

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 2 left!

0

43

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 44-46)

$112.99

$

Usually ships in 3-6 days

0

44

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

45

MTD 791-182747

Spark Arrestor

$

$

Not available

46

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

47

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 49 & 50)

$83.99

$

In Stock, only 1 left!

0

48

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

49

MTD 753-1197

Cylinder Gasket

$

$

Not available

50

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

MTD 753-04134

Engine Gasket Kit

Note: Not Shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04397

Short Block Assembly

Note: (includes 10, 15, 42, 47-50); Not Shown

$

$

Not available

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0
