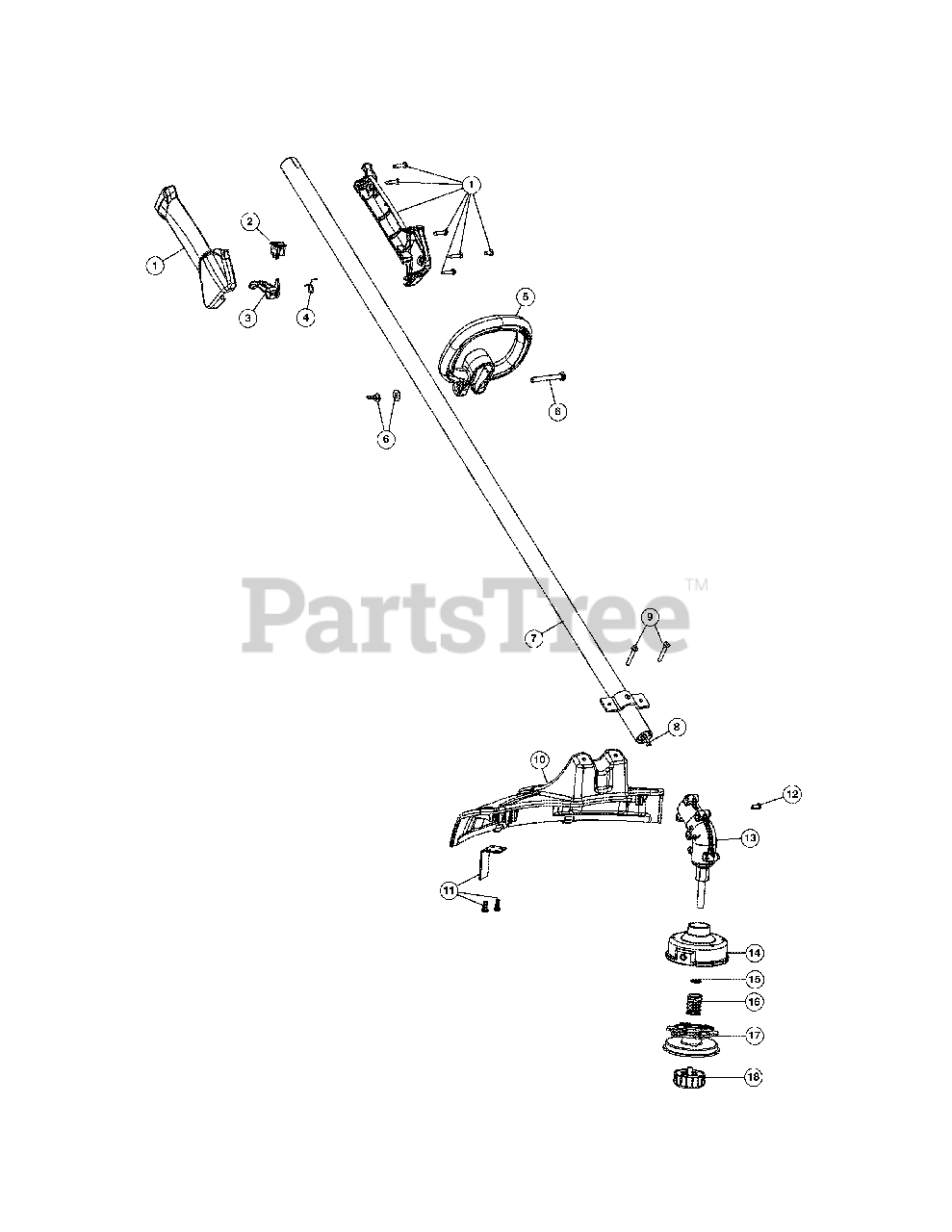

BL 160 (41BD160G965) - Bolens String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-06198

D-Handle (includes 6)

$4.99

$

Usually ships in 3-6 days

0

6

MTD 753-06199

D-Handle Hardware Assembly

$2.49

$

Usually ships in 3-6 days

0

7

MTD 753-06228

Drive Shaft Housing Assembly (includes 8)

$41.99

$

In Stock, only 1 left!

0

8

MTD 753-04117

Flexible Drive Shaft

$64.99

$

Usually ships in 3-6 days

0

9

MTD 753-06125

Shield Mounting Screw

$6.99

$

In Stock, only 4 left!

0

10

MTD 753-06123

Shield Assembly (includes 9 & 11)

$20.99

$

In Stock, Qty 10

0

11

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

12

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

13

MTD 753-06165

Gearbox Assembly (includes 14-18)

$50.99

$

In Stock, only 1 left!

0

14

MTD 753-04284

Outer Spool Assembly (includes 15)

$28.99

$

In Stock, only 1 left!

0

15

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

16

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

17

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

18

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Cartridge, Dual .080" LINE

Note: Not shown

$28.99

$

In Stock, only 2 left!

0

MTD 953-1156

Spool Assembly ,Reel W/.095 LINE

Note: Not shown

$31.99

$

In Stock, only 1 left!

0
