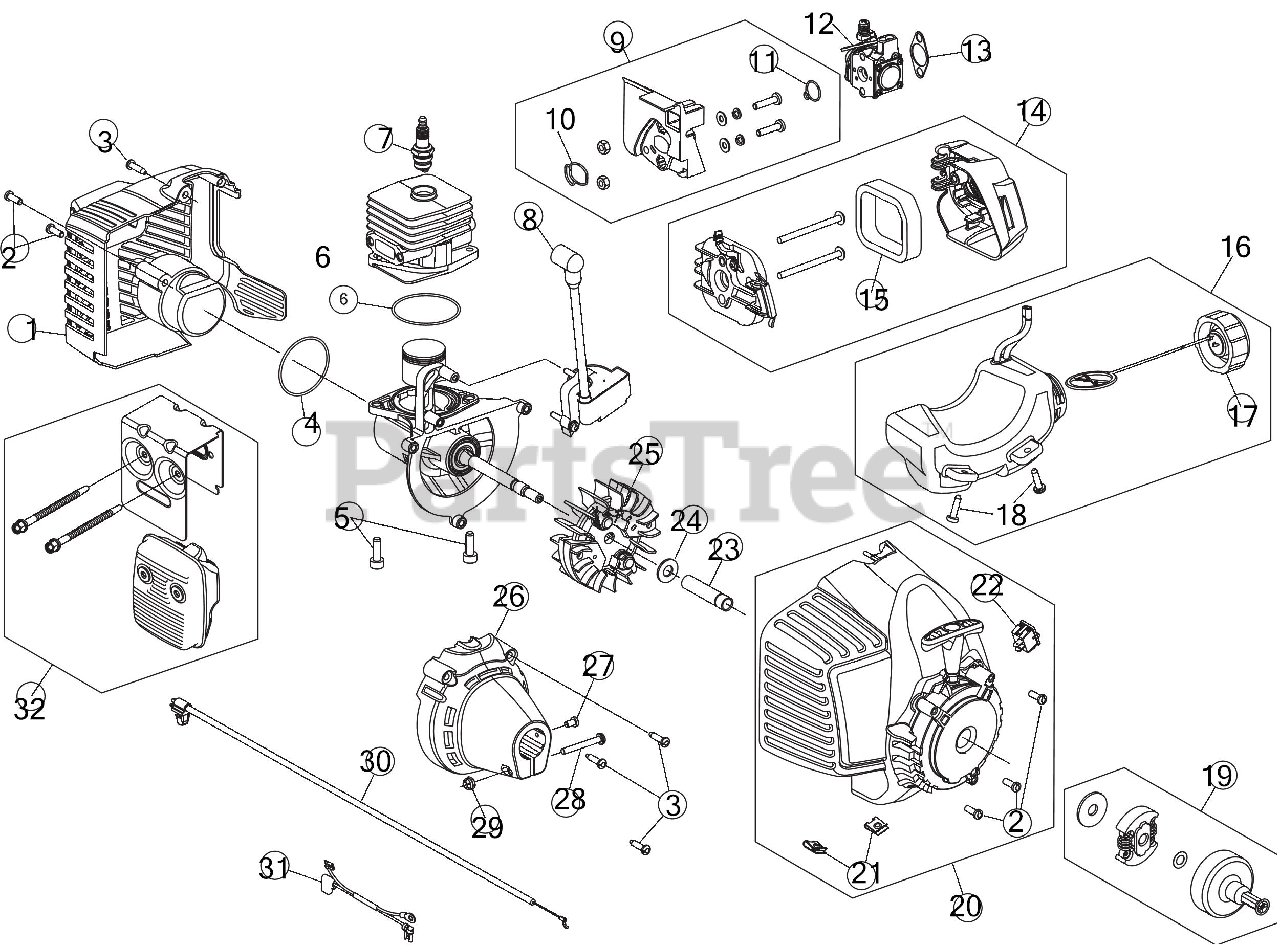

BL 160 (41AD170G965) - Bolens String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

MTD 753-08347

SHORTBLOCK

Note: (includes Crankcase, Cylinder, Piston, 4-8 & 23-25)

$99.99

$

Usually ships in 3-6 days

0

1

MTD 753-06919

ENGINE COVER RR

Note: (includes 2 & 3)

$4.99

$

In Stock, only 2 left!

0

2

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

4

MTD 753-06174

O-RING

$2.99

$

In Stock, Qty 20+

0

5

MTD 791-182723

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 13

0

6

MTD 753-06275

O-RING

$2.99

$

In Stock, Qty 13

0

7

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

8

MTD 753-06420

MODULE ASSEMBLY RFI

$28.99

$

In Stock, only 3 left!

0

9

MTD 753-06189

INTAKE ASSEMBLY

Note: (includes 10 & 11)

$7.99

$

In Stock, only 1 left!

0

10

MTD 753-06184

O-RING

$3.49

$

In Stock, only 1 left!

0

11

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

12

MTD 753-06423

CARB ASSEMBLY
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

13

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

14

MTD 753-06415

AIRCLEANER COVER ASSEMBLY

Note: (includes 15)

$10.99

$

In Stock, only 3 left!

0

15

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

16

MTD 753-06183

FUEL TANK ASSEMBLY

Note: (includes 17 & 18)

$13.99

$

In Stock, Qty 20+

0

17

MTD 791-182612

FUEL CAP ASSEMBLY

$20.99

$

In Stock, Qty 9

0

18

MTD 791-181930

SCREW 10-6 x .75

$6.99

$

In Stock, only 1 left!

0

19

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 10

0

20

MTD 753-08550

STARTER HOUSING ASSEMBLY

Note: (includes 2, 21 & 22)

$19.99

$

In Stock, Qty 10

0

21

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

22

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

23

MTD 753-06218

SPACER

$2.99

$

In Stock, only 1 left!

0

24

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, only 1 left!

0

25

MTD 753-06175

FLYWHEEL ASSEMBLY

$19.99

$

In Stock, only 2 left!

0

26

MTD 753-06181

CLUTCH COVER

Note: (includes 3)

$3.99

$

Usually ships in 3-6 days

0

27

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 5

0

28

MTD 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

29

MTD 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

30

MTD 746-05231

THROTTLE CABLE

$4.99

$

In Stock, only 4 left!

0

31

MTD 794-00127

LEAD WIRES
(Superseded to 794-00127A)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 753-06418

MUFFLER ASSEMBLY
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0
