BL 150 (41BD150G965) - Bolens String Trimmer General Assembly BL150 Parts Diagram

String Trimmer

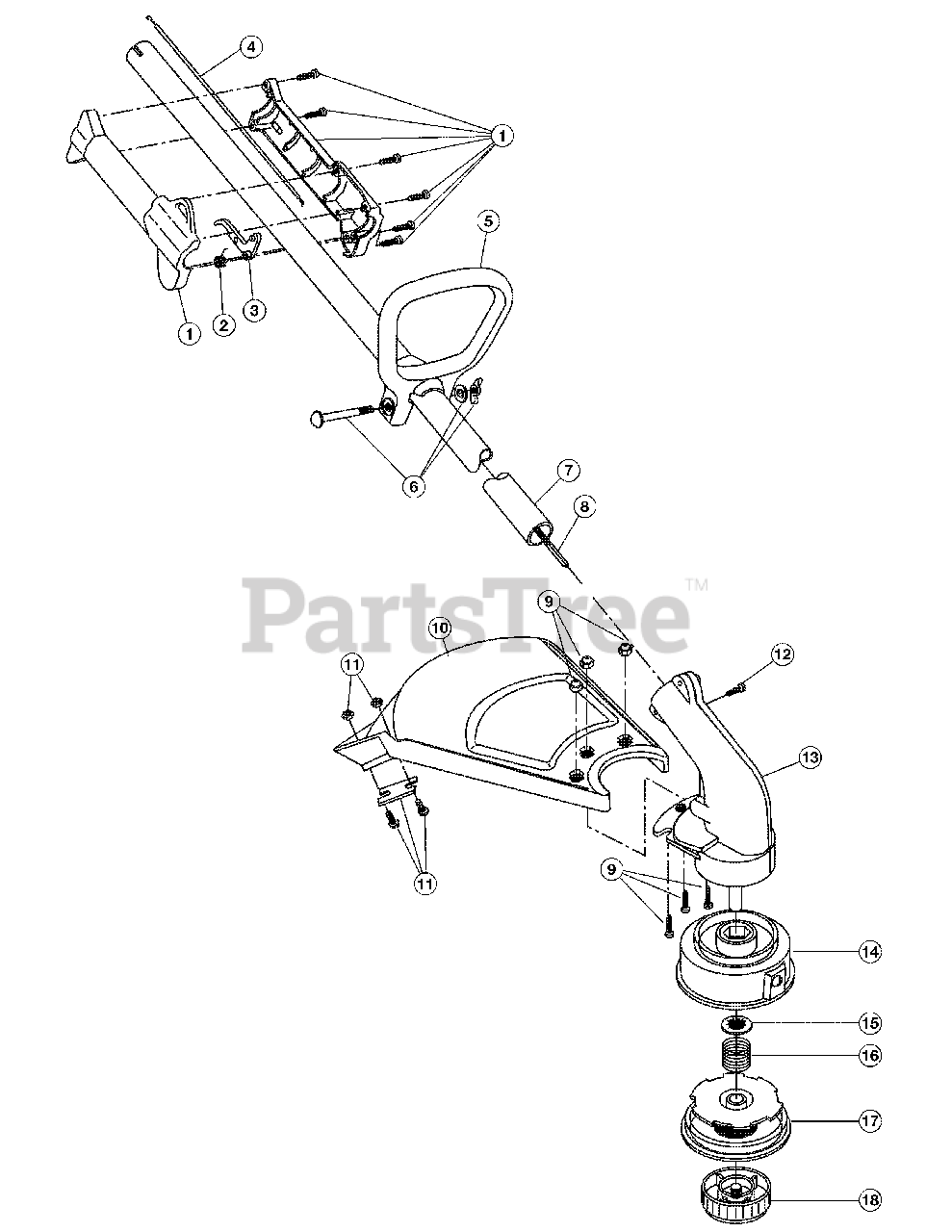

General Assembly BL150 Parts Diagram

  • Title

1

MTD 753-04927

Throttle Housing Assembly

Note: (Incl. Ref. No. 2-3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-181807

Throttle Trigger

$9.99

$

In Stock, Qty 5

0

4

MTD 753-04901

Throttle Cable

$8.99

$

In Stock, only 1 left!

0

5

MTD 791-153064

D-Handle

$

$

Not available

6

MTD 791-153317

D-Handle Hardware Assembly
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-04330

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04251

Flexible Drive Shaft Assembly

$67.99

$

Usually ships in 3-6 days

0

9

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

10

MTD 791-180548

Guard Assembly

Note: (Incl. Ref. No. 11)

$

$

Not available

11

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

12

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

MTD 791-180549

Gearbox Assembly

Note: (Incl. Ref. 14 & 15)

$

$

Not available

14

MTD 791-153619

Out Spool Assembly

$27.99

$

Usually ships in 3-6 days

0

15

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

16

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

17

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 6

0

18

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Spool & Line Assembly

Note: (0.080)(2.03mm)

$28.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap

$38.99

$

Usually ships in 3-6 days

0
