BL 150 (41AD150G965) - Bolens String Trimmer Boom & Trimmer BL150 Parts Diagram

String Trimmer

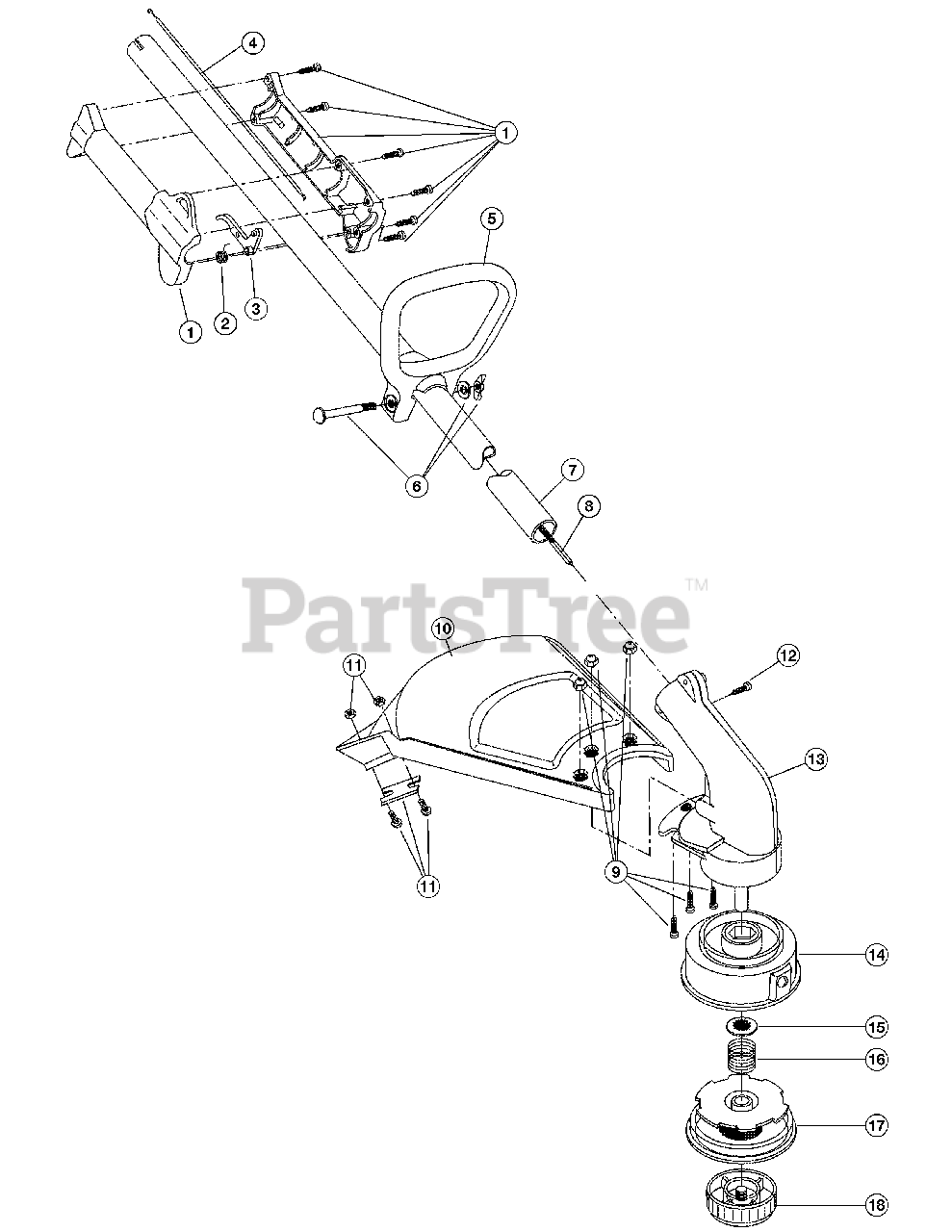

Boom & Trimmer BL150 Parts Diagram

  • Title

1

MTD 753-04927

Throttle Housing Assembly (Includes 2-3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

MTD 753-04901

Throttle Cable

$8.99

$

In Stock, only 1 left!

0

5

MTD 791-153064

D-Handle (includes 6)

$

$

Not available

6

MTD 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-04330

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-05211

Flexible Drive Shaft

$38.99

$

Usually ships in 3-6 days

0

9

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

10

MTD 791-180548

Guard Assembly (includes 11)

$

$

Not available

11

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

12

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

MTD 753-05185

Gearbox Assembly (includes 14-18)

$

$

Not available

14

MTD 791-153619

Outer Spool and Eyelet Assembly (includes 15)

$27.99

$

Usually ships in 3-6 days

0

15

MTD 791-610660

Retainer (10 pack)

$4.99

$

In Stock, Qty 20+

0

16

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

17

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

18

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 791-153577

Spool and Line (25 ft.) Assembly (Optional Accessory)
(Superseded to 791-153577B)

Note: Not Shown

$28.99

$

In Stock, only 2 left!

0
