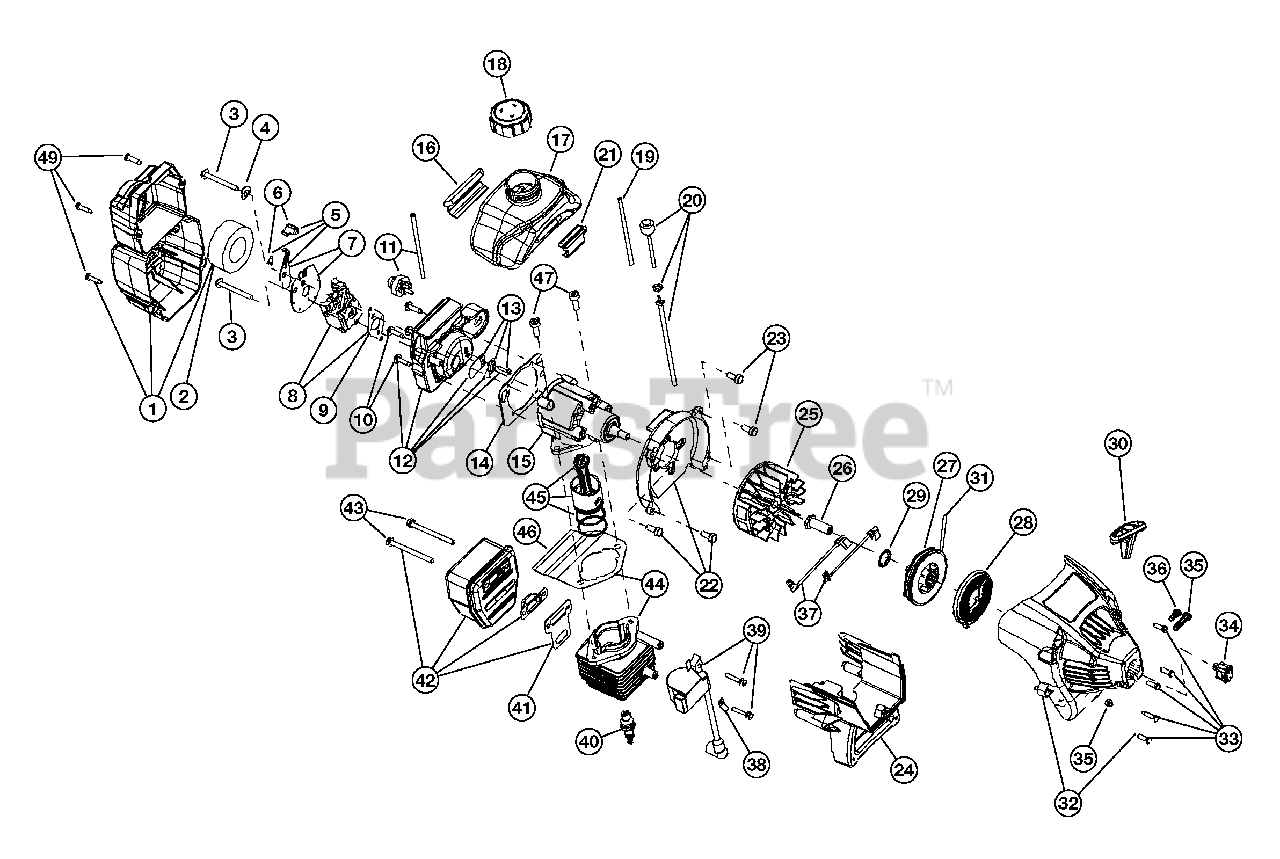

BL 150 (41AD150G763) - Bolens String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 49)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182160

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$

$

Not available

6

MTD 791-182161

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

7

MTD 791-182162

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 3-6)

$

$

Not available

8

MTD 753-04106

Carburetor Assembly

Note: (includes 9 & 20)

$69.99

$

In Stock, only 1 left!

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04272

Crank Case Service Assembly

Note: (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04285

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

Note: (includes 23)

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

26

MTD 791-610303

Spacer

$

$

Not available

27

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

28

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

29

MTD 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 753-04289

Starter Housing Assembly
(Superseded to 753-05422)

Note: (includes 27-34, 37)

$88.99

$

Usually ships in 3-6 days

0

33

MTD 791-181501

Housing Screws

$10.99

$

Usually ships in 3-6 days

0

34

MTD 791-182405

On/Off Switch

$10.99

$

In Stock, Qty 12

0

35

MTD 753-04291

Clamping Screw & Nut

$

$

Not available

36

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

37

MTD 753-04290

Wire Leads

$

$

Not available

38

MTD 791-182800

Ground Tab
(Superseded to 791-611063)

$

$

Not available

39

MTD 753-1205

Module Assembly

$103.99

$

Usually ships in 3-6 days

0

40

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 3 left!

0

41

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

42

MTD 753-04110

Muffler Assembly

Note: (includes 41, 43 & 48)

$

$

Not available

43

MTD 791-147575

Muffler Mounting Bolt

$

$

Not available

44

MTD 753-04111

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 46)

$83.99

$

In Stock, only 1 left!

0

45

MTD 753-1207

Piston and Rod Assembly w/Rings
(Superseded to 753-04367)

$

$

Not available

46

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

47

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

48

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

49

MTD 791-181345

Cover Screws

$4.49

$

In Stock, only 4 left!

0

MTD 753-04183

Engine Gasket Kit
(Superseded to 753-04134)

Note: Not Shown

$

$

Not available

MTD 791-180090

O.E.M. Carburetor Repair Kit

Note: Not Shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit

Note: Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04146

Short Block Assembly

Note: (includes 10, 15, 23, 40, 44-47); Not Shown

$

$

Not available
