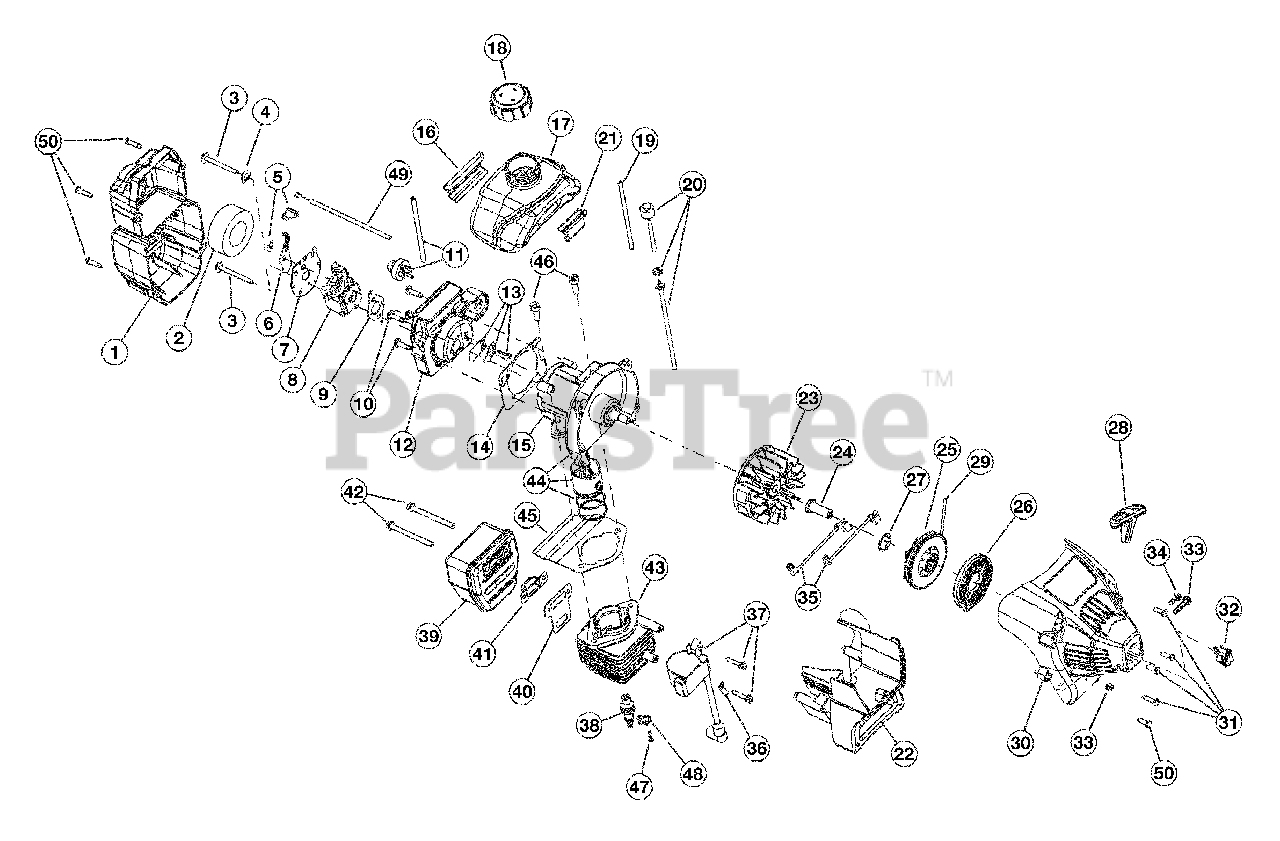

BL 150 (41AD150G065) - Bolens String Trimmer (2004) Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04505

Air Cleaner/Muffler Cover Assembly includes 2 & 47)
(Superseded to 753-04511)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351B

Carburetor Mounting Screws

$

$

Currently unavailable

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 753-04419

Choke Knob and Screw

$

$

Not available

6

MTD 791-182160

Choke Lever Assembly (includes 5)
(Superseded to 753-04418)

$

$

Not available

7

MTD 753-04488

Choke Lever and Plate (includes 6)

$

$

Currently unavailable

8

MTD 753-04408

Carburetor Assembly (includes 9 & 20)

$71.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 17

0

12

MTD 753-1196

Carb Mount Assembly (includes 10 & 13-14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04321

Crank Case Service Assembly includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04285

Fuel Tank Assembly (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 10

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04409

Shroud Extension and Stand
(Superseded to 753-05091)

$19.99

$

Usually ships in 3-6 days

0

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-610303

Spacer

$

$

Not available

25

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

26

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

27

MTD 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

28

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

29

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

30

MTD 753-04289

Starter Housing Assembly (includes 25-29, 31, 32 & 35)
(Superseded to 753-05422)

$88.99

$

Usually ships in 3-6 days

0

31

MTD 791-181501

Housing Screws

$10.99

$

Usually ships in 3-6 days

0

32

MTD 791-182405

On/Off Switch

$10.99

$

In Stock, Qty 12

0

33

MTD 753-04291

Clamping Screw & Nut

$

$

Not available

34

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

35

MTD 753-04290

Wire Leads

$

$

Not available

36

MTD 791-611063

Ground Tab

$

$

Not available

37

MTD 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

38

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

39

MTD 791-182066

Muffler Assembly (includes 40-42)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

40

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 3 left!

0

41

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

42

MTD 791-147575

Muffler Mounting Bolt

$

$

Not available

43

MTD 753-04506

Cylinder Assembly (includes 45-48)
(Superseded to 753-04902)

$

$

Not available

44

MTD 753-04367

Piston and Rod Assembly w/Rings

$

$

Not available

45

MTD 753-1197

Cylinder Gasket

$

$

Not available

46

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

47

MTD 753-04411

Compression Relief Valve
(Superseded to 753-04902)

$

$

Not available

48

MTD 753-04412

Compression Relief Valve Spring
(Superseded to 753-04902)

$

$

Not available

49

MTD 753-04413

Compression Relief Valve Cable

$

$

Not available

50

MTD 791-181345

Cover Screws

$4.49

$

In Stock, Qty 20+

0

MTD 753-04134

Engine Gasket Kit Item Not Shown

$

$

Not available

MTD 791-180090

O.E.M. Carburetor Repair Kit Item Not Shown

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit Item Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set Item Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04507

Short Block Assembly (includes 15, 38, 43 & 44) Item Not Shown
(Superseded to 753-04713)

$

$

Not available
