BL 150 (41AD150G065) - Bolens String Trimmer (2004) Boom & Trimmer Parts Parts Diagram

String Trimmer

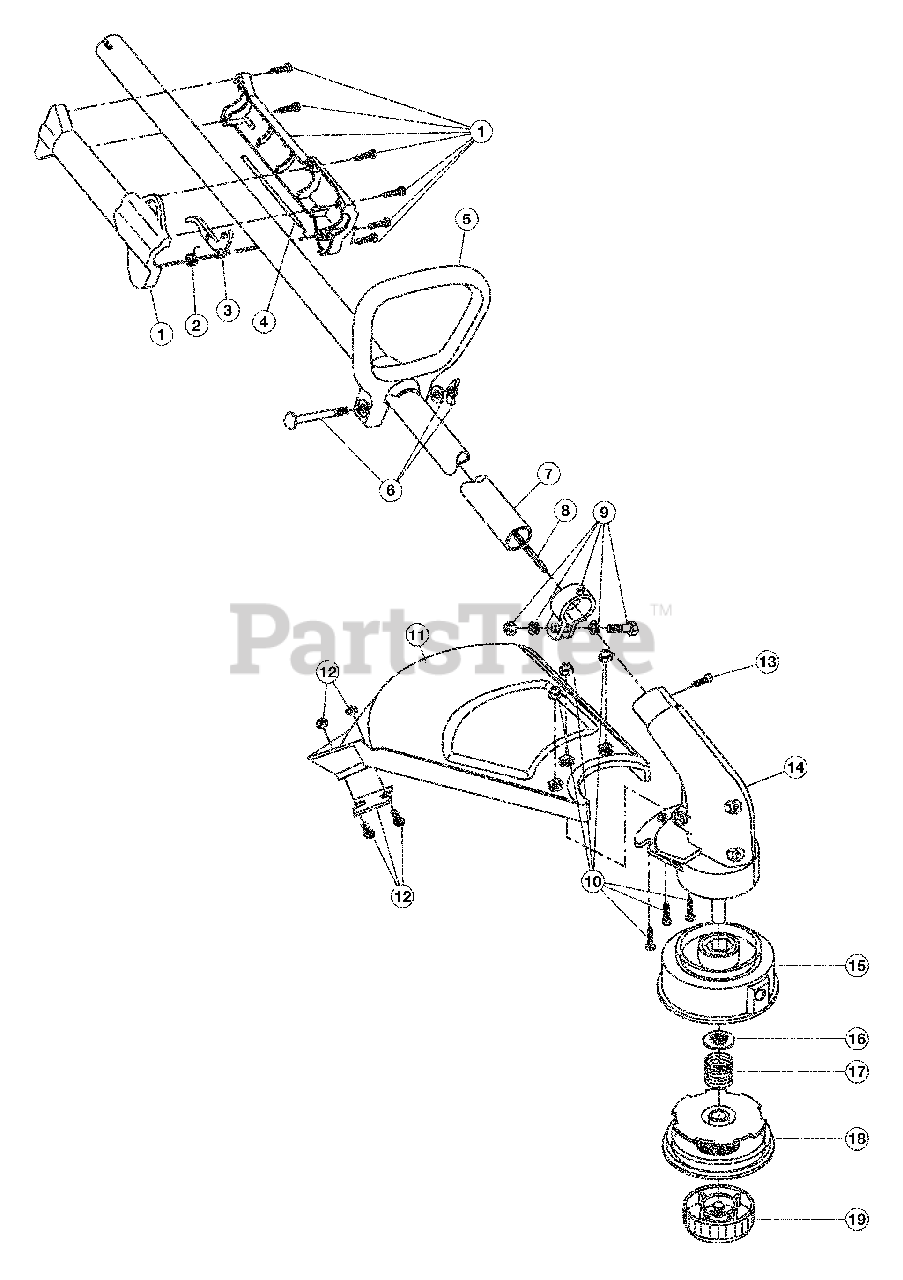

Boom & Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04279

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.99

$

In Stock, Qty 7

0

4

MTD 791-182068

Throttle Cable

$20.99

$

In Stock, only 2 left!

0

5

MTD 791-153064

D-Handle

Note: (includes 6)

$

$

Not available

6

MTD 791-153317

D-Handle Hardware Assembly
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-04330

Drive Shaft Housing Assembly

$

$

Not available

8

MTD 753-04251

Flexible Drive Shaft

$67.99

$

Usually ships in 3-6 days

0

9

MTD 791-153597

Lower Clamp Assembly

Note: (includes 13)

$

$

Not available

10

MTD 791-180547

Guard Mounting Screw Assembly

$

$

Not available

11

MTD 791-180548

Guard Assembly

Note: (includes 12)

$

$

Not available

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

13

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

14

MTD 791-180549

Gearbox Assembly

Note: (includes 15 & 16)

$

$

Not available

15

MTD 791-153619

Outer Spool and Eyelet Assembly

$27.99

$

Usually ships in 3-6 days

0

16

MTD 791-610660

Retainer (10 pack)

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

20

MTD 753-04363

Retainer
(Superseded to 716-04024)

$4.49

$

Usually ships in 3-6 days

0

MTD 791-153577B

Spool and Line (25 ft.) Assembly

Note: Optional Accessory; Item Not Shown

$28.99

$

In Stock, only 2 left!

0
