BL 110 (41DD110G965) - Bolens String Trimmer General Assembly Parts Diagram

String Trimmer

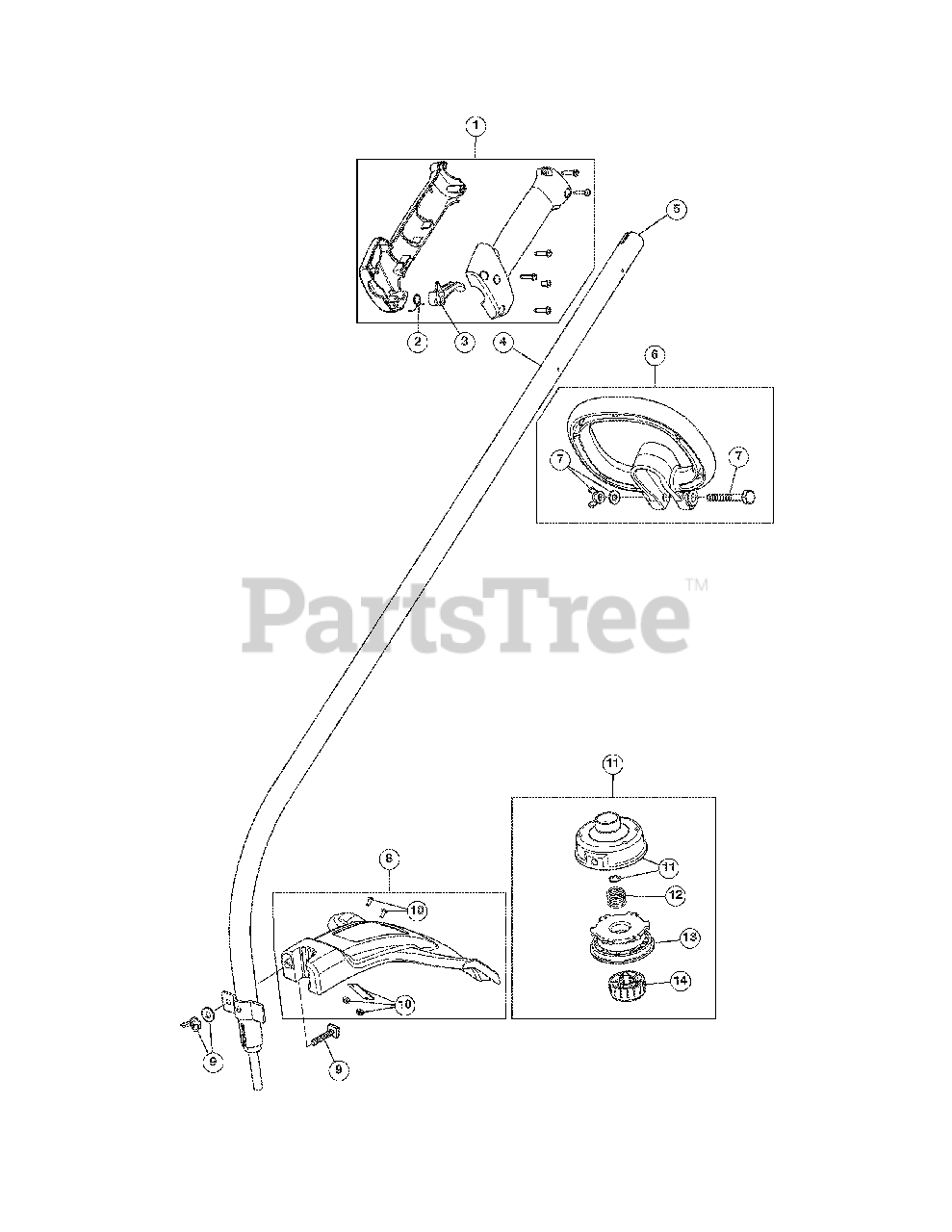

General Assembly Parts Diagram

  • Title

1

MTD 753-08543

Throttle Housing Assembly (Incl. 2 & 3)

$5.49

$

In Stock, only 2 left!

0

2

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

3

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 18

0

4

MTD 753-08551

Drive Shaft Housing Assembly (Incl. 5)

$26.99

$

Usually ships in 3-6 days

0

5

MTD 753-06065

Flexible Drive Shaft

$13.99

$

In Stock, only 3 left!

0

6

MTD 753-06198

D-Handle Assembly (Incl. 7)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 753-06199

D-Handle Hardware

$2.49

$

Usually ships in 3-6 days

0

8

MTD 753-06200

Shield Assembly (Incl. 9 & 10)

$23.99

$

In Stock, only 1 left!

0

9

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

10

MTD 753-05033

Blade Assembly

$9.99

$

Usually ships in 3-6 days

0

11

MTD 753-04284

Outer Spool Assembly (with Retainer)

$28.99

$

In Stock, only 2 left!

0

12

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

13

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

14

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 953-1156

Reel & Line Assembly

Note: (not shown)

$31.99

$

In Stock, only 1 left!

0
